Beam clamp SSP 6-21, FT M6
Item no. 1486232 | EAN 4012196342112
- Product description
-
Product description

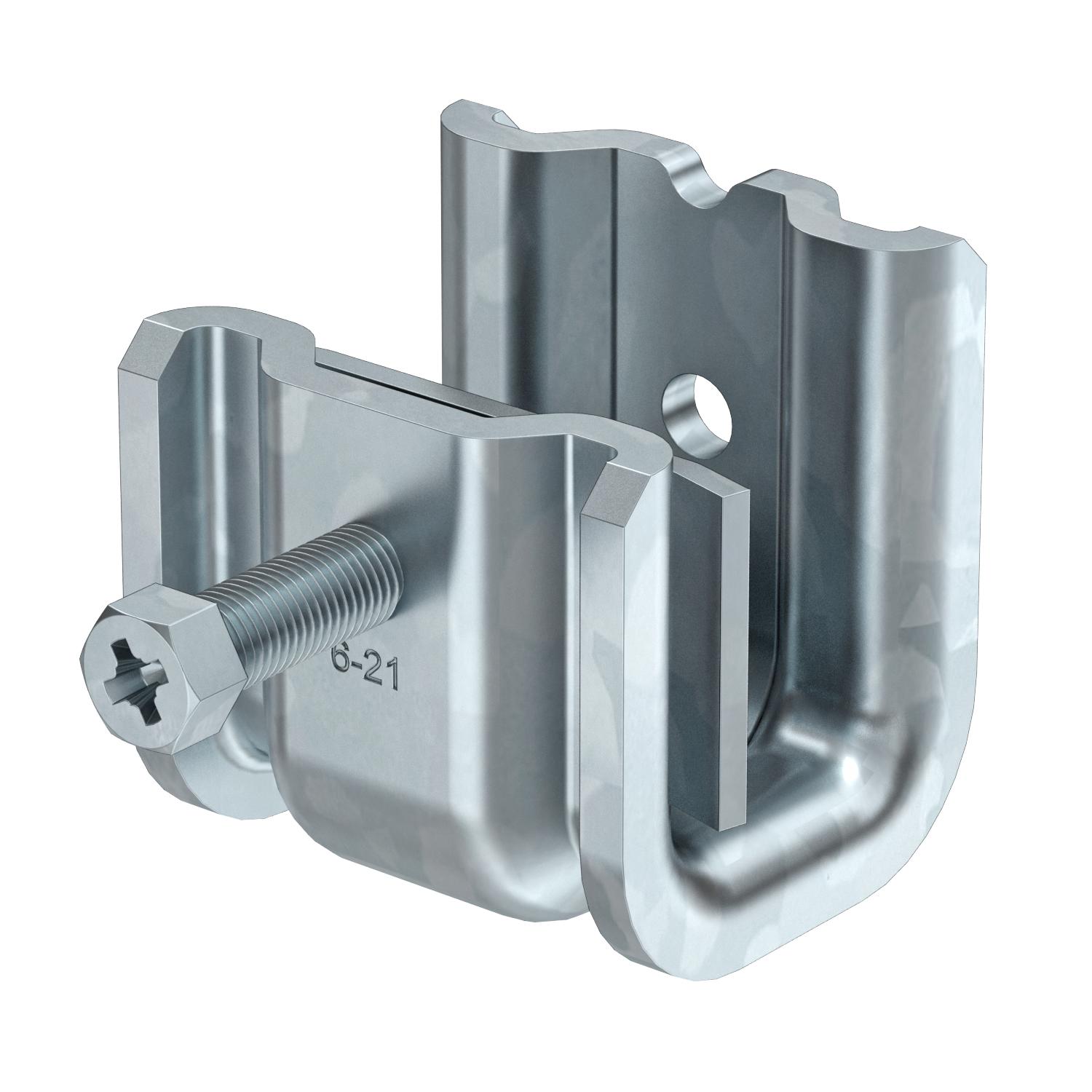

This type of beam clamp is pushed onto the support and fixed to the girder or flat iron using a pressure trough and bolt (M8). The hexagonal bolt has a WAF of 10 mm. In the clip element, two additional M6 threads are also incorporated, to fix threaded rods, for example.
-
- Technical data
-
Technical data
Breaking load F1 1,75 kN Breaking load F2 1,5 kN Connection type/component Thread Dimension 6-21mm Fastening type Clamp Flange thickness F max. 21 mm Flange thickness F min. 6 mm Hinge, adjustable no Hinged no Material Steel Suitable for metric threaded rod 6 Surface Hot-dip galvanised Thread M8 Thread metric 8 Dimensions

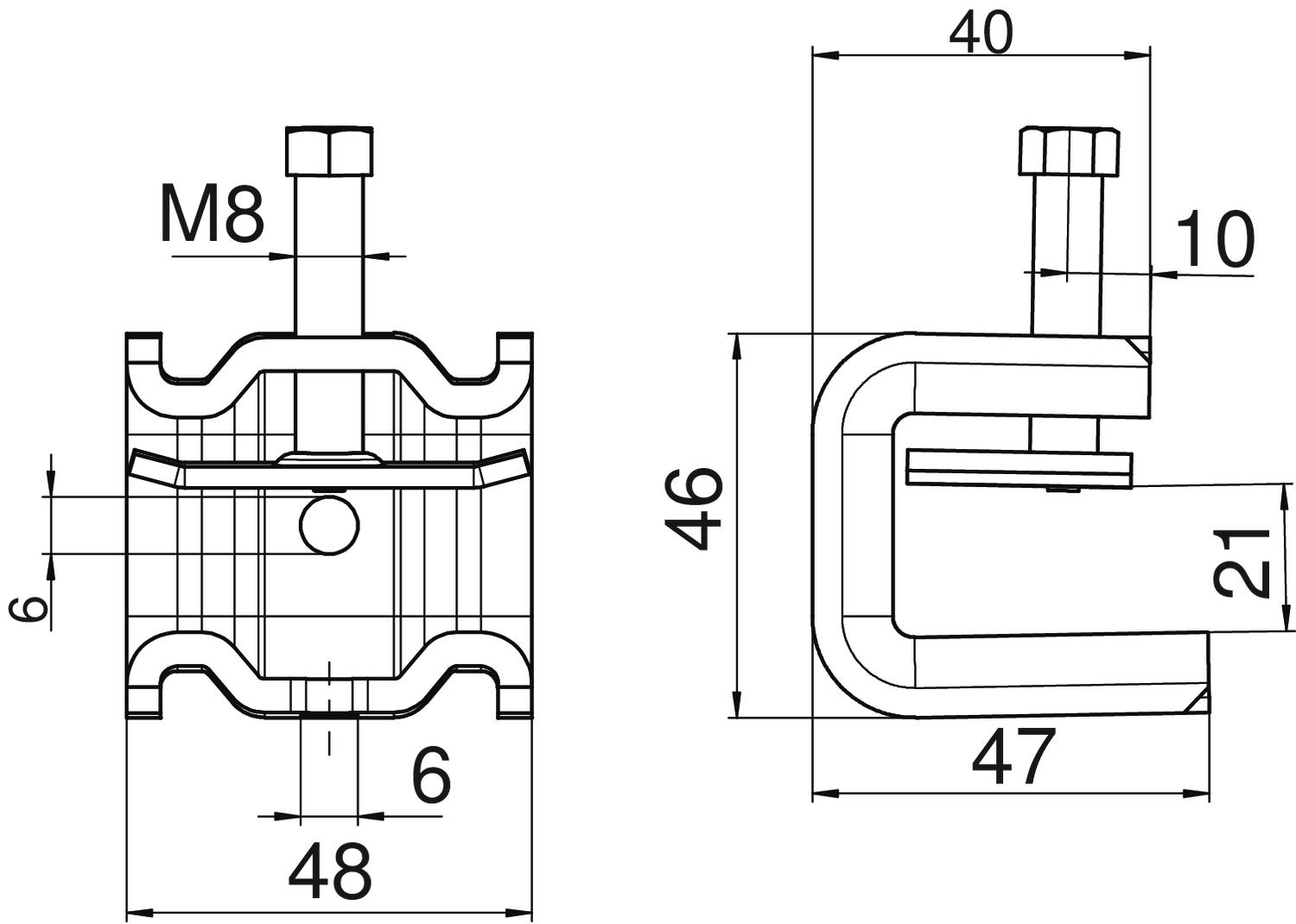

Dimension B 48 mm Dimension H 46 mm Dimension L 47 mm - All types
