Beam clamp SSP 20-40, FT M6

Item no. 1486238 | EAN 4012196342167

1486238 / SSP 20-40 M6 FT
48 mm
47 mm
20 mm
40 mm
Product description

Product description

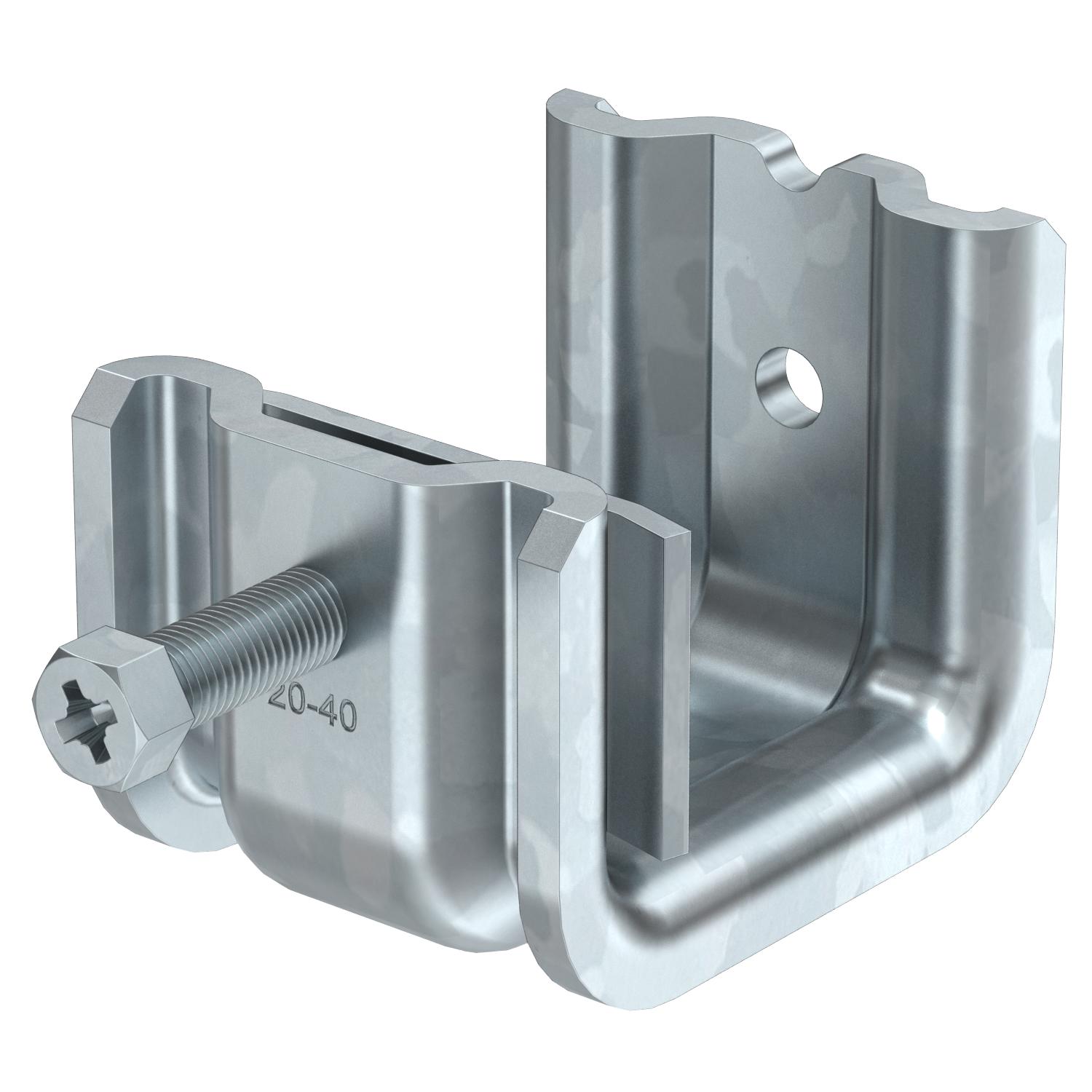

This type of beam clamp is pushed onto the support and fixed to the girder or flat iron using a pressure trough and bolt (M8). The hexagonal bolt has a WAF of 10 mm. In the clip element, two additional M6 threads are also incorporated, to fix threaded rods, for example.

  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load F1 1,4 kN
Breaking load F2 1,3 kN
Connection type/component Thread
Dimension 20-40mm
Fastening type Clamp
Flange thickness F max. 40 mm
Flange thickness F min. 20 mm
Hinge, adjustable no
Hinged no
Material Steel
Suitable for metric threaded rod 6
Surface Hot-dip galvanised
Thread M8
Thread metric 8

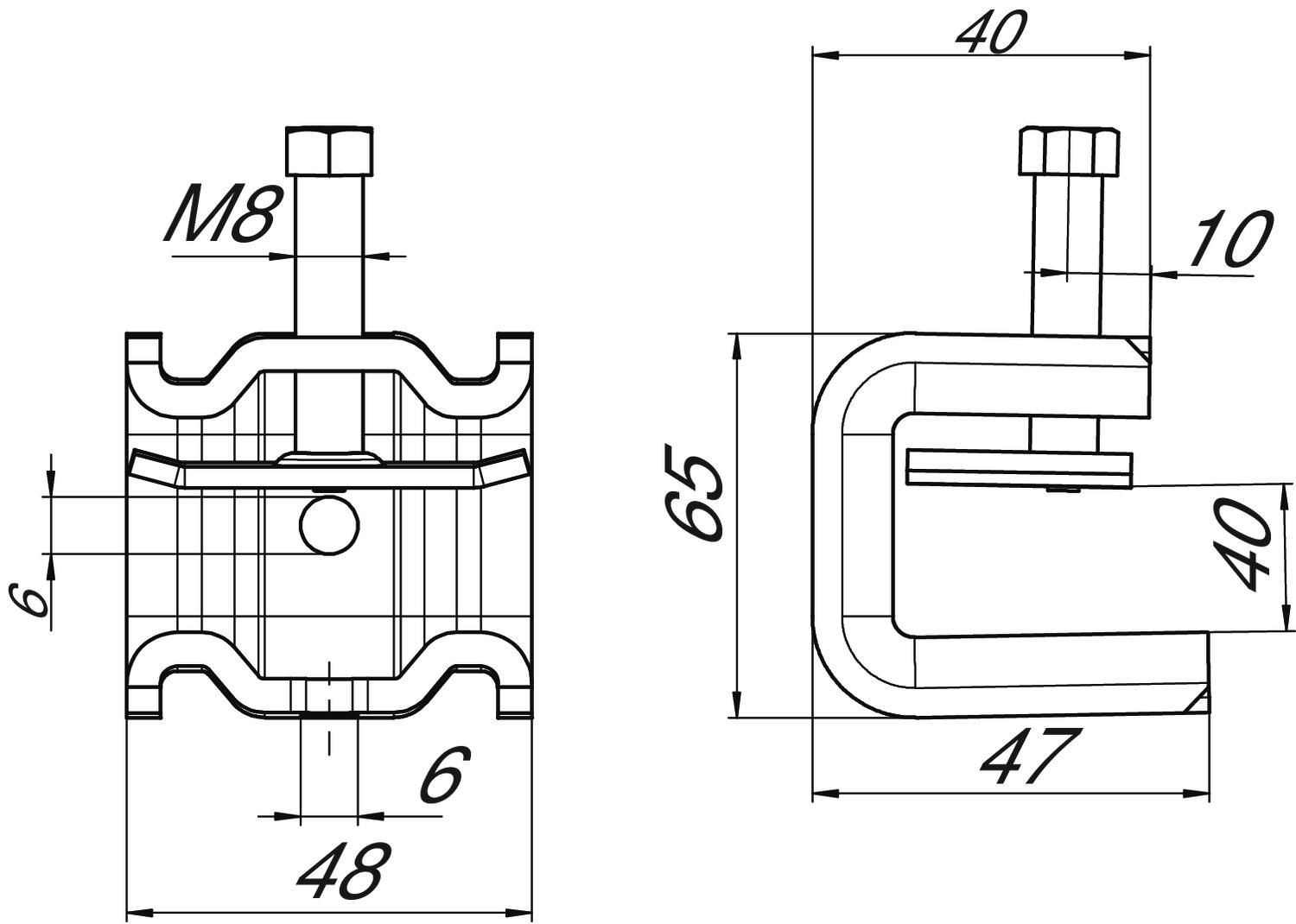

Dimensions

Dimension B 48 mm
Dimension H 65 mm
Dimension L 47 mm
All types

All types

Types Dimension B Dimension L Flange thickness F min. Flange thickness F max. Item no. Quantity SSU
SSP 20-40 M6 FT 48 mm 47 mm 20 mm 40 mm 1486238
25 piece
