Note: This article is discontinued.
- Product description
-
Product description

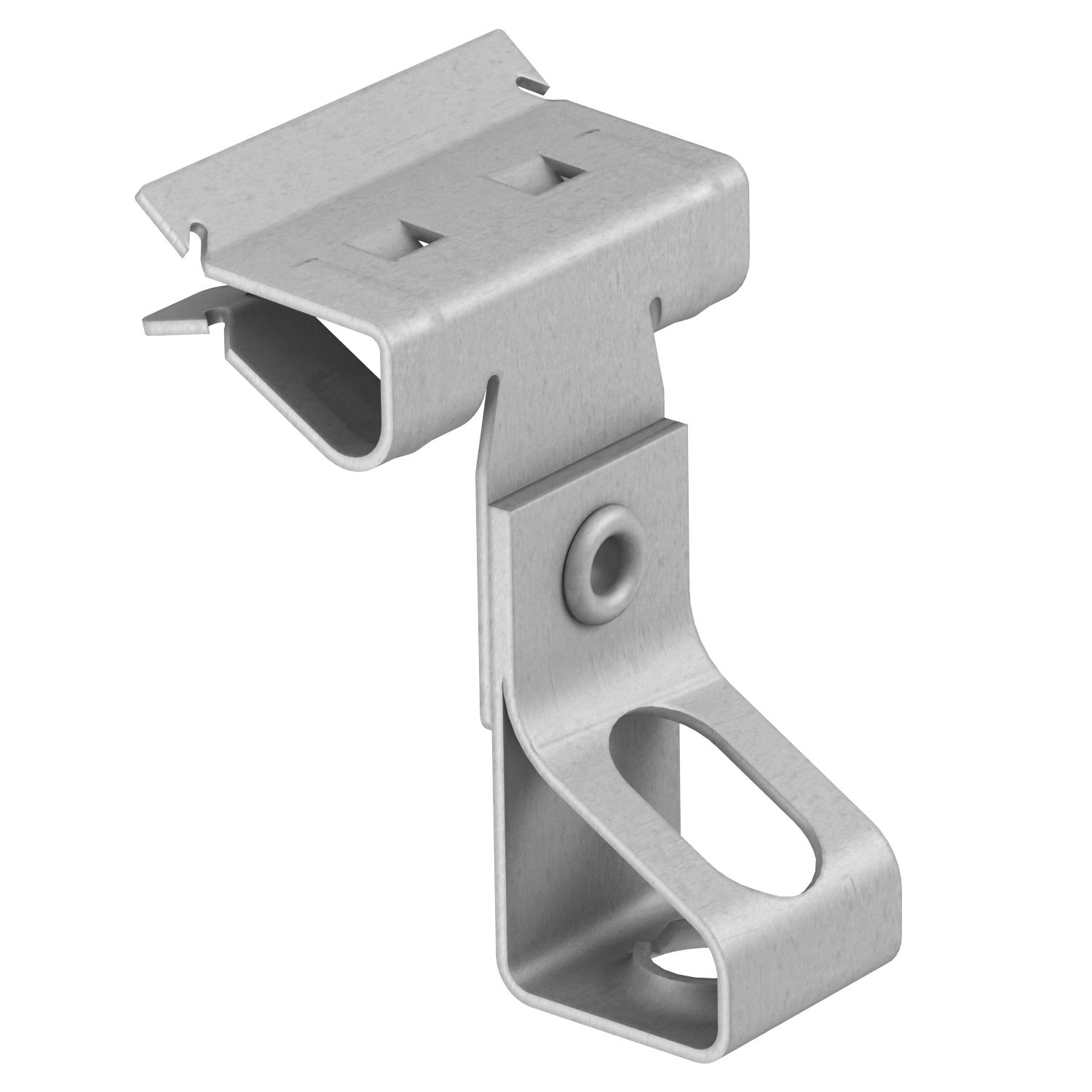

Beam clamp for knocking in with threaded rod seat as individual fastening solution on the beam.
- Technical data
-
Technical data
Connection type/component Thread Dimension 4-8mm Fastening type Clamp Flange thickness F max. 8 mm Flange thickness F min. 4 mm Hinge, adjustable no Hinged no Material Steel Surface Zinc slat Thread M10 Thread metric 10 Dimensions
Dimension B 38 mm Dimension L 63 mm - All types
- Downloads
-
Data sheet BCTR 4-8 M10 / 1483669 , 0.20MB , pdf
