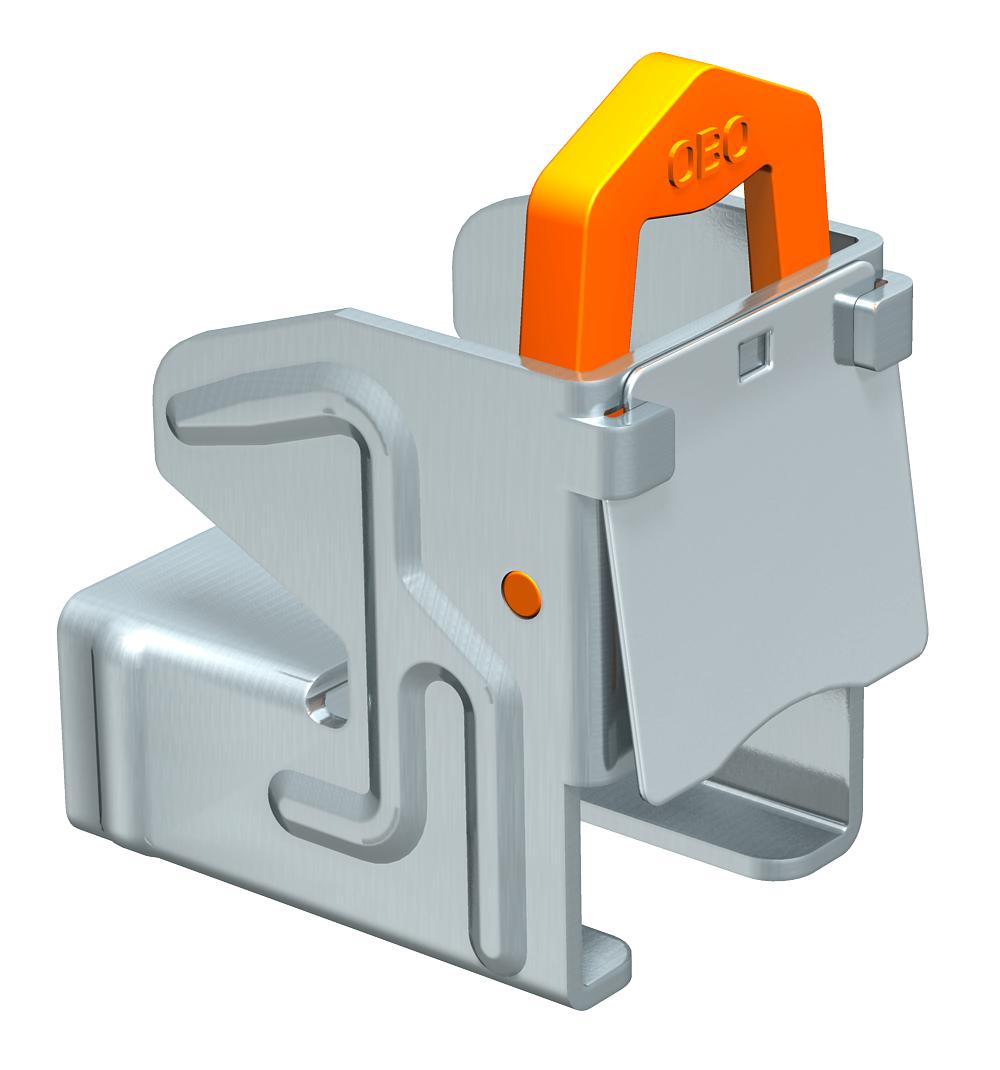

Beam clamp, for profile rail CM3518

Item no. 1408046 | EAN 4012195126850

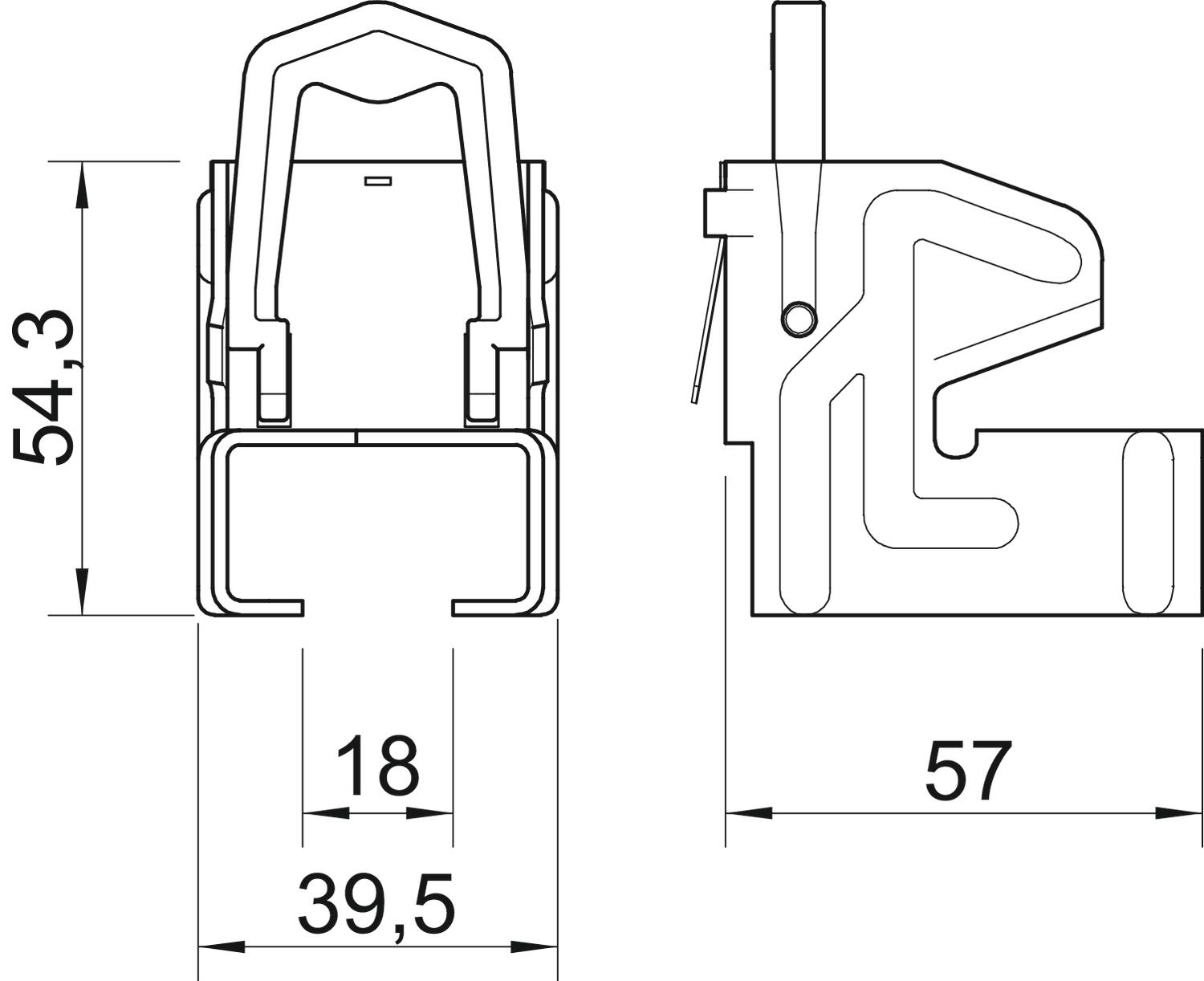

39.5 mm
54.3 mm
39.5 mm
Product description
Product description
Screwless rustproof coated beam clamp, with blocking spring, suitable for profile rail, type CML3518 and CMS3518. For rapid fastening to steel profiles when installing cable tracks, clamp clips, light mounts, etc. A complete system consists of 2 beam clamps and one piece of C profile rail of any length, and 2 end caps.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Connection type/component Miscellaneous
CO₂ Footprint (GWP) Cradle-to-Gate 0,379 kg CO₂e / 1 Piece
Dimension 10-19mm
Dimension B 39,5 mm
Dimension H 54,3 mm
Dimension L 67 mm
Fastening type Clamp
Flange thickness F max. 19 mm
Flange thickness F min. 10 mm
Height 54,3 mm
Hinge, adjustable no
Hinged no
Length 67 mm
Material Steel
Surface Zinc slat
Width 39,5 mm
All types

All types

Types Length Width Height Dimension B Dimension L Flange thickness F min. Flange thickness F max. Item no. Quantity SSU
328 1 57 mm 39.5 mm 54.3 mm 39.5 mm 57 mm 5 mm 11 mm 1408011
50 piece
328 2 67 mm 39.5 mm 54.3 mm 39.5 mm 67 mm 10 mm 19 mm 1408046
50 piece
