Beam clamp, for profile rail CM3518 57 | 39.5 | 54.3 | | | 39.5 | 57 | 5 | 11
morepic-1 morepic-2 video-1

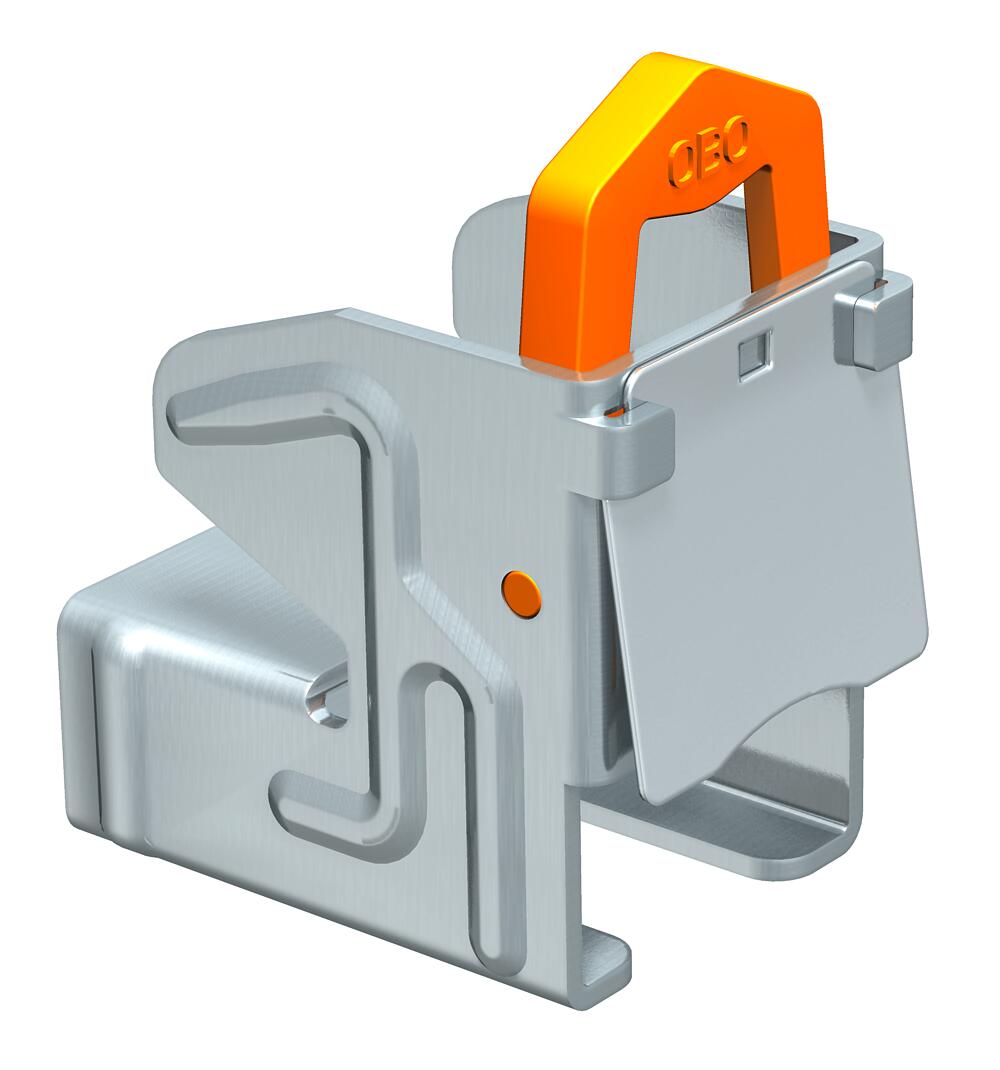

Beam clamp, for profile rail CM3518

Item no. 1408011 | EAN 4012195126799

39.5 mm
54.3 mm
39.5 mm
Product description

Product description

Screwless rustproof coated beam clamp, with blocking spring, suitable for profile rail, type CML3518 and CMS3518. For rapid fastening to steel profiles when installing cable tracks, clamp clips, light mounts, etc. A complete system consists of 2 beam clamps and one piece of C profile rail of any length, and 2 end caps.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Connection type/component Miscellaneous
Dimension 5-11mm
Fastening type Clamp
Flange thickness F max. 11 mm
Flange thickness F min. 5 mm
Hinge, adjustable no
Hinged no
Material Steel
Surface Zinc slat

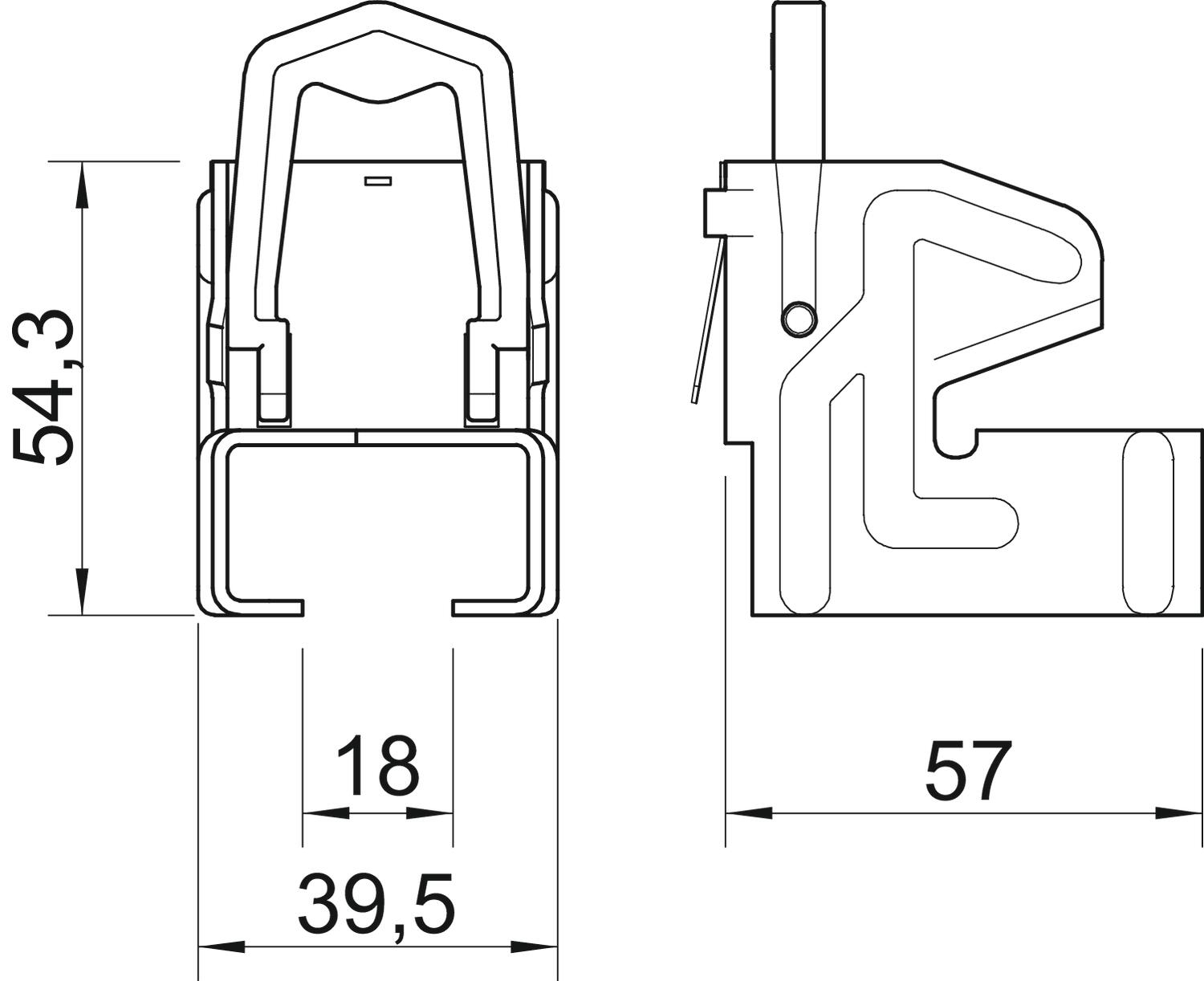

Dimensions

Dimension B 39,5 mm
Dimension H 54,3 mm
Dimension L 57 mm
Height 54,3 mm
Length 57 mm
Width 39,5 mm
All types

All types

Types Length Width Height Dimension B Dimension L Flange thickness F min. Flange thickness F max. Item no. Quantity SSU
328 1 57 mm 39.5 mm 54.3 mm 39.5 mm 57 mm 5 mm 11 mm 1408011
50 piece
328 2 67 mm 39.5 mm 54.3 mm 39.5 mm 67 mm 10 mm 19 mm 1408046
50 piece
