Product description

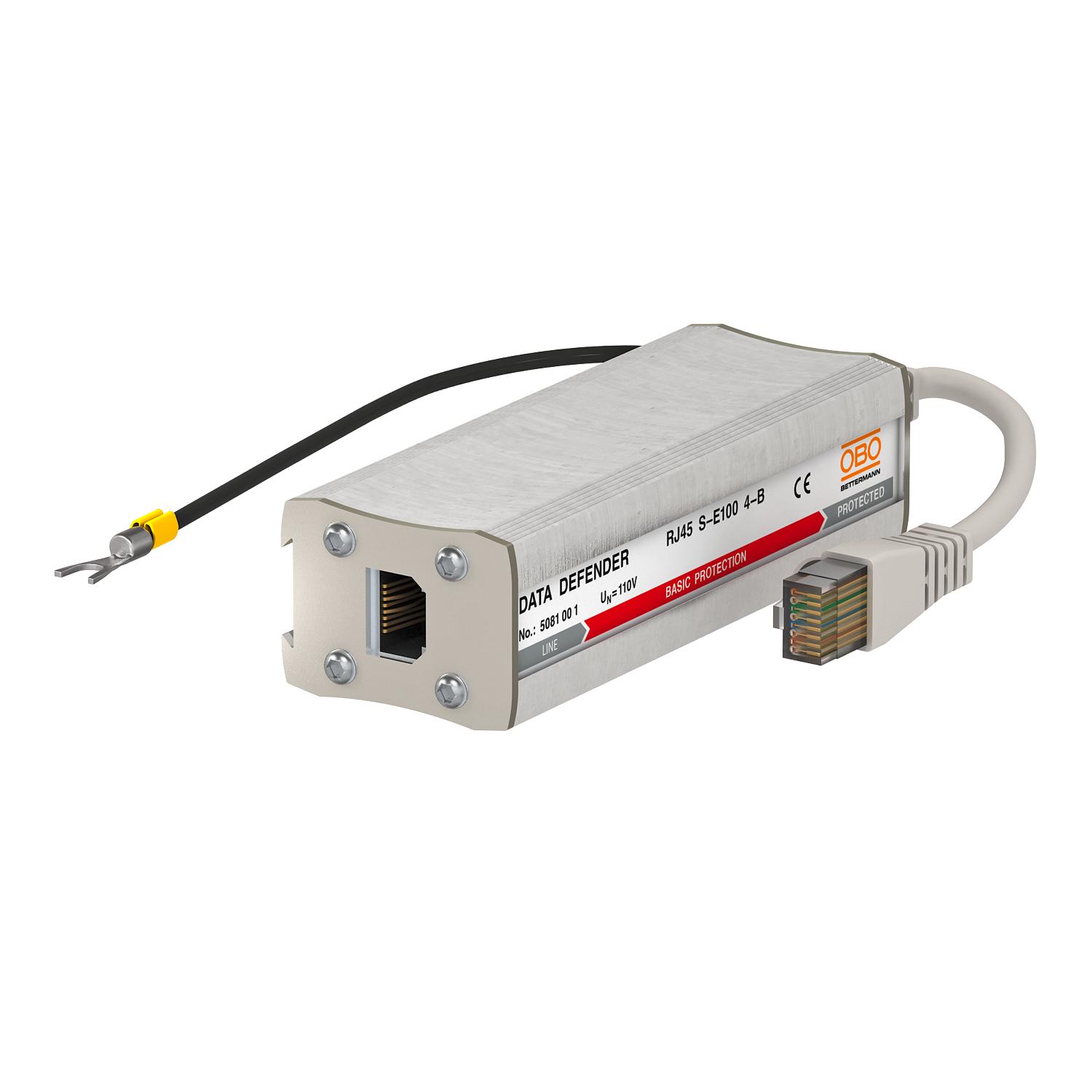

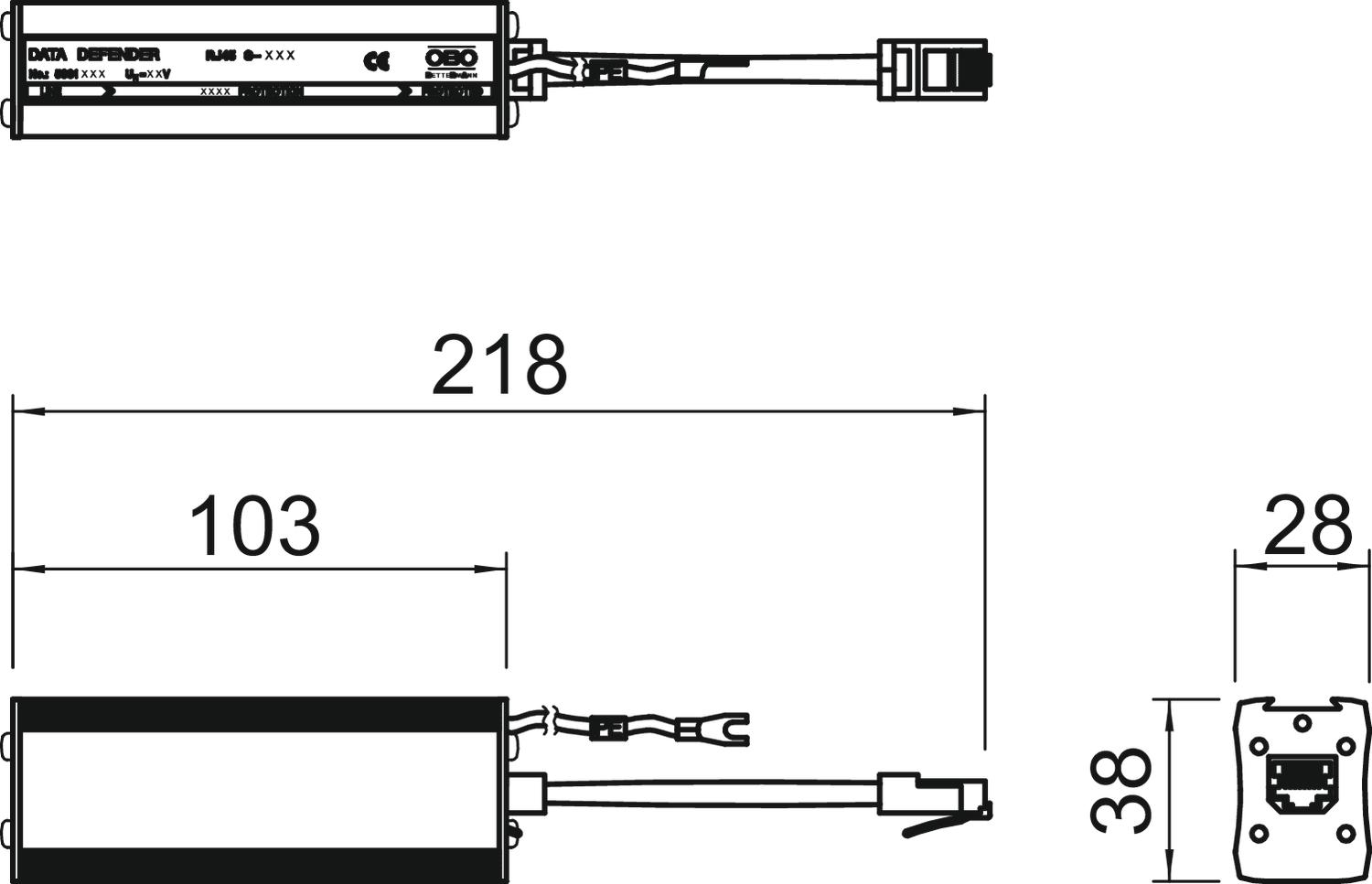

Data line protection device for IT systems
• In aluminium housing
• RJ45 connector
• Incl. 150 mm connection cable with RJ45 connectors
• Simple mounting using adapter

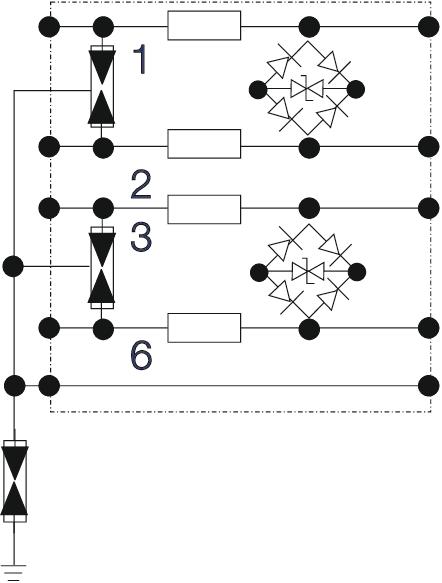

• 2-stage protection circuit
• DIN rail mounting with DLS-BS accessories (5082 38 2)
Application: Twisted Pair, control circuits, RJ45 communication cables
- Technical data
-
Technical data
Arrestor monitoring no Capacity (wire-earth) <20 pF Capacity (wire-wire) <20 pF Channel performance Ansi/EA CAT 5e Channel performance ISO/IEC Class E Cut-off frequency 463 MHz Dimension 170V Earthing via: Connection cable Impulse durability wire-earth C2: 3 kV / 1,5 kA (8/20µs) Impulse durability wire-wire C2: 3 kV / 1,5 kA (8/20µs) Insertion loss ≤3 dB Insulation resistance >1 GΩ Kategorie Type 1+2 / D1+C2 Lightning impulse current 0,5 kA Lightning protection zone LPZ 0→2 Maximum continuous voltage AC 120 Maximum continuous voltage DC 170 Nominal load current AC 0,7 Nominal load current DC 1 A Number of poles 4 Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Plug-in system RJ45 Protection level wire-earth <850 V Protection level wire-wire <700 V Protection rating IP40 Screening Indirect Shielding connection available yes Signalling on device Without SPD to IEC 61643-21 Class I+II / D1+C2 Testing standard IEC 61643-21 Total discharge current (10/350) 2,5 Total discharge current (8/20) 7,5 kA Version for Basic protection, 4 wires + shield - All types
