- Product description
-

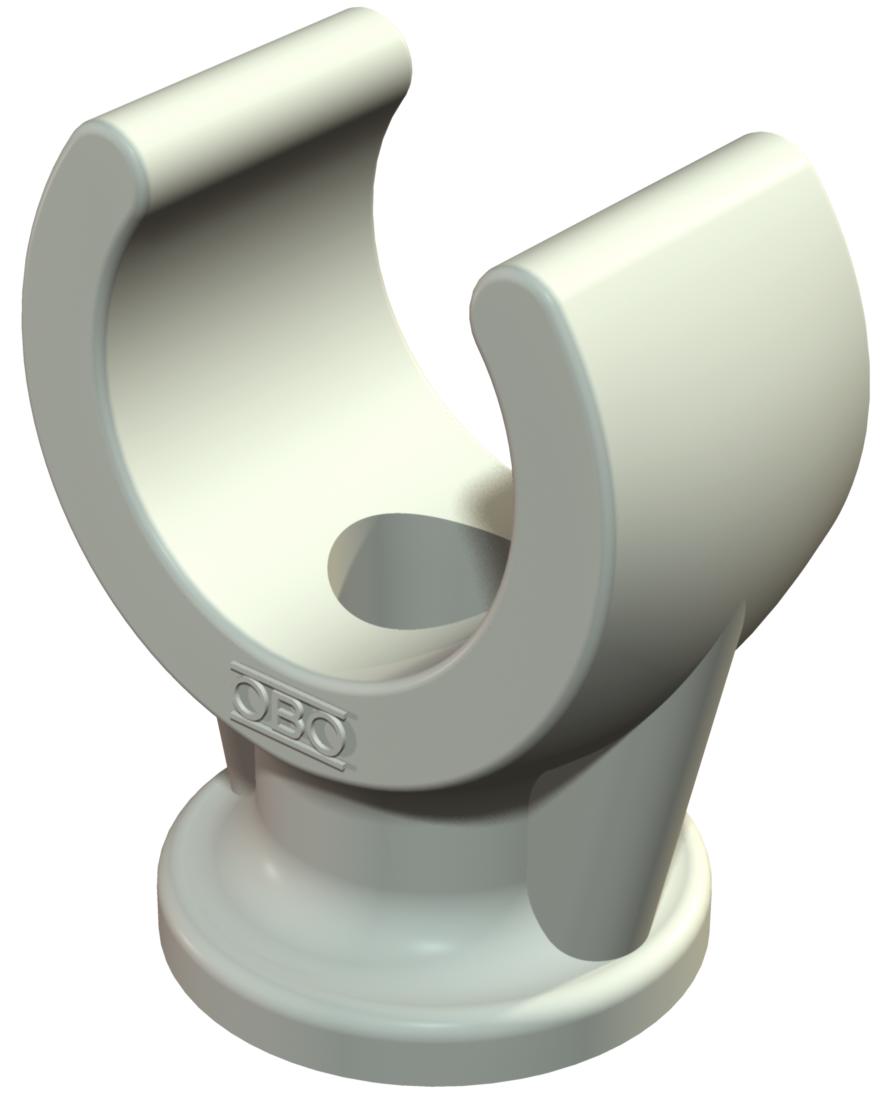

Product descriptionCan be screwed onto M6 thread.
- Technical data
-
Technical data

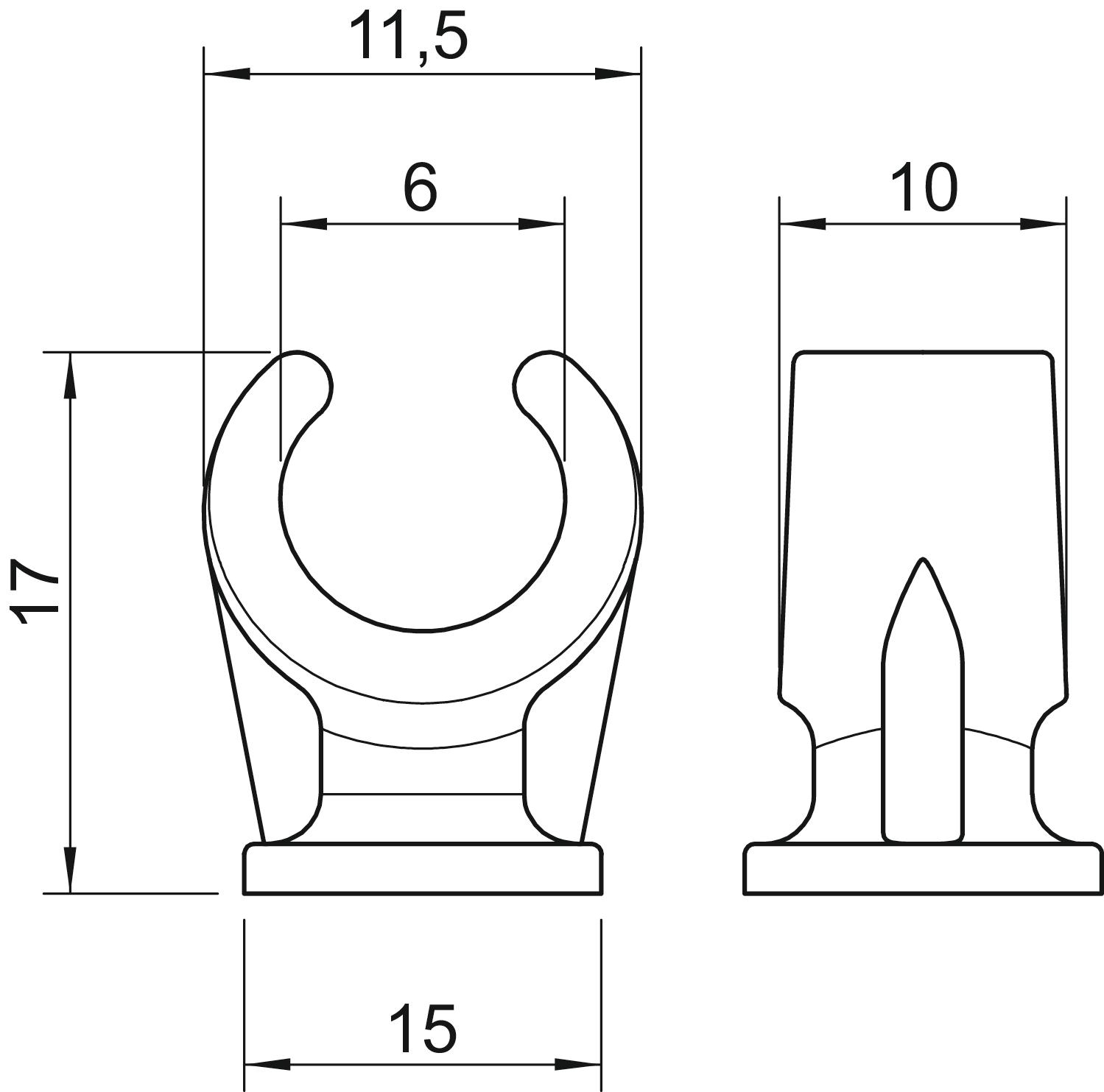

Clamping range D, max. 6 mm Clamping range D, min. 6 mm Colour Light grey; RAL 7035 Dimension 6mm Dimension A 11,5 mm Dimension B 10 mm Dimension C 15 mm Dimension H 17 mm Fastening type Threaded connection Halogen-free yes Material Polypropylene Nominal diameter 5,6 mm Number of cables/pipes 1 Plastic-covered no Size 6 Suitable in fire protection area no UV-resistant no Version for Single-lobe - All types
-
All types
- Downloads
-
Data sheet 2962 6 LGR / 2140063 , 0.20MB , pdfEU declaration of conformity 2962 6 LGR / 2140063 , 0.13MB , pdfREACH Declaration of conformity 2962 6 LGR / 2140063 , 0.12MB , pdfRoHS Declaration of conformity 2962 6 LGR / 2140063 , 0.12MB , pdf
