- Product description
-
Product description

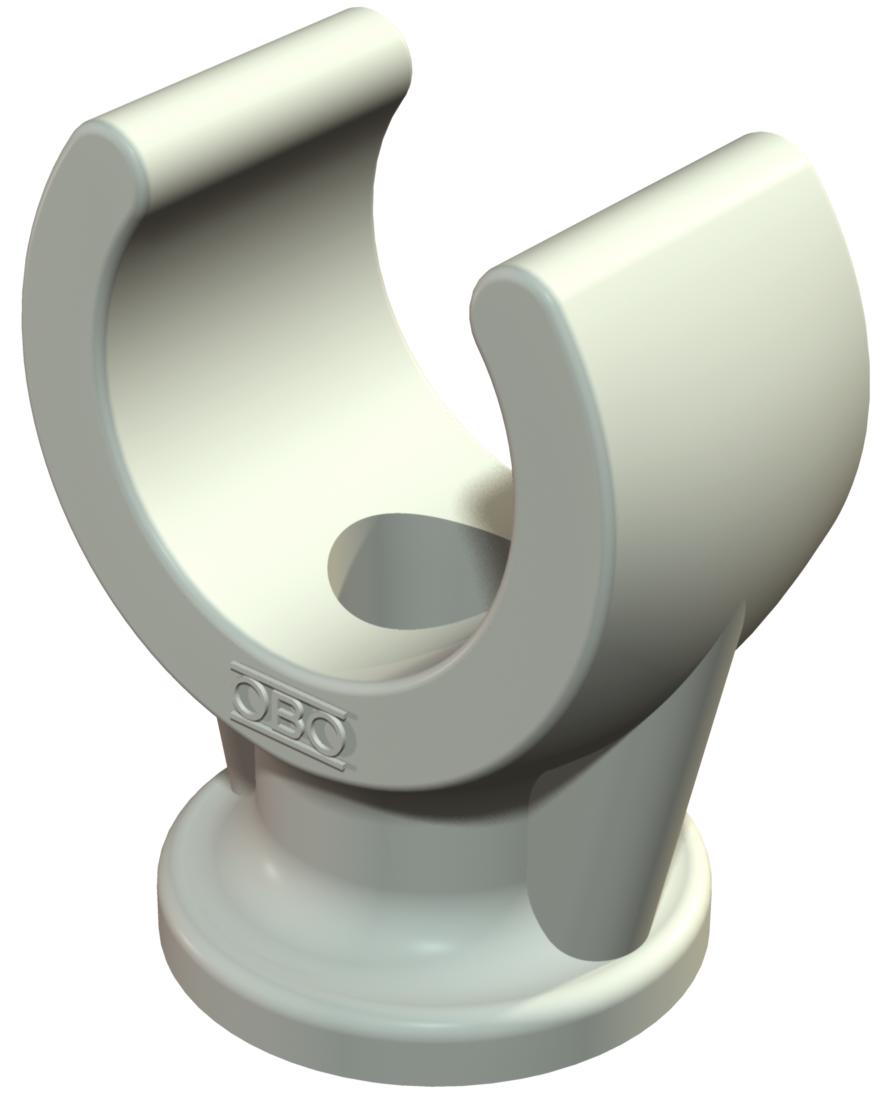

Can be screwed onto M6 thread.
- Technical data
-
Technical data

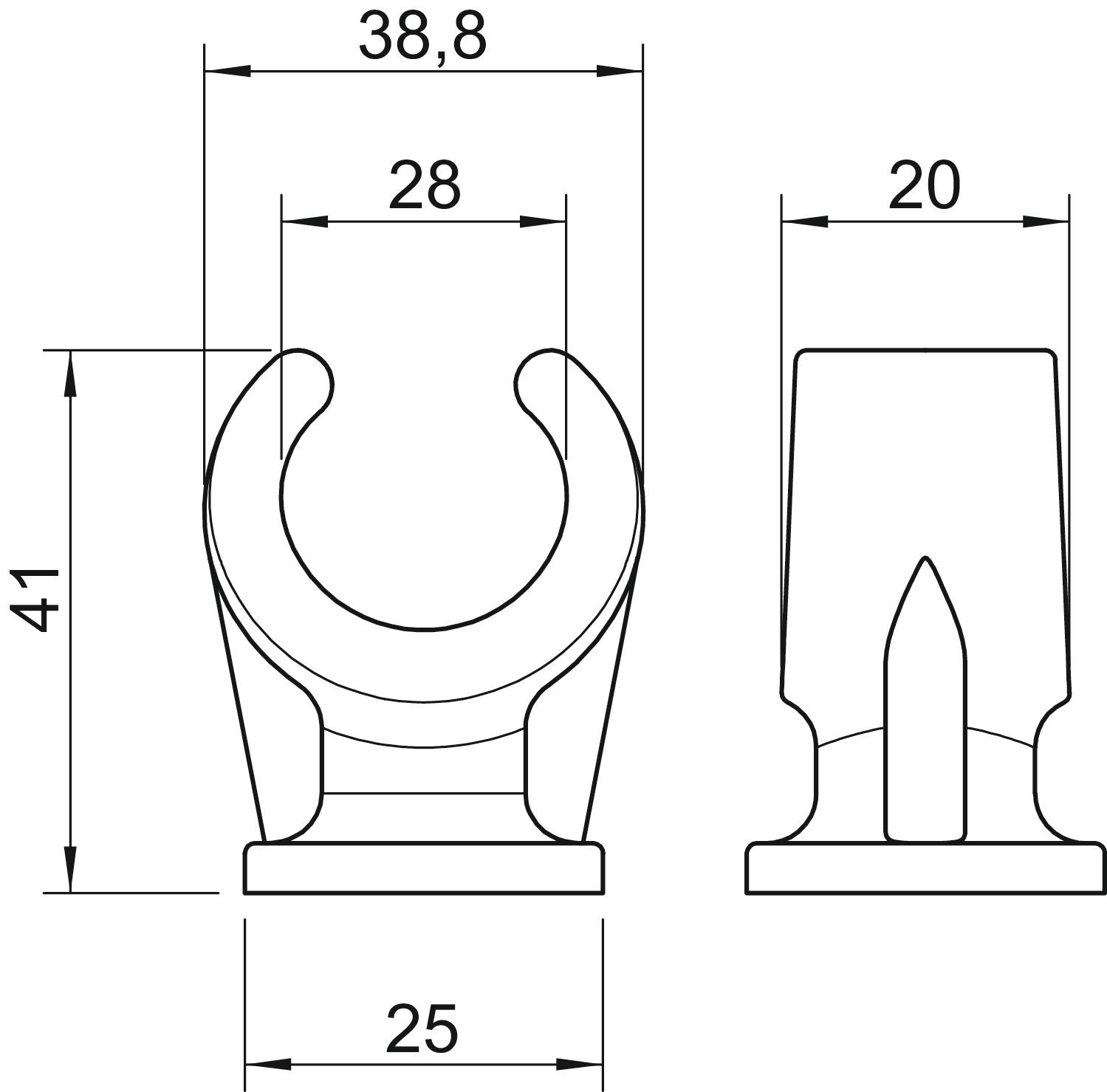

Clamping range D, max. 28 mm Clamping range D, min. 25 mm Colour Light grey; RAL 7035 Dimension 25-28mm Dimension A 38,8 mm Dimension B 20 mm Dimension C 25 mm Dimension H 41 mm Fastening type Threaded connection Halogen-free yes Material Polypropylene Nominal diameter 25 mm Number of cables/pipes 1 Plastic-covered no Size 25-28 Suitable in fire protection area no UV-resistant no Version for Single-lobe - All types
-
All types
- Downloads
-
Data sheet 2962 28 LGR / 2140284 , 0.20MB , pdfDeclaration of conformity 2962 28 LGR / 2140284 , 0.13MB , pdfREACH Declaration of conformity 2962 28 LGR / 2140284 , 0.12MB , pdfRoHS Declaration of conformity 2962 28 LGR / 2140284 , 0.12MB , pdf
