- Product description
-

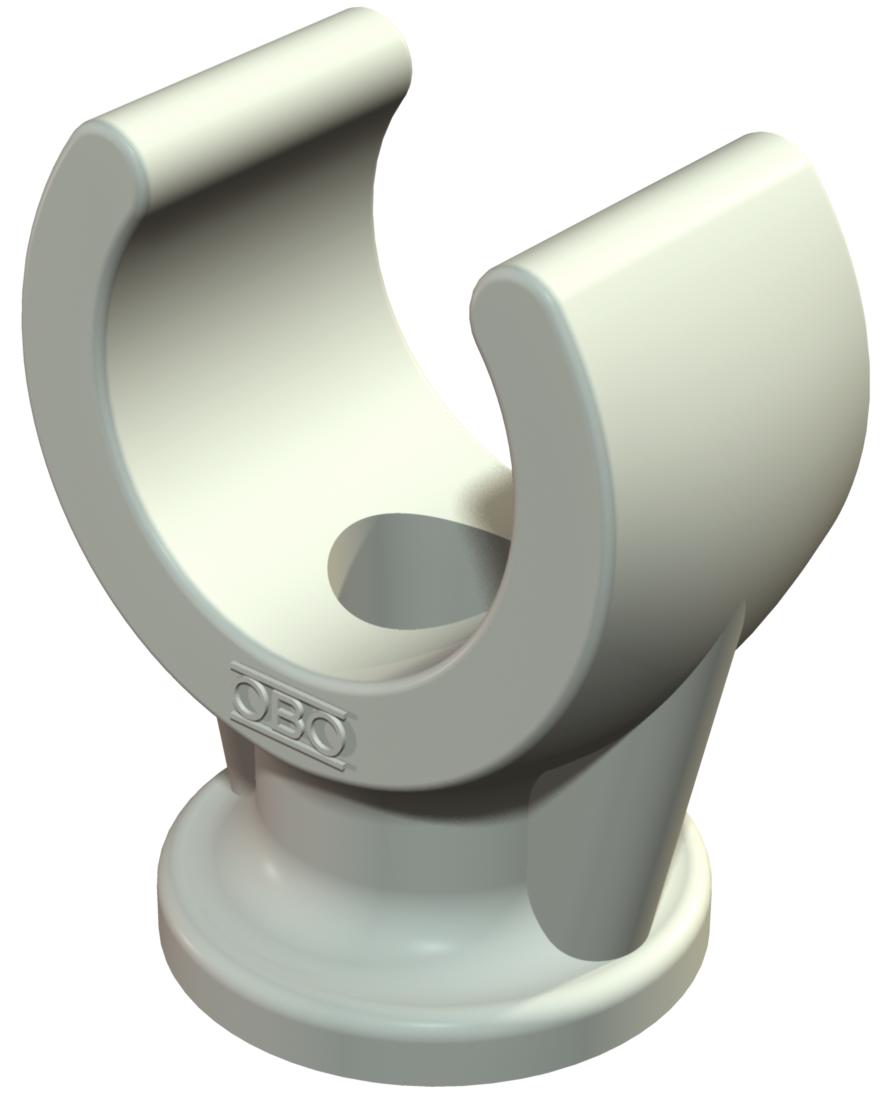

Product descriptionCan be screwed onto M6 thread.
- Technical data
-
Technical data

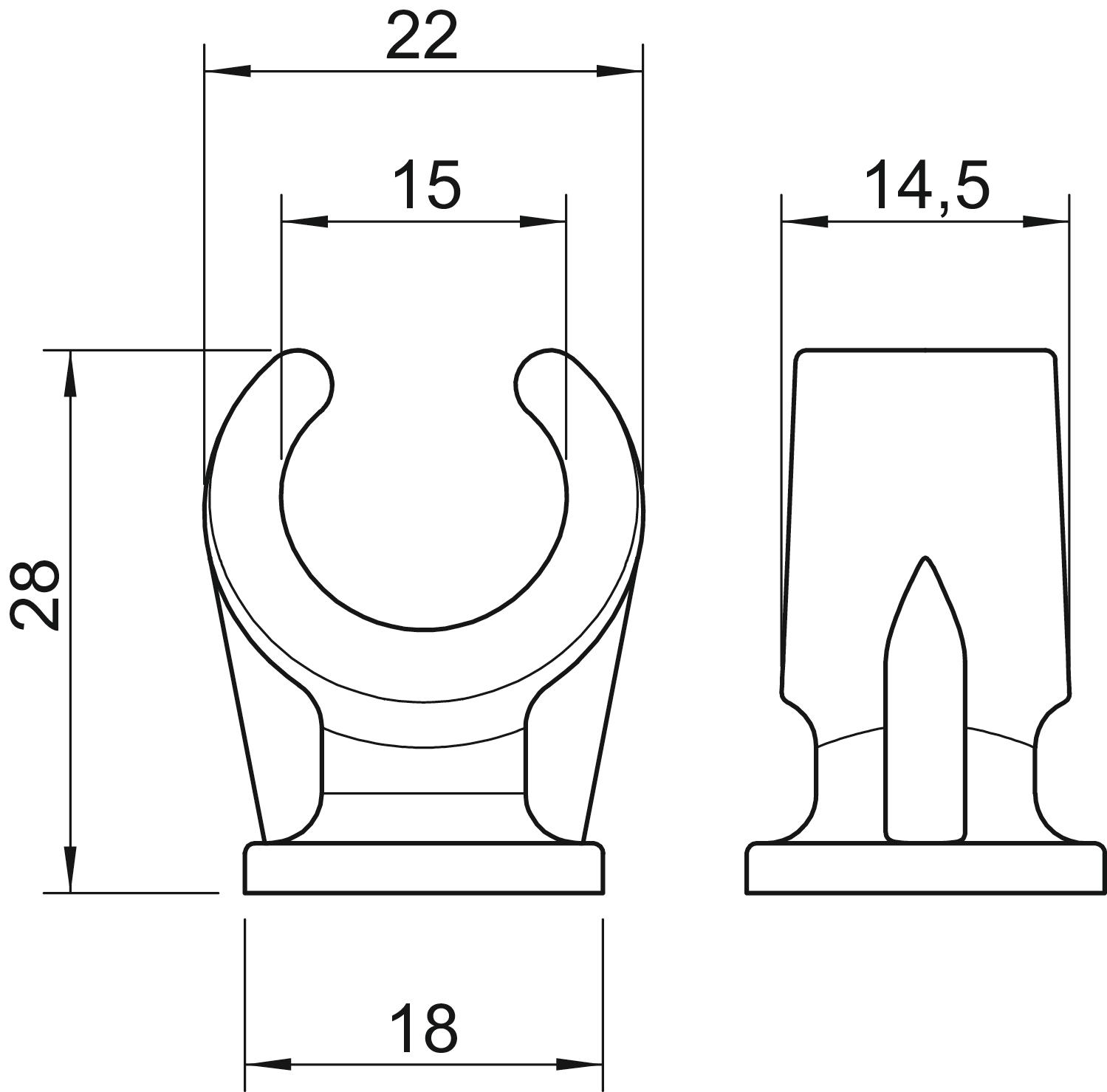

Clamping range D, max. 15 mm Clamping range D, min. 14 mm Colour Light grey; RAL 7035 Dimension 14-15mm Dimension A 22 mm Dimension B 14,5 mm Dimension C 18 mm Dimension H 28 mm Fastening type Threaded connection Halogen-free yes Material Polypropylene Nominal diameter 14,3 mm Number of cables/pipes 1 Plastic-covered no Size 14-15 Suitable in fire protection area no UV-resistant no Version for Single-lobe - All types
-
All types
- Downloads
-
Data sheet 2962 15 LGR / 2140152 , 0.19MB , pdfEU declaration of conformity 2962 15 LGR / 2140152 , 0.13MB , pdfREACH Declaration of conformity 2962 15 LGR / 2140152 , 0.12MB , pdfRoHS Declaration of conformity 2962 15 LGR / 2140152 , 0.12MB , pdf
