- Product description
-

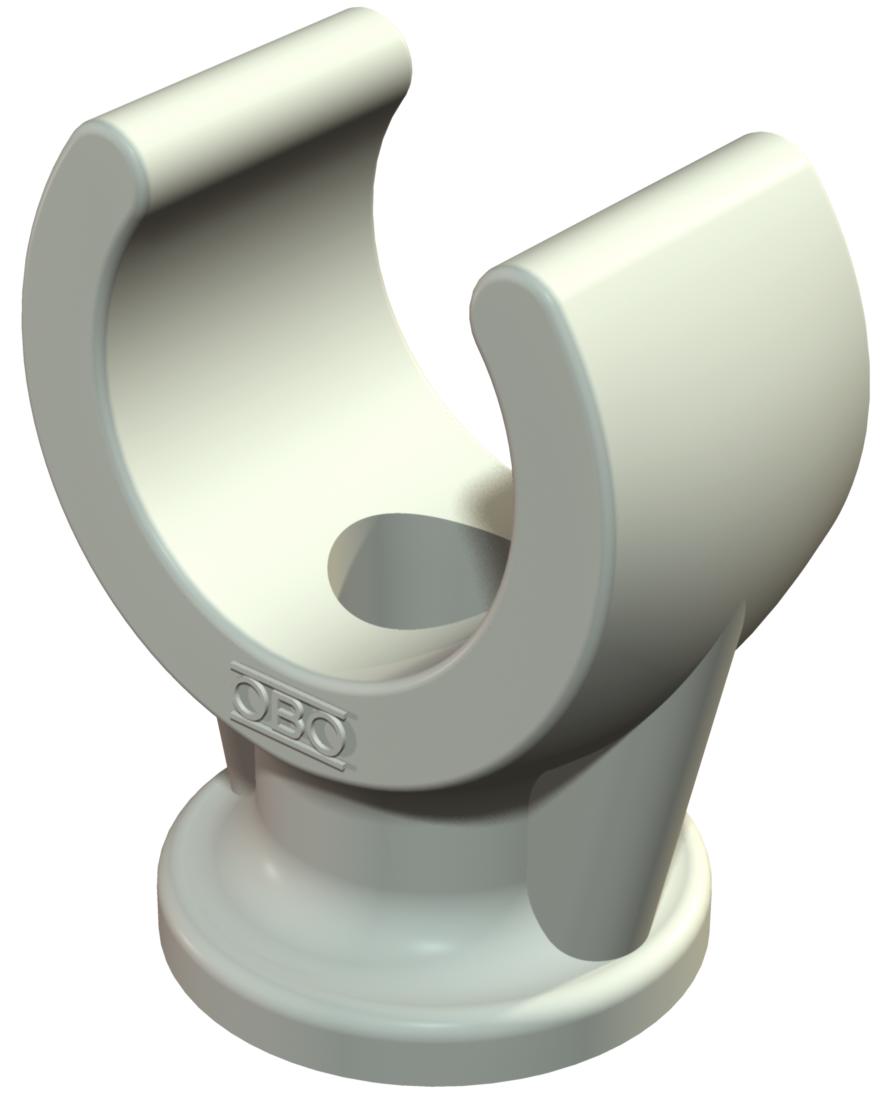

Product descriptionCan be screwed onto M6 thread.
- Technical data
-
Technical data

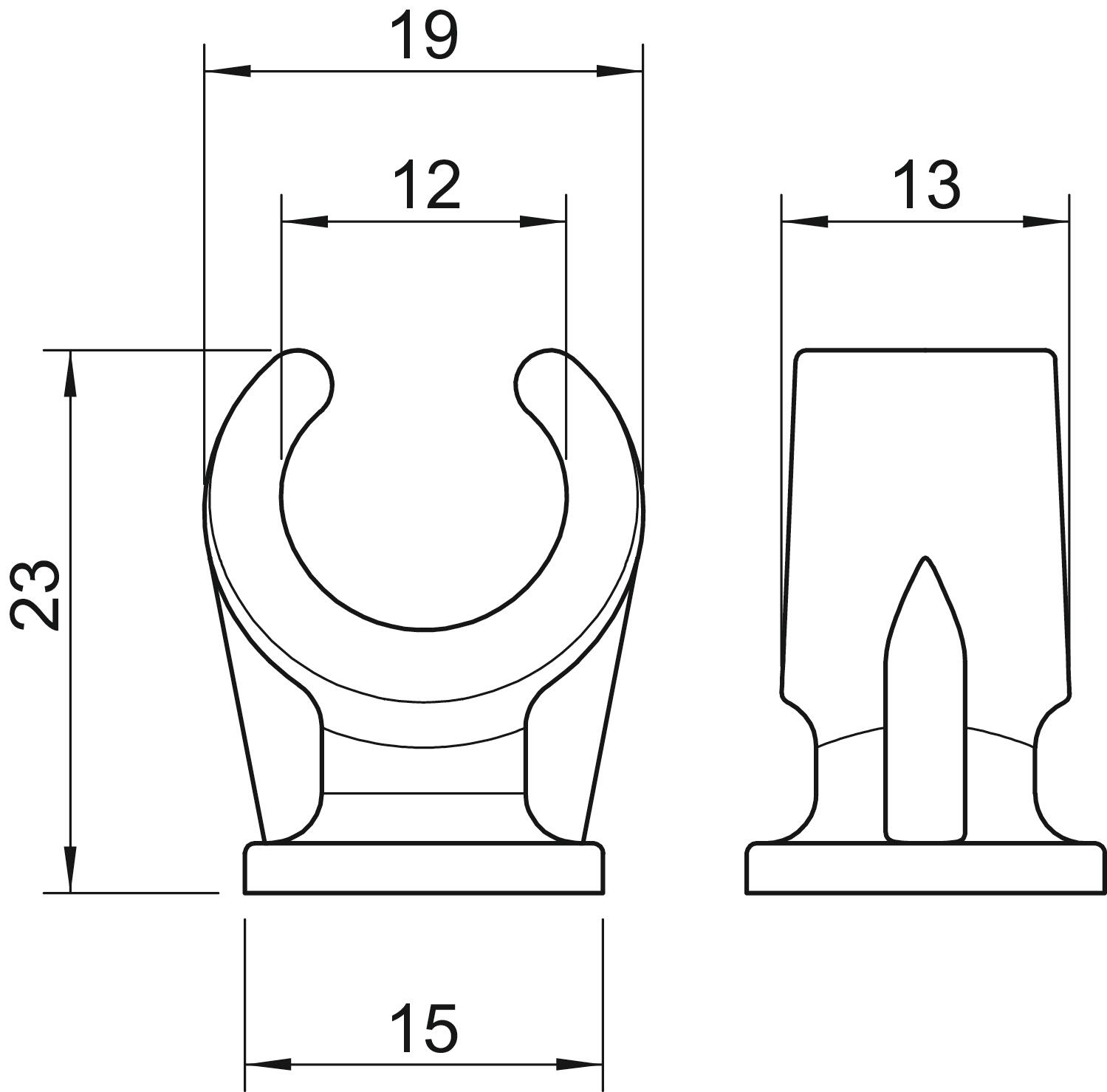

Clamping range D, max. 12 mm Clamping range D, min. 12 mm Colour Light grey; RAL 7035 Dimension 12mm Dimension A 19 mm Dimension B 13 mm Dimension C 15 mm Dimension H 23 mm Fastening type Threaded connection Halogen-free yes Material Polypropylene Nominal diameter 11,2 mm Number of cables/pipes 1 Plastic-covered no Size 12 Suitable in fire protection area no UV-resistant no Version for Single-lobe - All types
-
All types
- Downloads
-
Data sheet 2962 12 LGR / 2140128 , 0.19MB , pdfEU declaration of conformity 2962 12 LGR / 2140128 , 0.13MB , pdfREACH Declaration of conformity 2962 12 LGR / 2140128 , 0.12MB , pdfRoHS Declaration of conformity 2962 12 LGR / 2140128 , 0.12MB , pdf
