Base clamp clip, double
Item no. 2140721 | EAN 4012195199991
- Product description
-
Product description

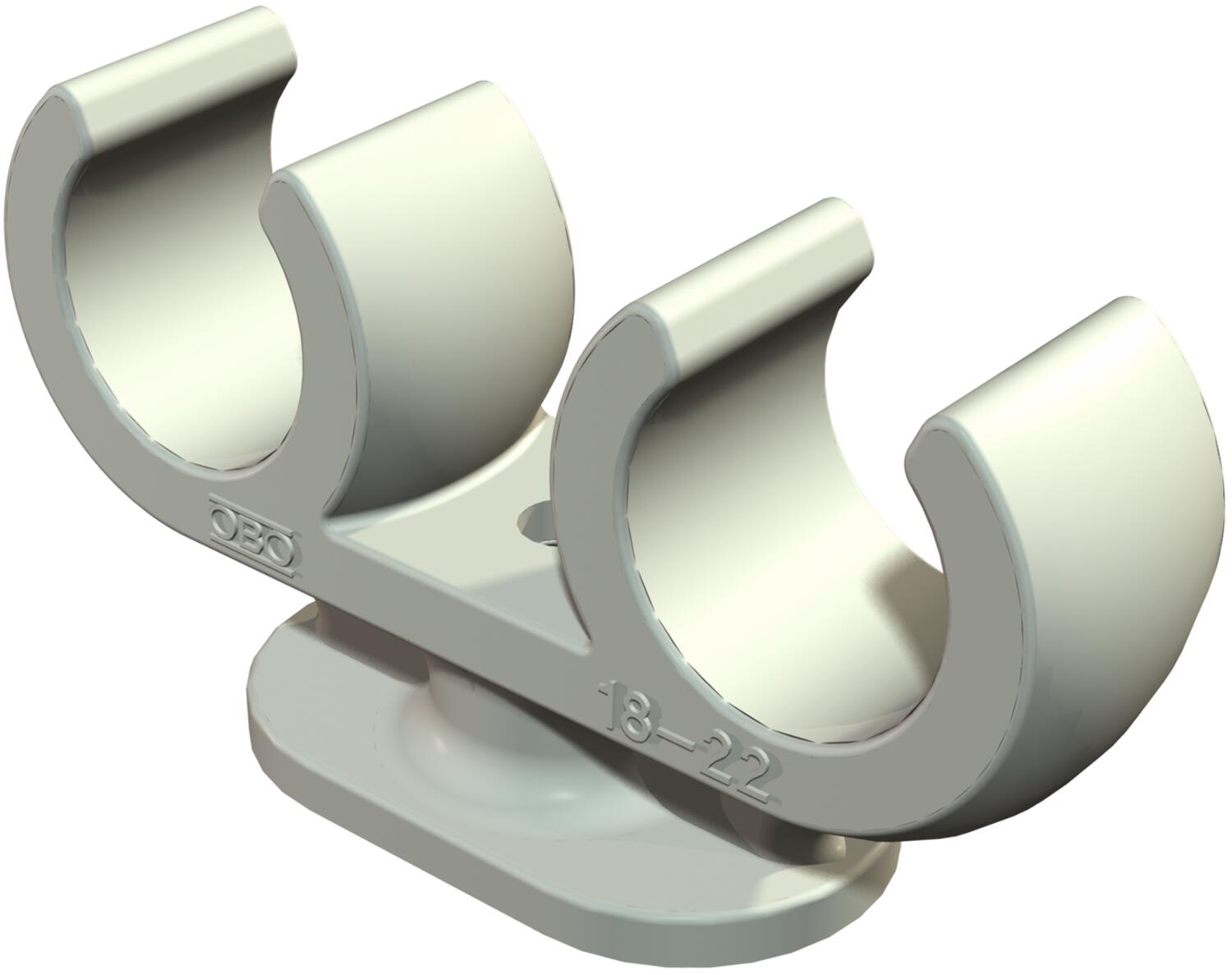

Base clamp clip, two cables 18–22 mm
-
- Technical data
-
Technical data
Clamping range D, max. 22 mm Clamping range D, min. 18 mm Colour Light grey; RAL 7035 Dimension 18-22mm Fastening type Threaded connection Halogen-free yes Material Polypropylene Nominal diameter 17,8 mm Number of cables/pipes 2 Plastic-covered no Size 18/22 + 18/22 Suitable in fire protection area no UV-resistant no Version for Two-lobe Dimensions
Dimension A 67 mm Dimension B 17 mm Dimension C 22 x 38 mm Dimension H 34 mm Dimension L 38 mm - All types
- Downloads
-
Data sheet 2962 2x22 / 2140721 , 0.13MB , pdfDeclaration of conformity 2962 2x22 / 2140721 , 0.13MB , pdfREACH Declaration of conformity 2962 2x22 / 2140721 , 0.12MB , pdfRoHS Declaration of conformity 2962 2x22 / 2140721 , 0.12MB , pdf
