Base clamp clip, double
Item no. 2140683 | EAN 4012195199939
- Product description
-
Product descriptionBase clamp clip, two cables 15–16 mm
-
- Technical data
-
Technical data

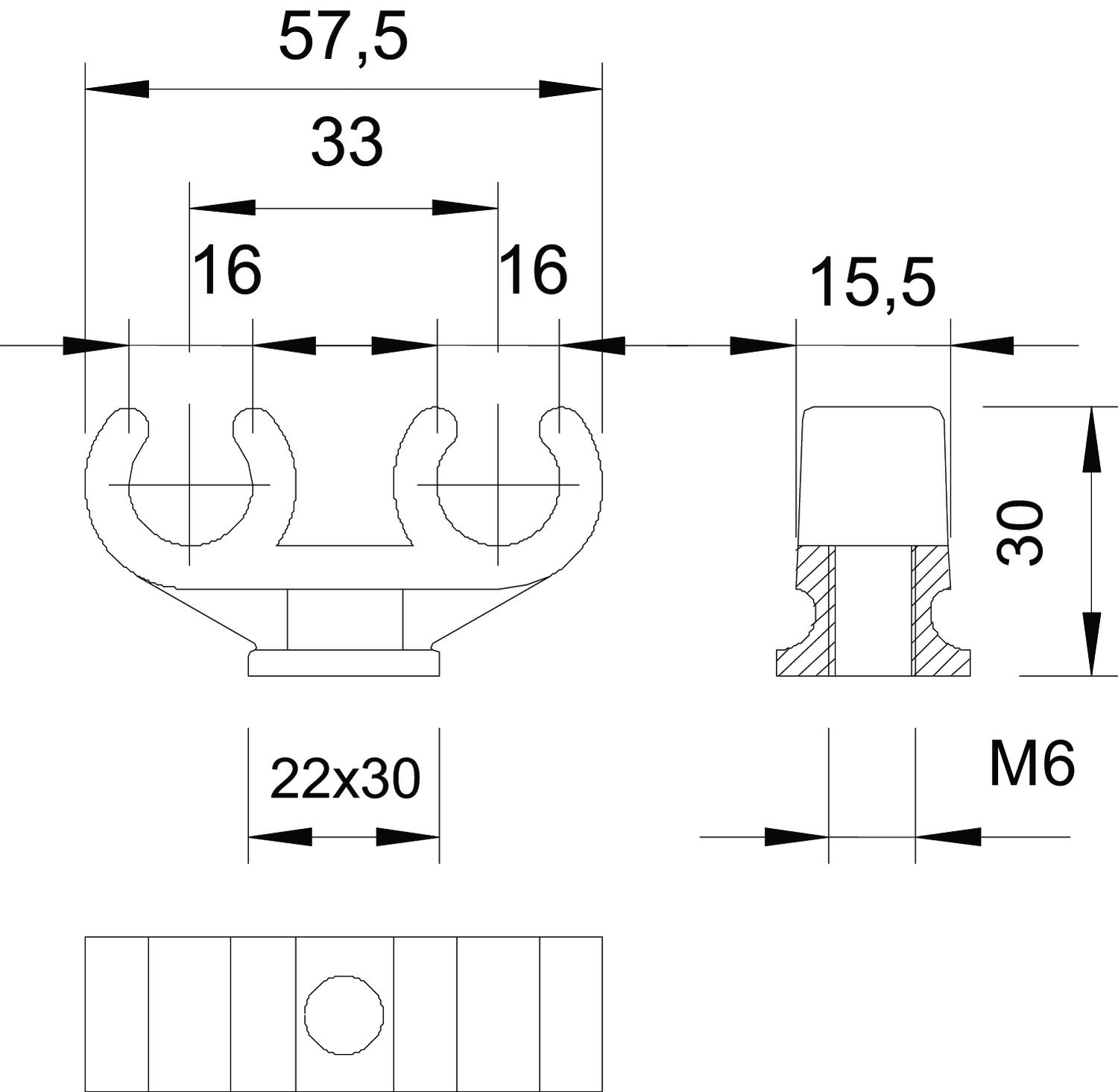

Clamping range D, max. 16 mm Clamping range D, min. 15 mm Colour Light grey; RAL 7035 Dimension 15-16mm Dimension A 57,5 mm Dimension B 15,5 mm Dimension C 20 x 33 mm Dimension H 30 mm Dimension L 33 mm Fastening type Threaded connection Halogen-free yes Material Polypropylene Nominal diameter 14,7 mm Number of cables/pipes 2 Plastic-covered no Size 15/16 + 15/16 Suitable in fire protection area no UV-resistant no Version for Two-lobe - All types
- Downloads
-
Data sheet 2962 2x16 / 2140683 , 0.21MB , pdfEU declaration of conformity 2962 2x16 / 2140683 , 0.13MB , pdfREACH Declaration of conformity 2962 2x16 / 2140683 , 0.12MB , pdfRoHS Declaration of conformity 2962 2x16 / 2140683 , 0.12MB , pdf
