Base clamp clip, double
Item no. 2140608 | EAN 4012195199694
- Product description
-
Product description
Base clamp clip, two cables 10 mm
-
- Technical data
-
Technical data
Clamping range D, max. 10 mm Clamping range D, min. 10 mm Colour Light grey; RAL 7035 Dimension 10mm Fastening type Threaded connection Halogen-free yes Material Polypropylene Nominal diameter 9,6 mm Number of cables/pipes 2 Plastic-covered no Size 10 + 10 Suitable in fire protection area no UV-resistant no Version for Two-lobe Dimensions

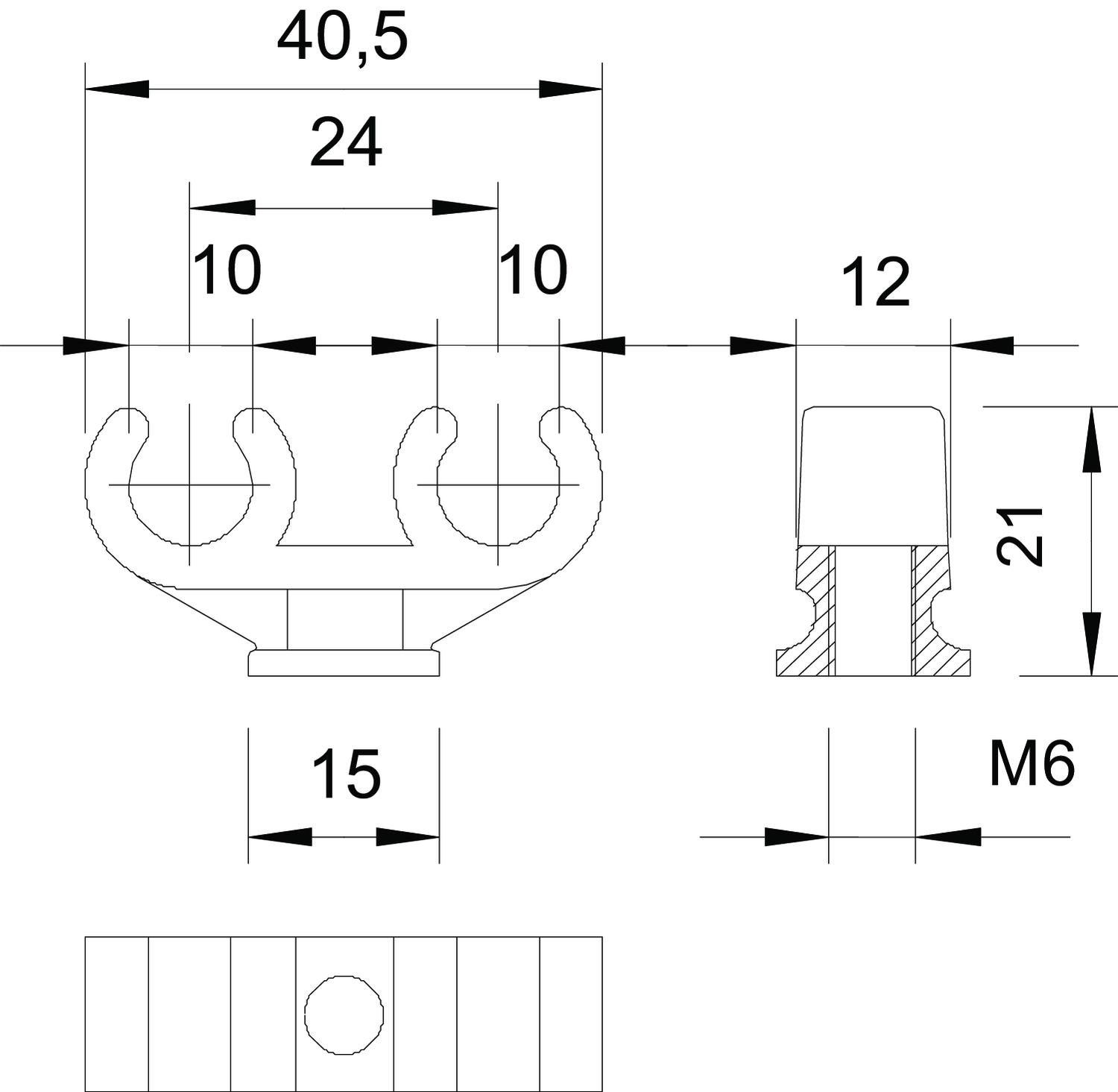

Dimension A 40,5 mm Dimension B 12 mm Dimension C Ø 15 mm Dimension H 21 mm Dimension L 24 mm - All types
- Downloads
-
Data sheet 2962 2X10 / 2140608 , 0.24MB , pdfDeclaration of conformity 2962 2X10 / 2140608 , 0.13MB , pdfREACH Declaration of conformity 2962 2X10 / 2140608 , 0.12MB , pdfRoHS Declaration of conformity 2962 2X10 / 2140608 , 0.12MB , pdf
