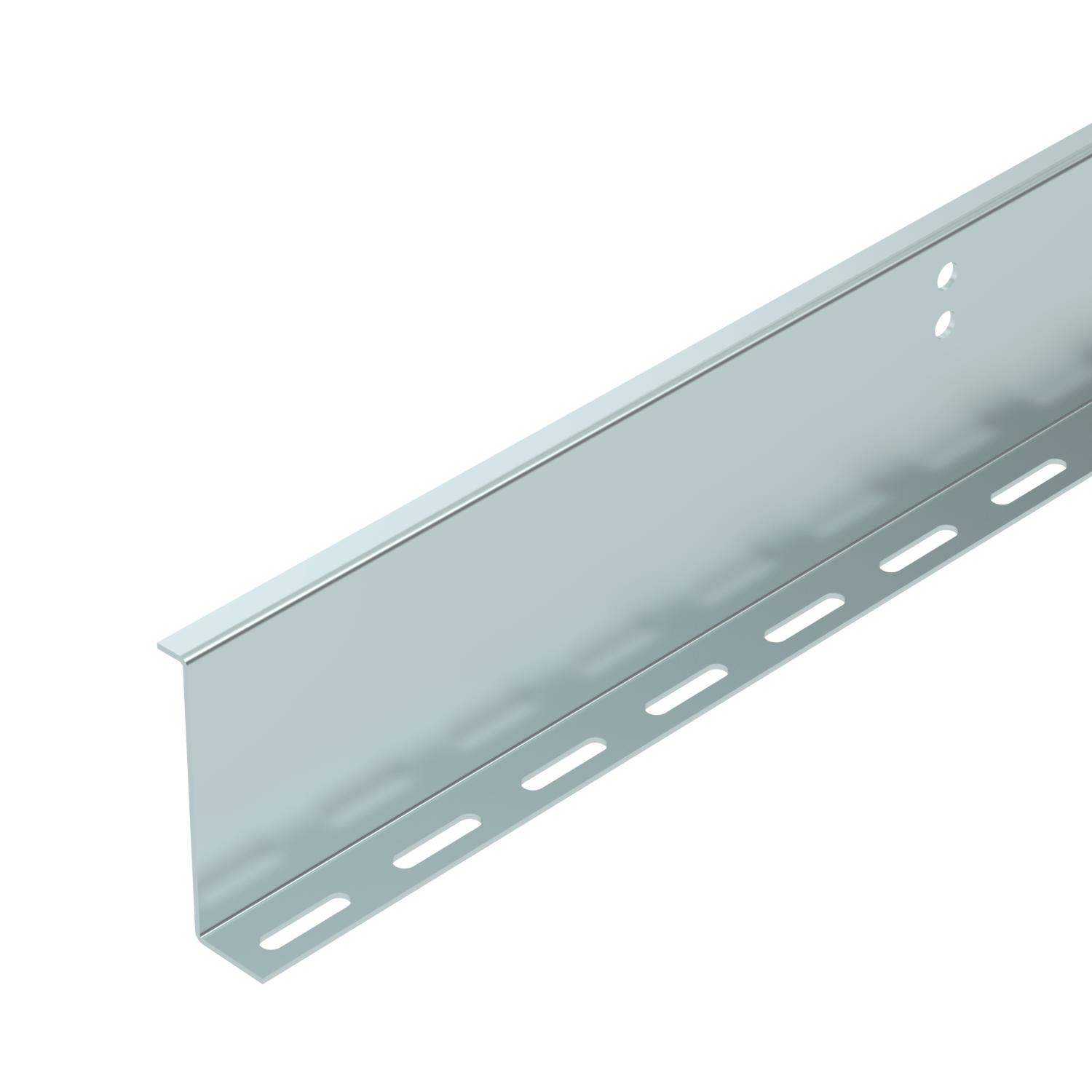

Barrier strip, Z-shaped 100 FS
Item no. 6062390 | EAN 4012196341788
- Product description
-
Product descriptionBarrier strip for the BKRS walkable cable tray system. Fastening with truss-head bolts M6 x 12 in the base perforation.
-
- Technical data
-
Technical data

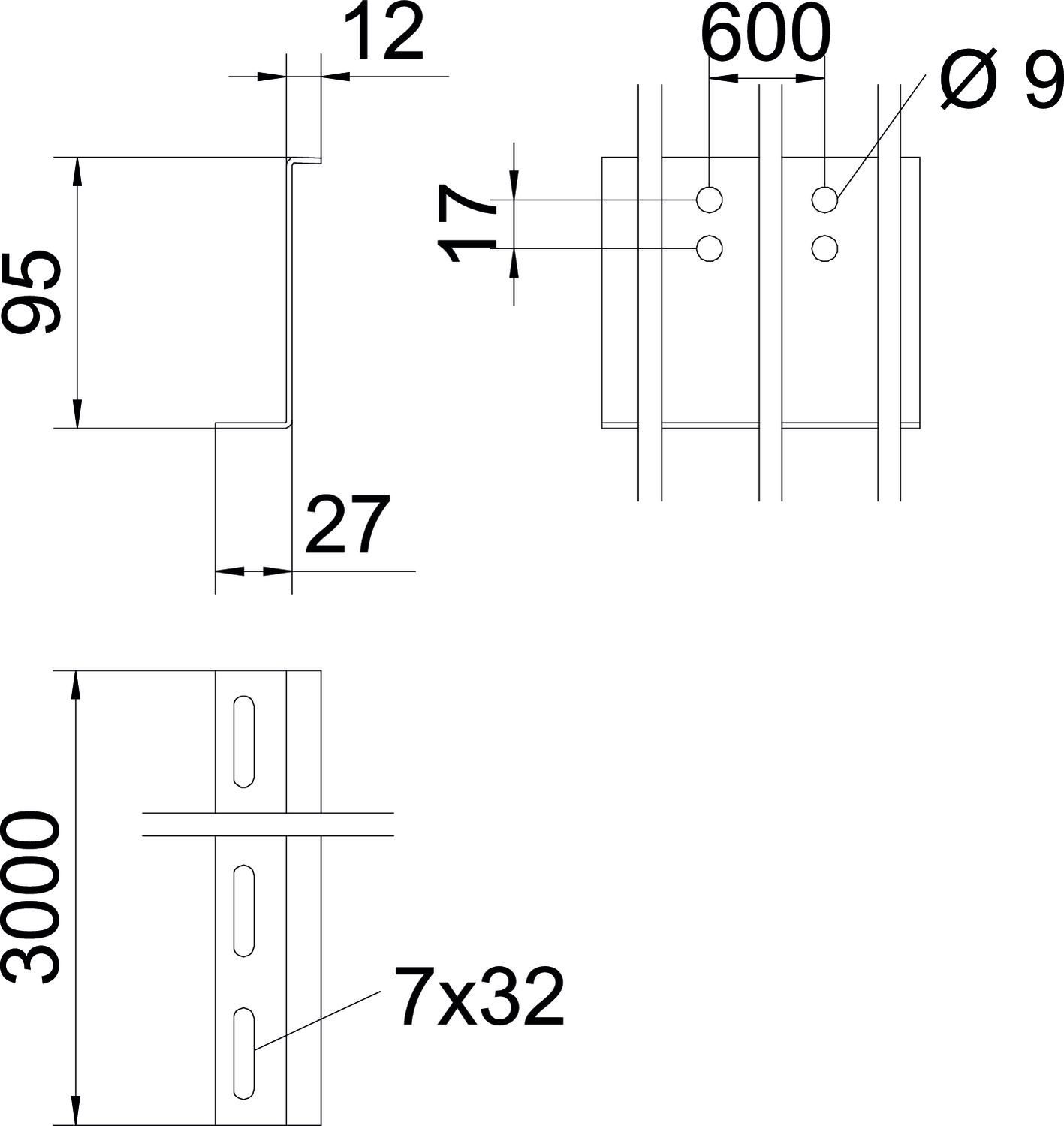

Colour zinc Dimension 100x2x3000 Dimension H 100 mm Dimension L 3000 mm Fastening perforation (ETIM) yes Height 4 in Height 95 mm Length 3000 mm Length 10 ft Maintain electrical functions no Material Steel Plate thickness 2 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Strip galvanized Version for Miscellaneous Width 34 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet TSG100Z BKRS FS / 6062390 , 0.23MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity TSG100Z BKRS FS / 6062390 , 0.10MB , pdfUK Declaration of Conformity TSG100Z BKRS FS / 6062390 , 0.14MB , pdfREACH Declaration of conformity TSG100Z BKRS FS / 6062390 , 0.12MB , pdfRoHS Declaration of conformity TSG100Z BKRS FS / 6062390 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Mercedes Benz , 4.15MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdfMounting instructions BKRS Begehbare Kabelrinnensysteme , 5.36MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
