Bandage for insulation 10000 | 100 | 1.5 | 2.03

morepic-1

morepic-2

Bandage for insulation

Item no. 7203165 | EAN 4012196651887

Item no. / Types

Length	10000 mm

Width

Thickness	1.5 mm

Contents

Product description

Product description

Fire protection coil, coated on both sides with material that foams up in case of fire for wrapping installations in the PYROMIX® mortar insulation and PYROPLATE® Fibre plate insulation. The carrier mesh has an insulation former on both sides. The nominal thickness is 1.5 mm.

Technical data

Technical data

Colour	Grey
Contents	2,03 kg
Dimension	10000x100
Dimension B	100 mm
Dimension L	10000 mm

Height	1,5 mm
Length	10 m
Length	10000 mm
Thickness	1,5 mm
Width	100 mm

All types

All types

Types	Length	Width	Thickness	Contents	Item no.	Quantity	SSU
FSB-WB 1.5	10000 mm	125 mm	1.5 mm	2.26 kg	7203163	piece	1 piece
FSB-WB BS	10000 mm	100 mm	1.5 mm	2.03 kg	7203165	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Winding wire for path insulation	MIW-TD	7202309	piece	1 piece

Downloads

Data sheet FSB-WB BS / 7203165 , 0.27MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Declaration of conformity FSB-WB BS / 7203165 , 0.11MB , pdf

FSB-WB BS / 7203165 , 0.75MB , pdf

Download

Selection aid Selection aid, insulation , 0.86MB , pdf

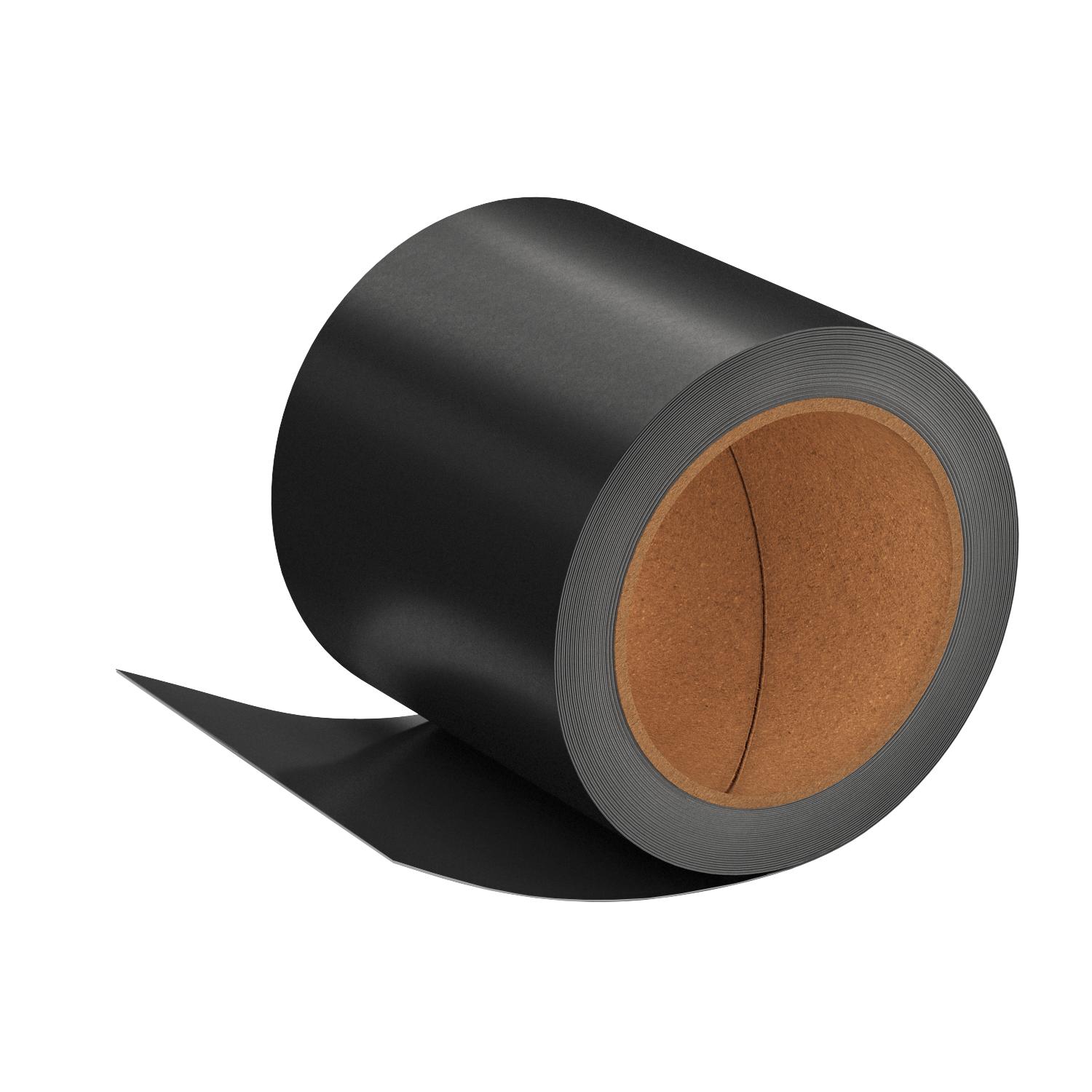

Product graphic FSB-WB BS / 7203165, 126.73 kB, jpg

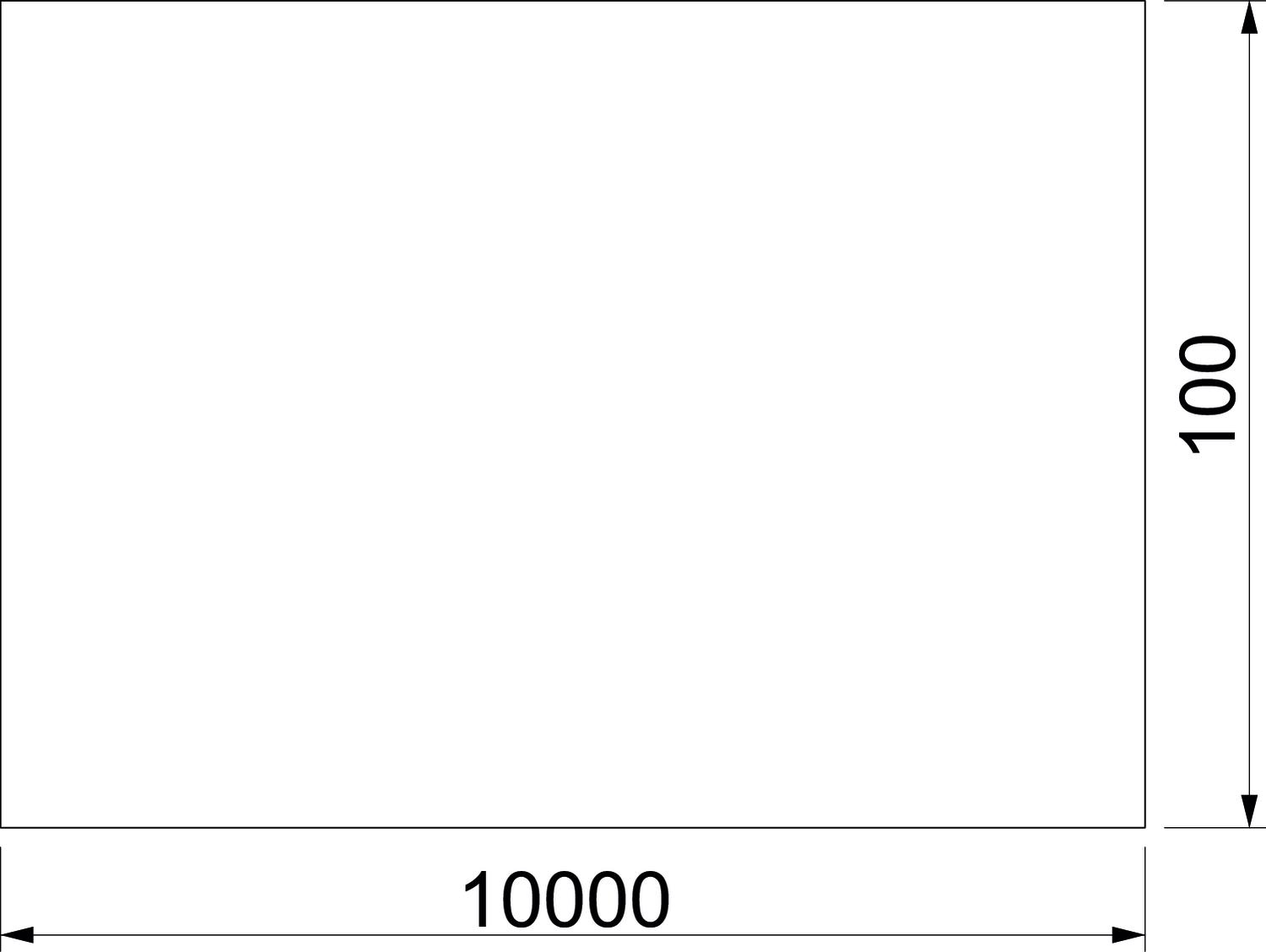

Scale drawing FSB-WB BS / 7203165, 32.24 kB, jpg

No invitation to tender text is available for this product.
