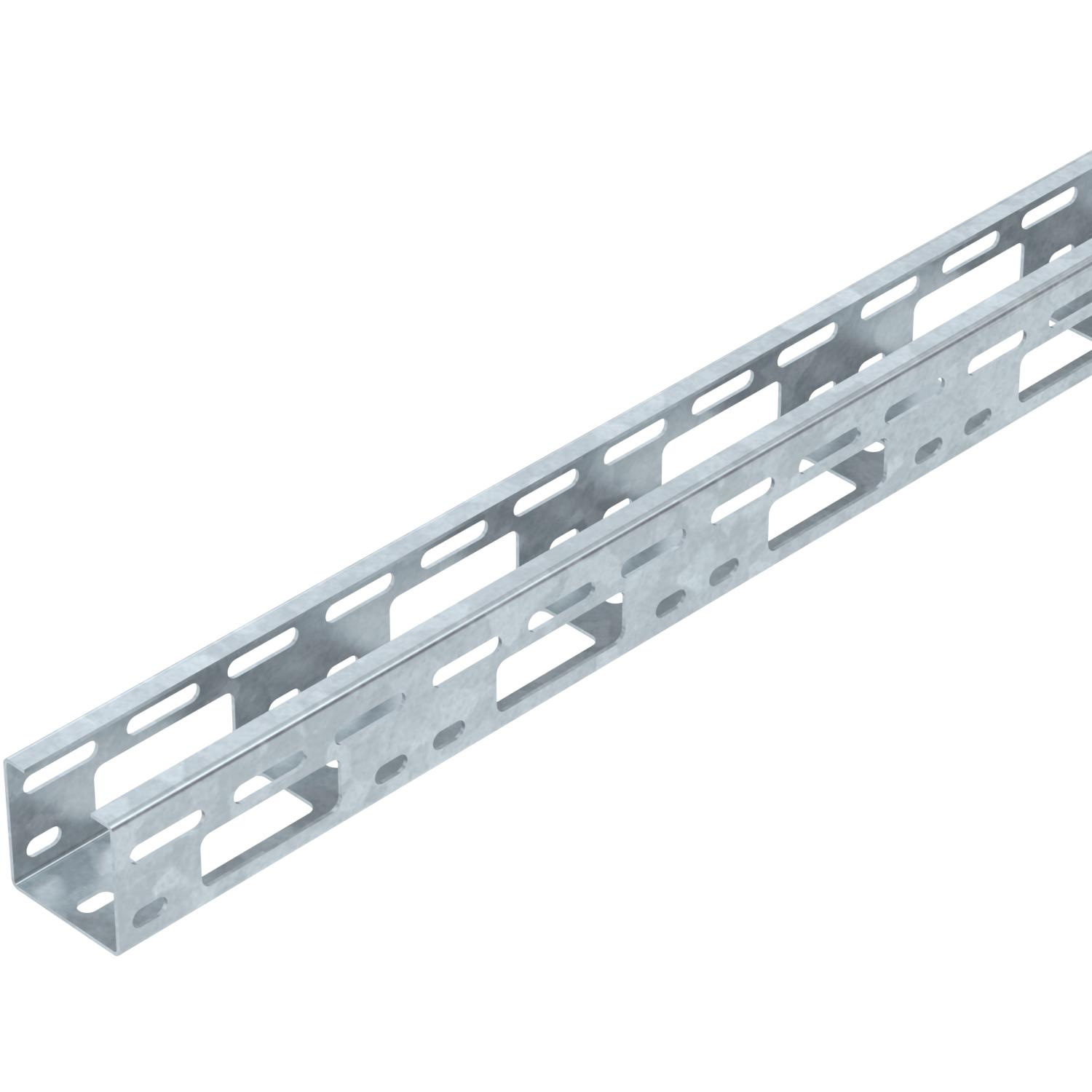

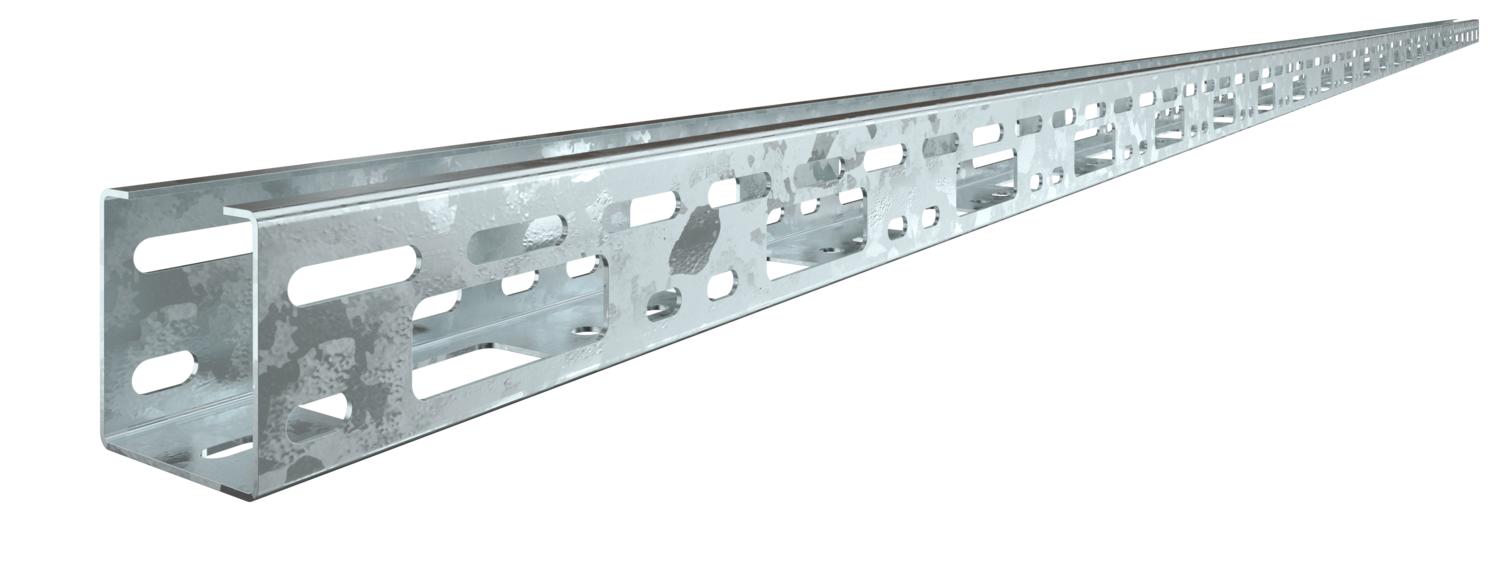

AZ small duct 50 FT

Item no. 6075142 | EAN 4012196069019

6075142 / AZK 050 FT
3000 mm
50 mm
1.5 mm
no
Product description

Product description

AZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Magnetic shield insulation
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Connector version Without connectors
Dimension 50 x 50 x 1,5
Dimension 50x50x3000
Height 50 mm
Length 3000 mm
Maintain electrical functions no
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 1,5 mm
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.0 m 2,5 kN/m
Support spacing 1.5 m 2 kN/m
Support spacing 2.0 m 1,2 kN/m
Support spacing 2.5 m 0,85 kN/m
Support spacing 3.0 m 0,5 kN/m
Surface Hot-dip galvanised
Usable cross-section 2500 mm²
Usable cross-section 25 cm²
Wide-span version no
Width 50 mm

Technical data

Load diagram, AZ channel

Load diagram, AZ channel
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Item no. Quantity SSU
AZK 050 FT 3000 mm 50 mm 1.5 mm no 6075142
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Straight and angle connector 50 FT Straight and angle connector 50 FT VF AZK FT 6066550
25 piece
915 PE cable protection ring 915 PE cable protection ring KSR-915 PE 6066704
25 piece
Cable protection ring 910 PE Cable protection ring 910 PE KSR-910 PE 6066712
25 piece
Cover with turn buckle DD Cover with turn buckle DD AZDMD 50 DD 6080154
3 m

Mounting accessories

Products Types Item no. Quantity SSU

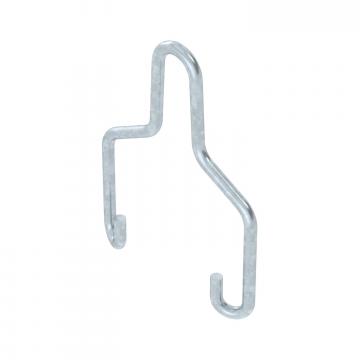

Suspension bracket 50 FT Suspension bracket 50 FT AHB 50 D4 FT 6066505
50 piece
