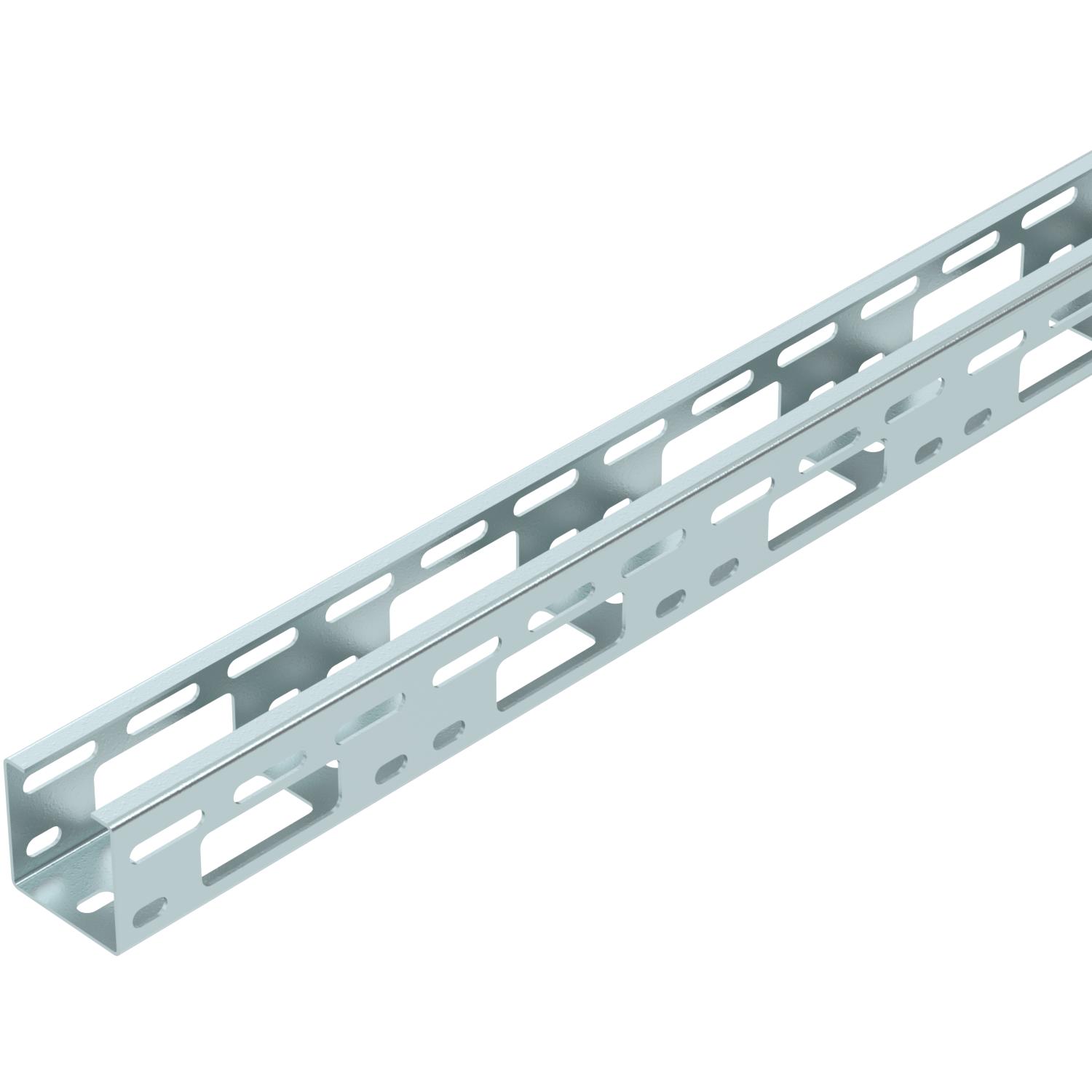

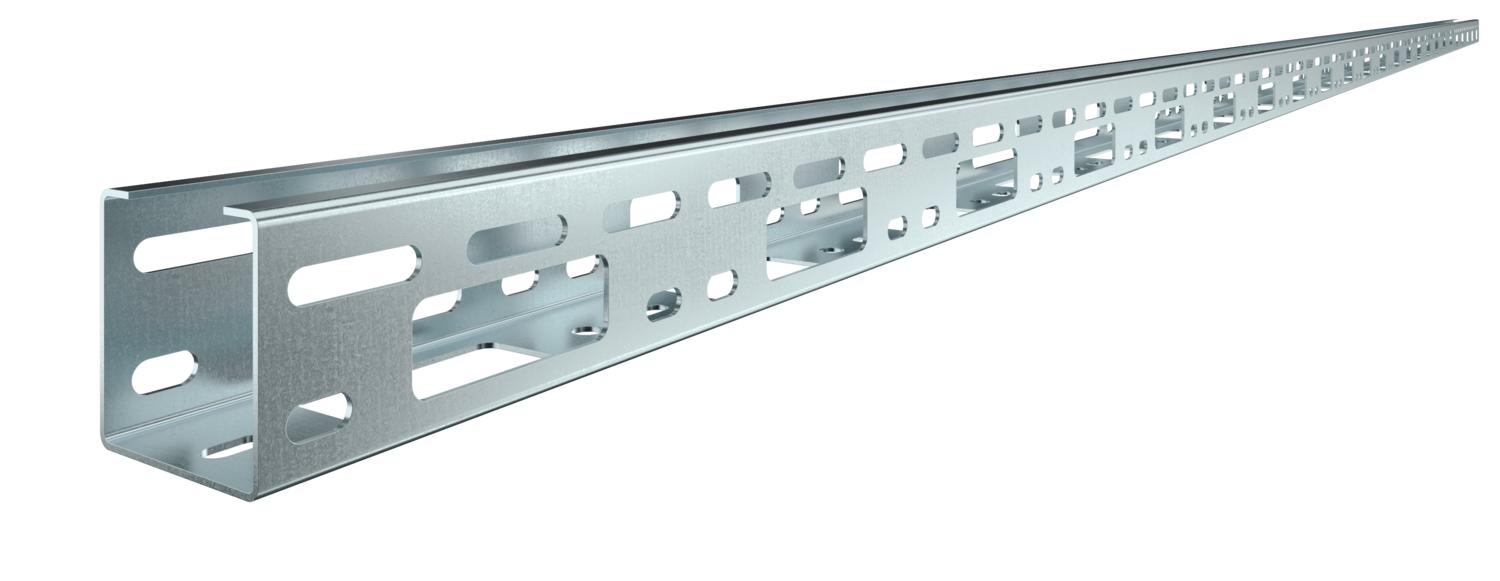

AZ small duct 50 FS

Item no. / Types	6075096 / AZK 050 FS

Length	3000 mm

Width	50 mm

Plate thickness	1.5 mm

Maintain electrical functions	no

Product description

Product description

AZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Connector version	Without connectors
Dimension	50x50x3000
Dimension	50 x 50 x 1,5
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

Height	50 mm
Length	3000 mm

Width	50 mm

Support spacing 2.5 m	0,85 kN/m
Support spacing 3.0 m	0,5 kN/m

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Item no.	Quantity	SSU
AZK 050 FS	3000 mm	50 mm	1.5 mm	no	6075096	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Suspension bracket 50 FT	AHB 50 D4 FT	6066505	piece	50 piece
Straight and angle connector 50 FT	VF AZK FT	6066550	piece	25 piece
Straight connector 50 FS	VF AZK 50 FS	6066615	piece	25 piece
915 PE cable protection ring	KSR-915 PE	6066704	piece	25 piece
Cable protection ring 910 PE	KSR-910 PE	6066712	piece	25 piece
Cover with turn buckle FS	AZDMD 50 FS	6080138	m	3 m
