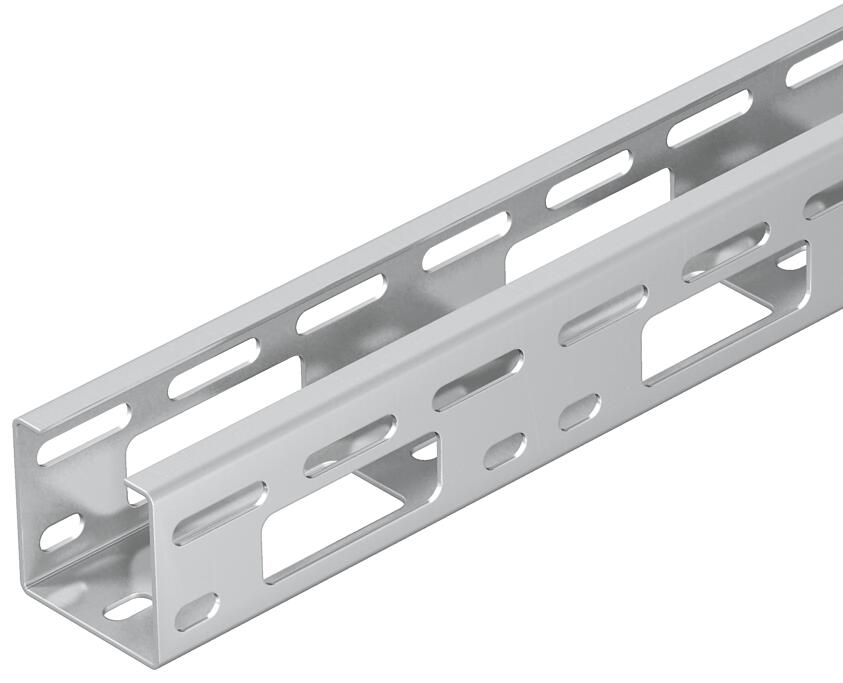

AZ small duct 50 A4
Item no. 6075152 | EAN 4012195866213
- Product description
-
Product descriptionAZ small duct with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Colour stainless steel Connector version Without connectors CO₂ Footprint (GWP) Cradle-to-Gate 9,319 kg CO₂e / 1 Meter Dimension 50x50x3000 Dimension B 50 mm Height 50 mm Length 3000 mm Maintain electrical functions no Material Stainless steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1,5 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.0 m 2,5 kN/m Support spacing 1.5 m 2 kN/m Support spacing 2.0 m 1,2 kN/m Support spacing 2.5 m 0,85 kN/m Support spacing 3.0 m 0,5 kN/m Surface Bright, treated Usable cross-section 2500 mm² Usable cross-section 25 cm² Wide-span version no Width 50 mm Technical data
Load diagram, AZ channel
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no. Quantity SSU
915 PE cable protection ring
KSR-915 PE 6066704 25 piece
Cable protection ring 910 PE
KSR-910 PE 6066712 25 piece - Downloads
-
Data sheet AZK 050 A4 / 6075152 , 0.30MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity AZK 050 A4 / 6075152 , 0.13MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions Mounting instructions Modular systems , 0.05MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
