AZ small duct 50 A2

Item no. 6075150 | EAN 4012196069071

6075150 / AZK 050 A2
3000 mm
50 mm
1.5 mm
no
Product description
Product description

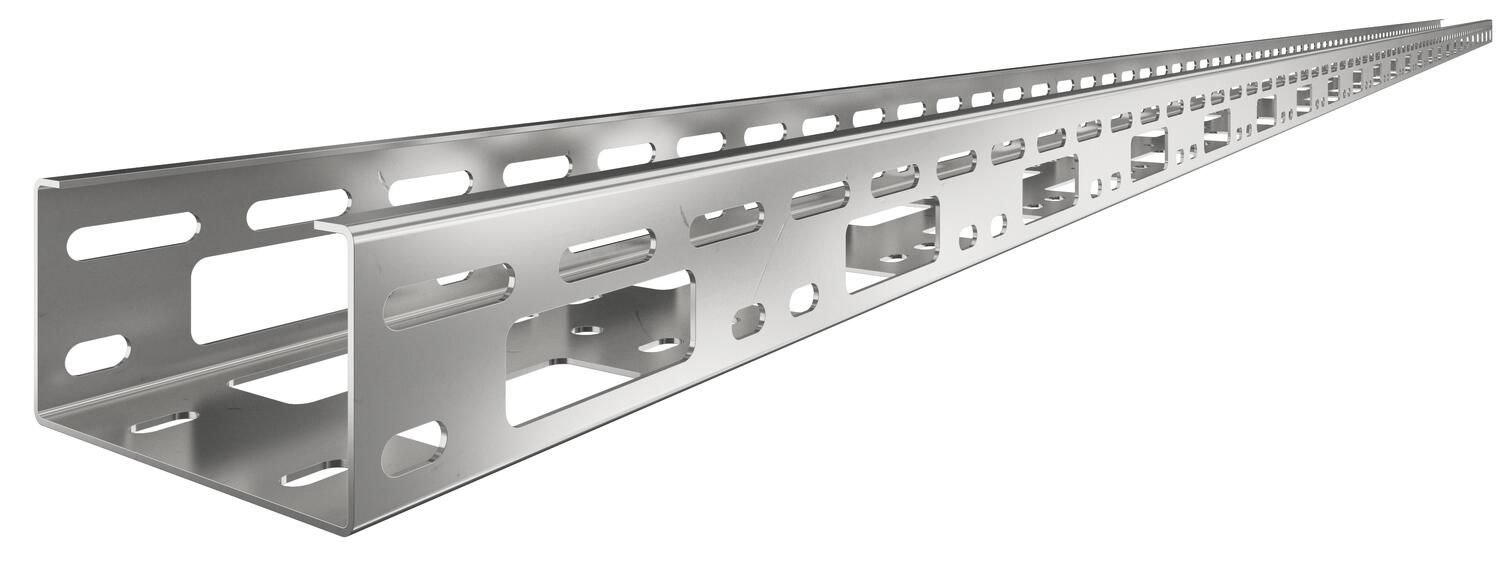

AZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Magnetic shield insulation
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour stainless steel
Connector version Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate 9,314 kg CO₂e / 1 Meter
Dimension 50x50x3000
Dimension B 50 mm
Height 50 mm
Length 3000 mm
Maintain electrical functions no
Material Stainless steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 1,5 mm
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.0 m 2,5 kN/m
Support spacing 1.5 m 2 kN/m
Support spacing 2.0 m 1,2 kN/m
Support spacing 2.5 m 0,85 kN/m
Support spacing 3.0 m 0,5 kN/m
Surface Bright, treated
Usable cross-section 25 cm²
Usable cross-section 2500 mm²
Wide-span version no
Width 50 mm

Technical data

Load diagram, AZ channel

Load diagram, AZ channel
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Item no. Quantity SSU
AZK 050 A2 3000 mm 50 mm 1.5 mm no 6075150
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Straight and angle connector A2 Straight and angle connector A2 VF AZK A2 6066569
10 piece

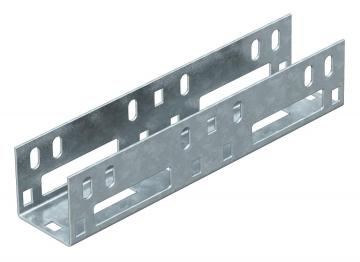

50 A2 straight connector 50 A2 straight connector VF AZK 50 A2 6066629
25 piece
915 PE cable protection ring 915 PE cable protection ring KSR-915 PE 6066704
25 piece
Cable protection ring 910 PE Cable protection ring 910 PE KSR-910 PE 6066712
25 piece
Cover with turn buckle A2 Cover with turn buckle A2 AZDMD 50 A2 6080197
3 m

Mounting accessories

Products Types Item no. Quantity SSU

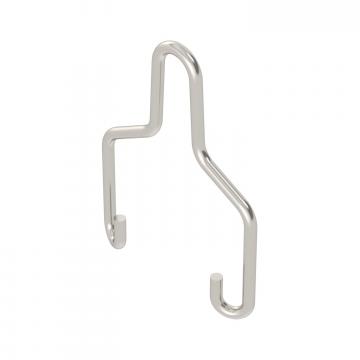

A4 suspension bracket 50 A4 suspension bracket 50 AHB 50 D4 A4 6066508
50 piece
Downloads

Download

Download
Download

EU declaration of conformity AZK 050 A2 / 6075150 , 0.13MB , pdf
Download
REACH Declaration of conformity AZK 050 A2 / 6075150 , 0.12MB , pdf
Download
RoHS Declaration of conformity AZK 050 A2 / 6075150 , 0.12MB , pdf
Download

Download
Download

Download
Download

AZK 050 A2 / 6075150
Download
