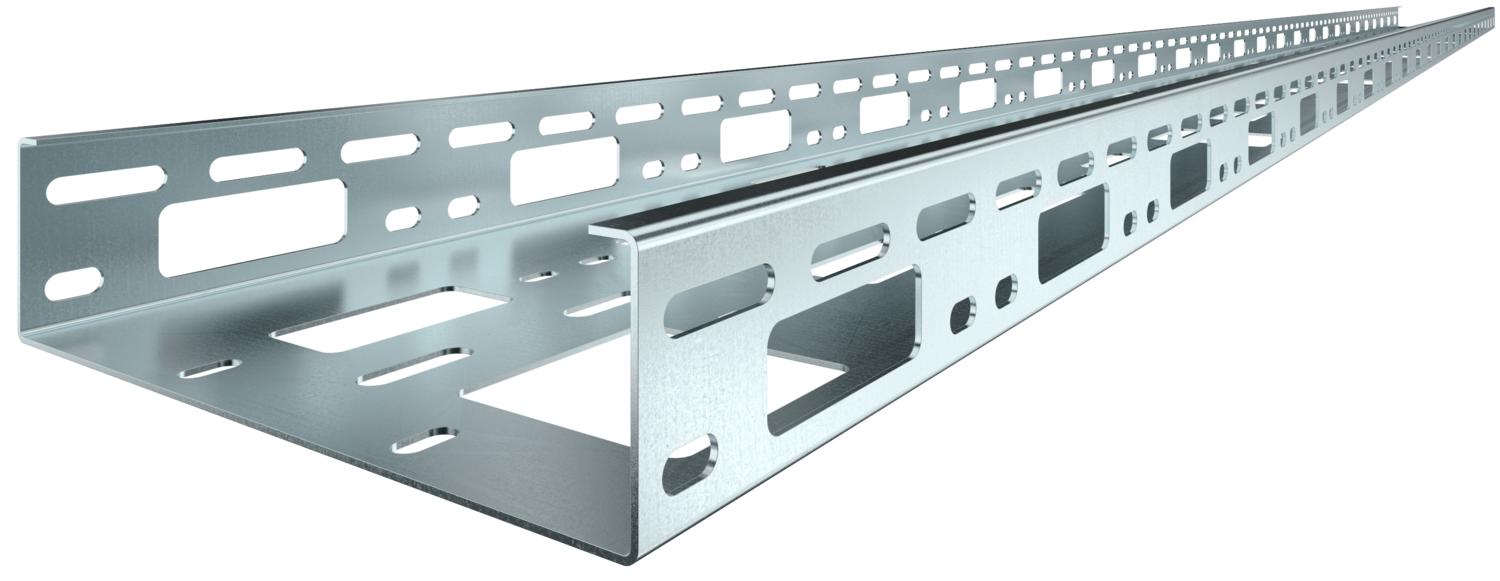

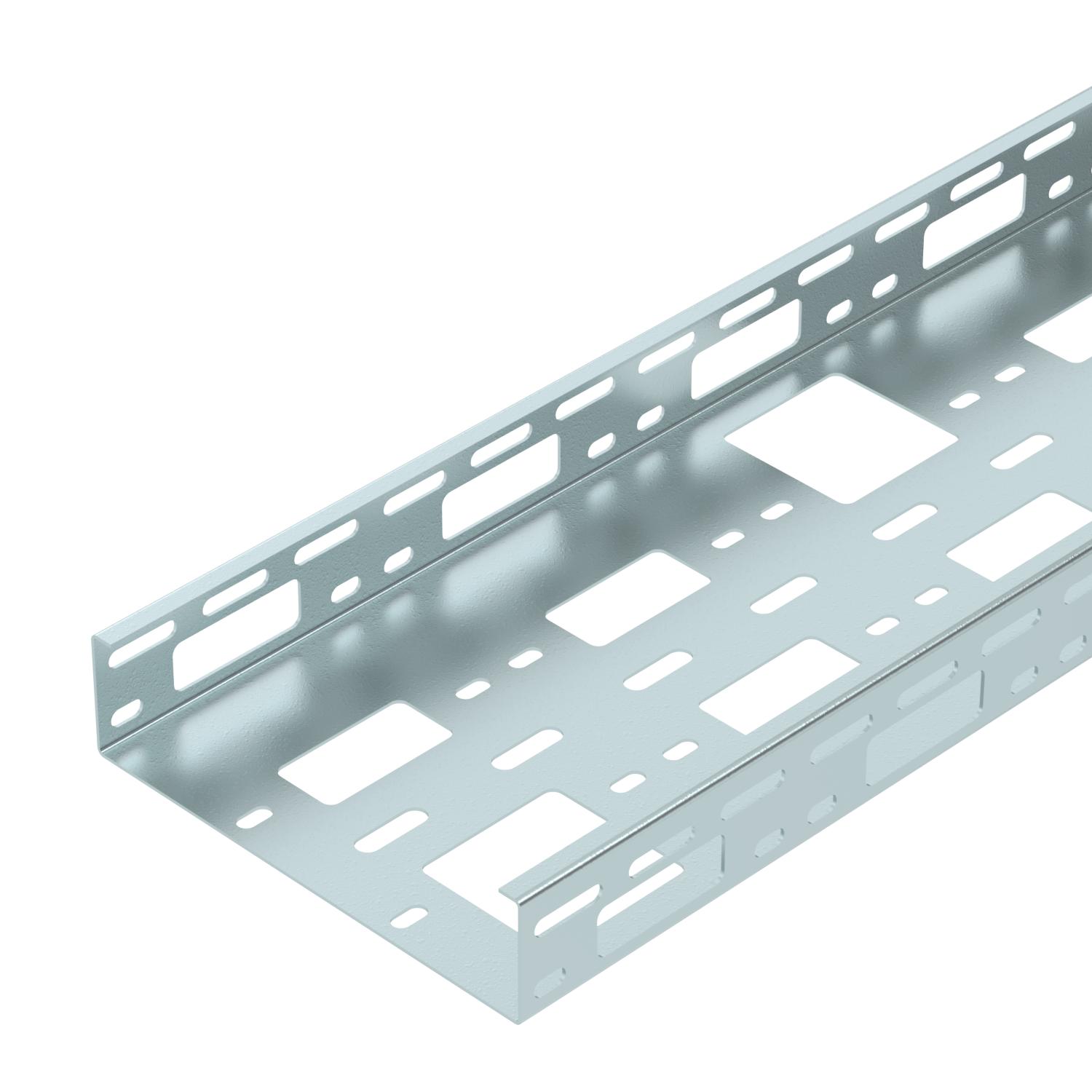

AZ small duct 200 FS
Item no. 6075345 | EAN 4012195811183
- Product description
-
Product descriptionAZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-
- Technical data
-
Technical data
Colour zinc Connector version Without connectors CO₂ Footprint (GWP) Cradle-to-Gate 8,469 kg CO₂e / 1 Meter Dimension 50x200x3000 Dimension 50x200x1,5 Height 50 mm Length 3000 mm Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1,5 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.0 m 2,5 kN/m Support spacing 1.5 m 1,9 kN/m Support spacing 2.0 m 1,3 kN/m Support spacing 2.5 m 0,8 kN/m Support spacing 3.0 m 0,3 kN/m Surface Strip galvanized Usable cross-section 10000 mm² Usable cross-section 100 cm² Wide-span version no Width 200 mm Technical data
Load diagram, AZ channel
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no. Quantity SSU
Straight and angle connector 50 FT
VF AZK FT 6066550 25 piece
915 PE cable protection ring
KSR-915 PE 6066704 25 piece
Cable protection ring 910 PE
KSR-910 PE 6066712 25 piece

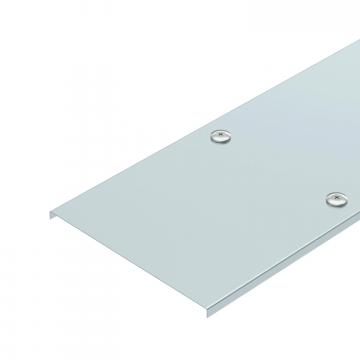

Cover with turn buckle FS
AZDMD 200 FS 6080885 3 m - Downloads
-
