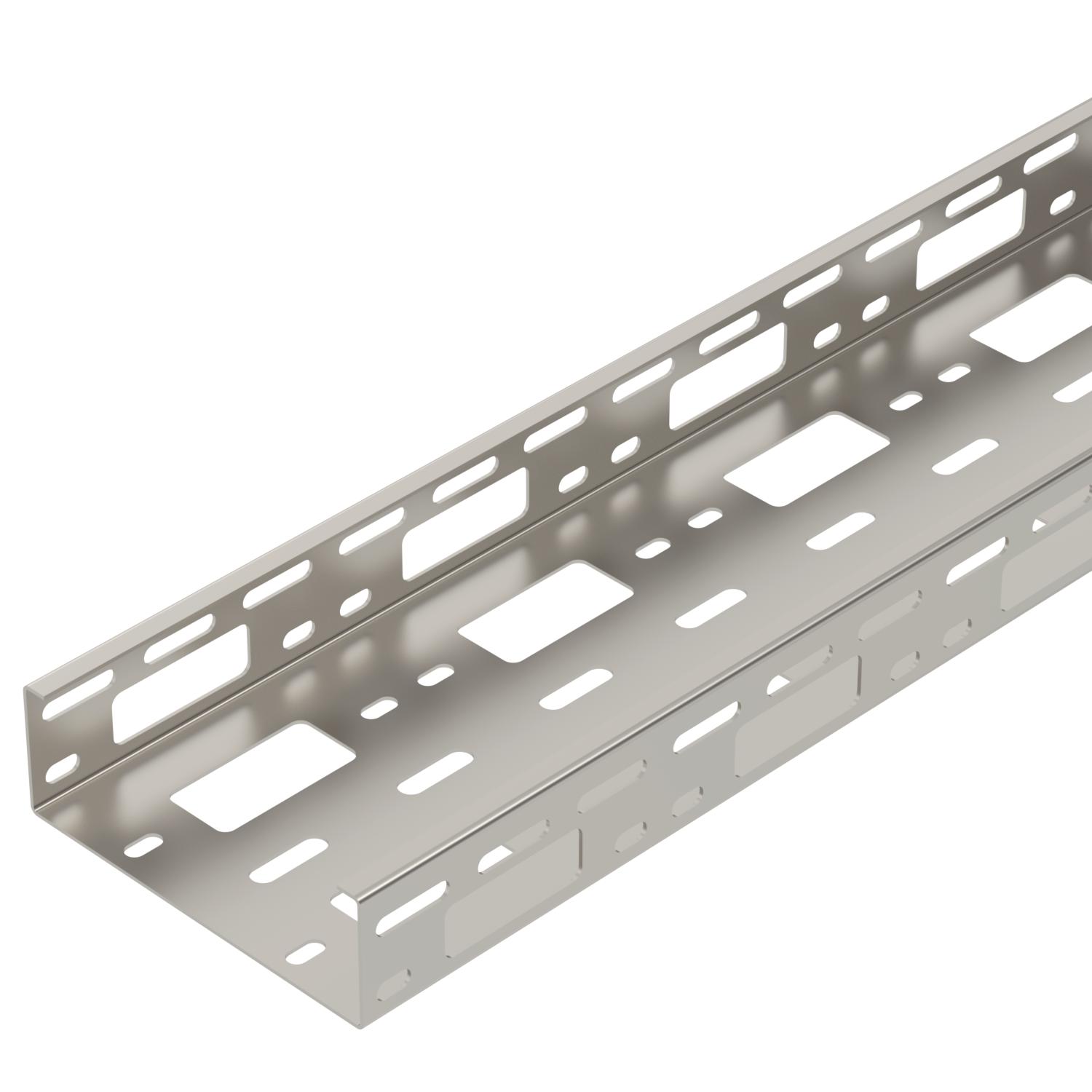

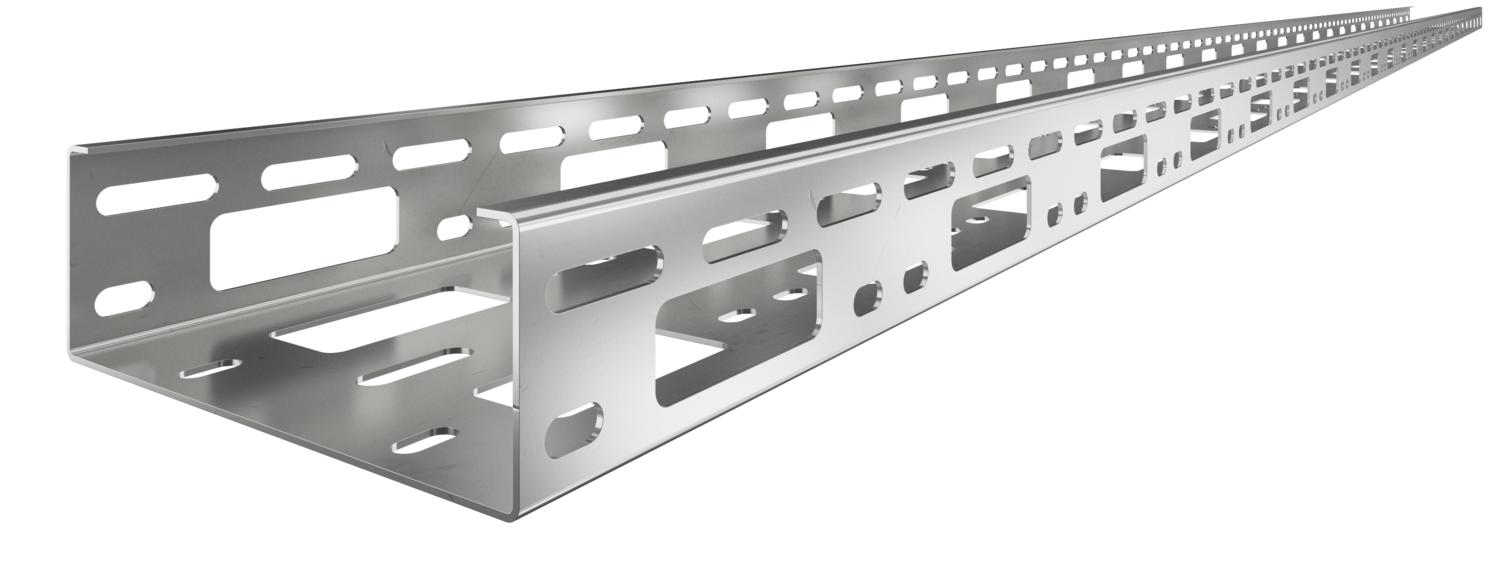

AZ small duct 150 A2

Item no. 6075330 | EAN 4012195811145

6075330 / AZK 150 A2
3000 mm
150 mm
1.5 mm
no
Product description
Product description
AZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Magnetic shield insulation
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour stainless steel
Connector version Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate 21,195 kg CO₂e / 1 Meter

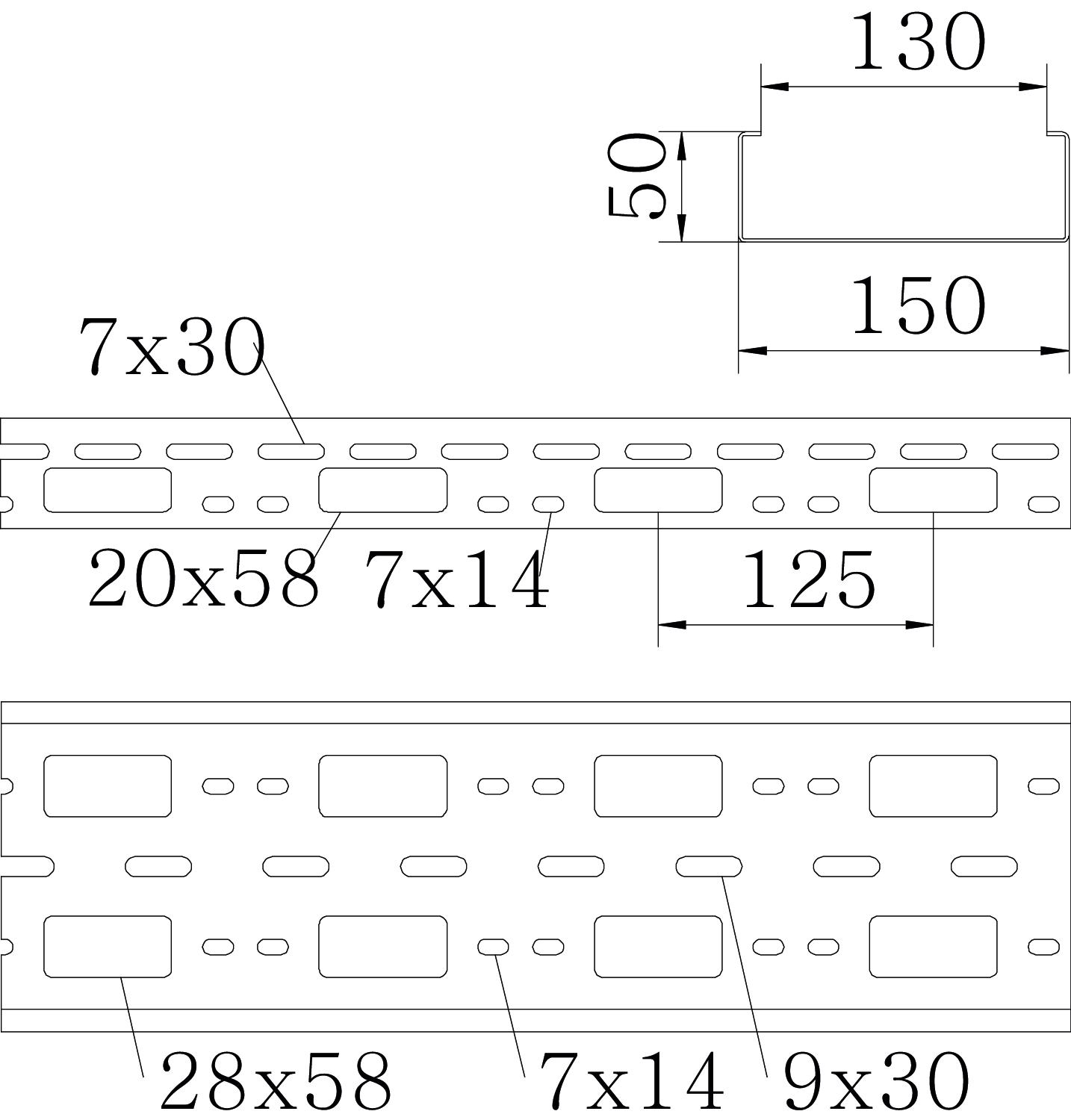

Dimension 50x150x3000
Dimension 50x150x1,5
Dimension B 150 mm
Height 50 mm
Length 3000 mm
Maintain electrical functions no
Material Stainless steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 1,5 mm
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.0 m 3 kN/m
Support spacing 1.5 m 2 kN/m
Support spacing 2.0 m 1,2 kN/m
Support spacing 2.5 m 0,8 kN/m
Support spacing 3.0 m 0,25 kN/m
Surface Bright, treated
Usable cross-section 7500 mm²
Usable cross-section 75 cm²
Wide-span version no
Width 150 mm

Technical data

Load diagram, AZ channel

Load diagram, AZ channel
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Item no. Quantity SSU
AZK 150 A2 3000 mm 150 mm 1.5 mm no 6075330
3 m
