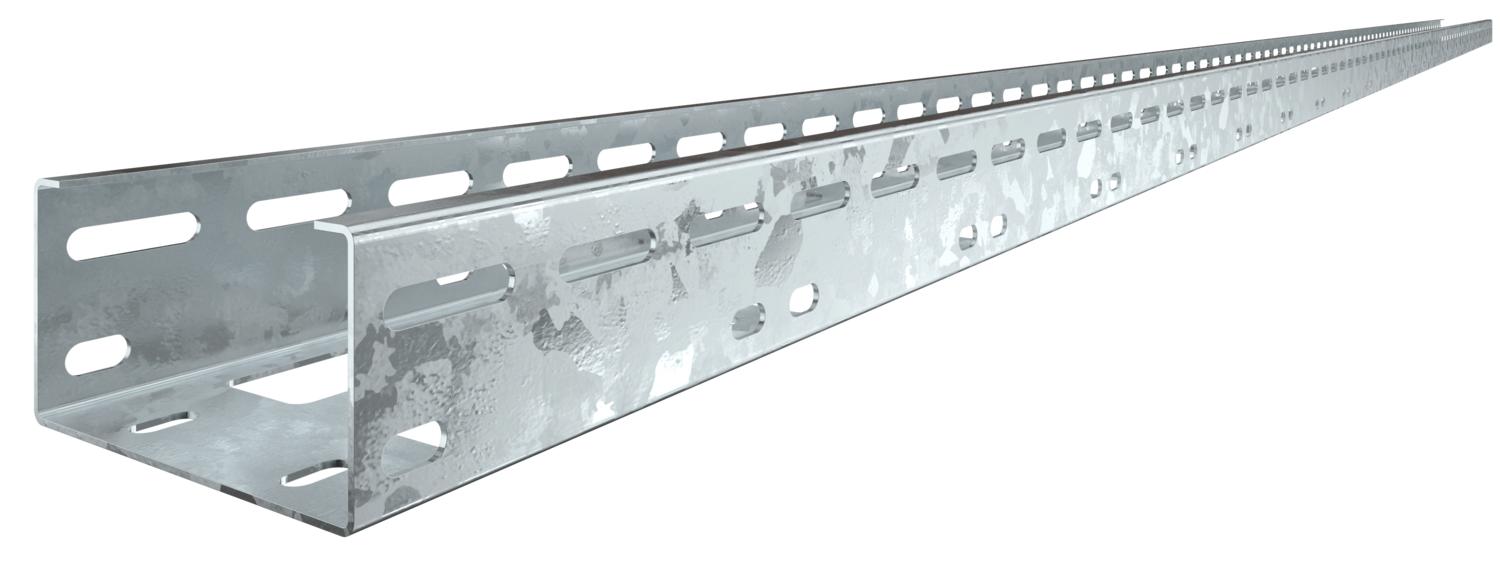

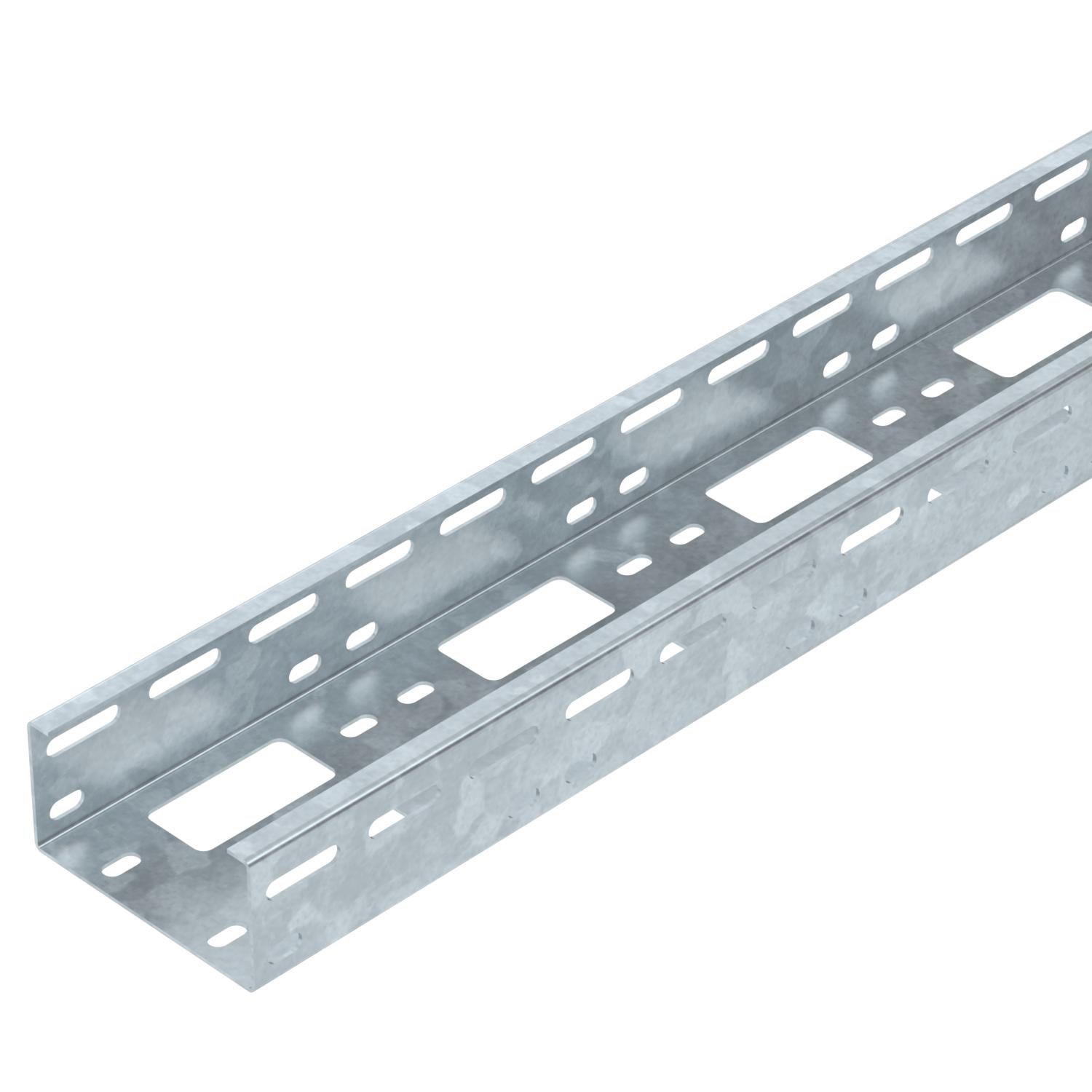

AZ small duct 100 FT, without side windows
Item no. 6076246 | EAN 4012196069378
- Product description
-
Product descriptionAZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
-

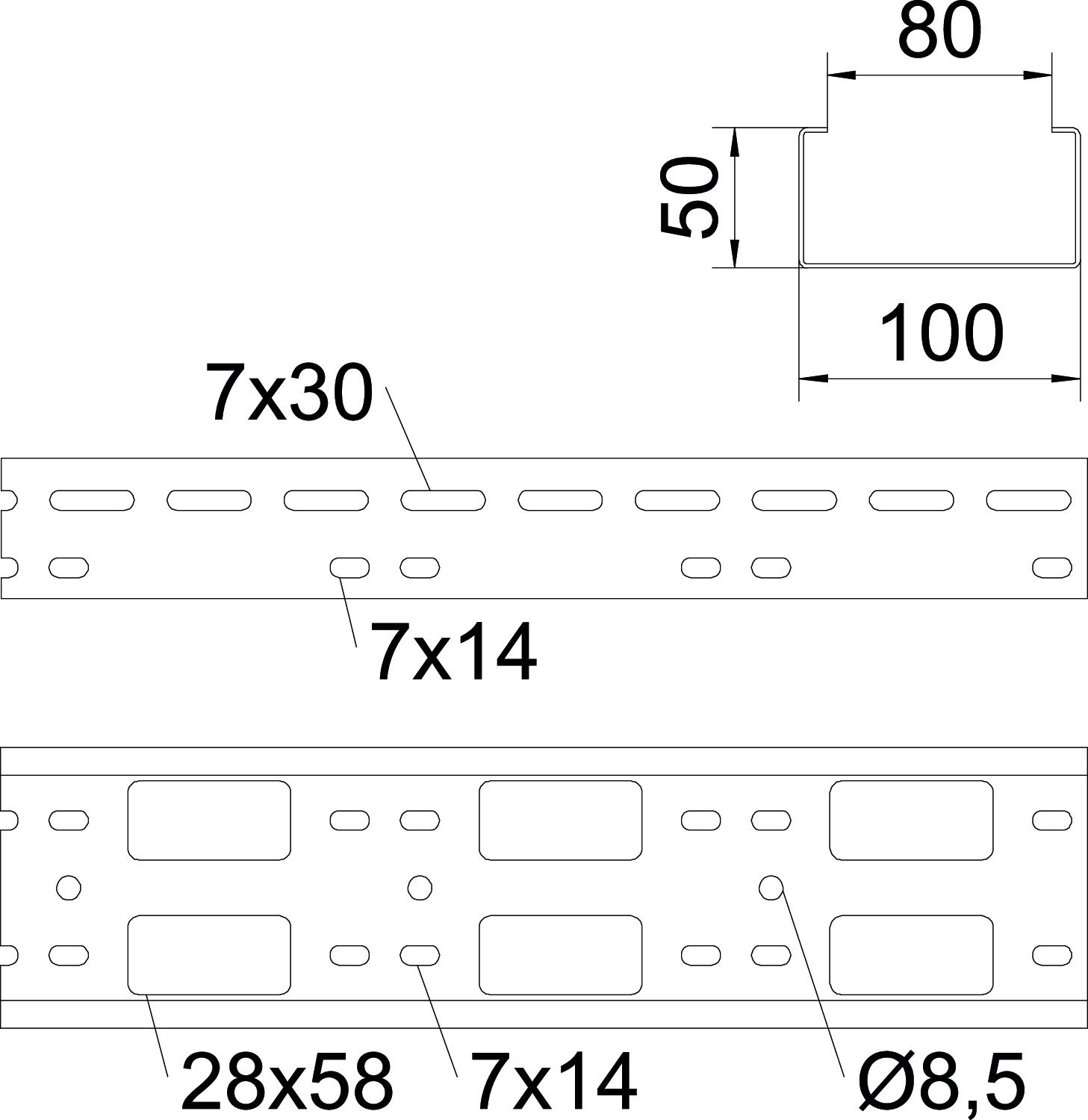

- Technical data
-
Technical data
Colour zinc Connector version Without connectors CO₂ Footprint (GWP) Cradle-to-Gate 5,464 kg CO₂e / 1 Meter Dimension 50x100x3000 Height 50 mm Length 3000 mm Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1,5 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.0 m 3 kN/m Support spacing 1.5 m 2,4 kN/m Support spacing 2.0 m 1,4 kN/m Support spacing 2.5 m 0,8 kN/m Support spacing 3.0 m 0,25 kN/m Surface Hot-dip galvanised Usable cross-section 5000 mm² Usable cross-section 50 cm² Wide-span version no Width 100 mm Technical data

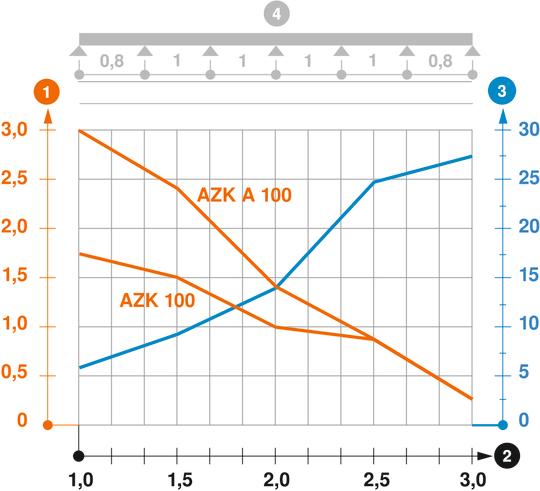

Load diagram, AZ channel
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no. Quantity SSU

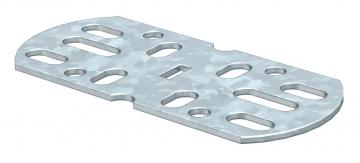

Straight and angle connector 50 FT
VF AZK FT 6066550 25 piece

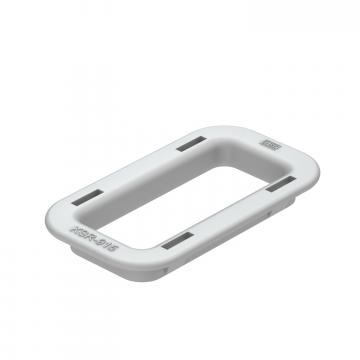

915 PE cable protection ring
KSR-915 PE 6066704 25 piece

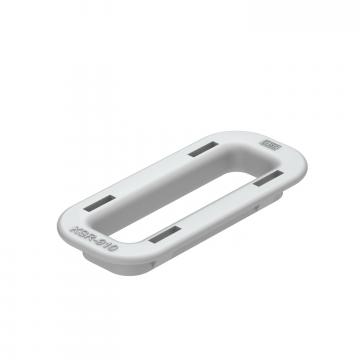

Cable protection ring 910 PE
KSR-910 PE 6066712 25 piece

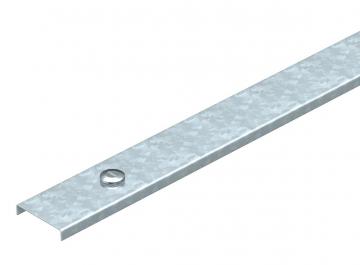

Cover with turn buckle DD
AZDMD 100 DD 6080235 3 m - Downloads
-
