Product description

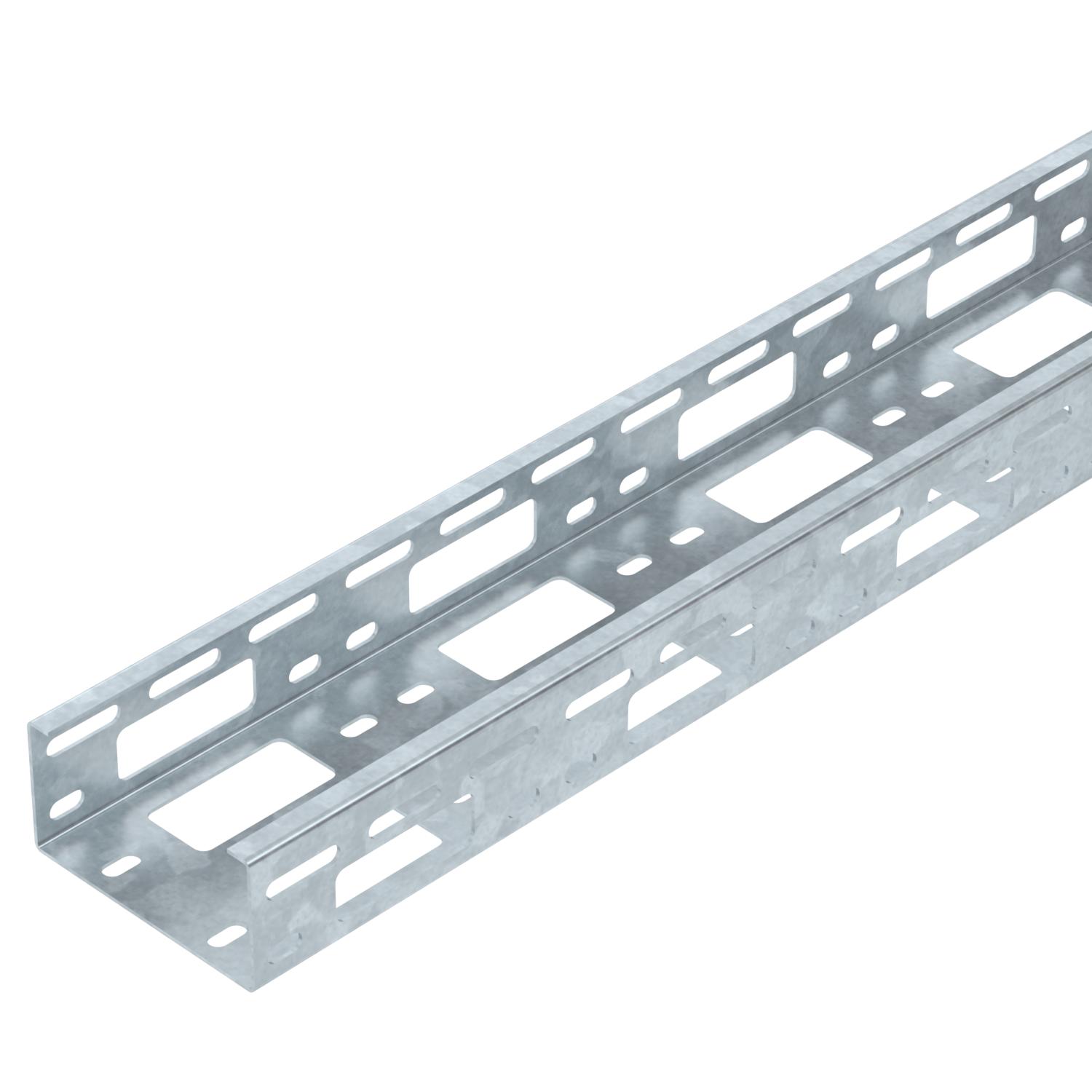

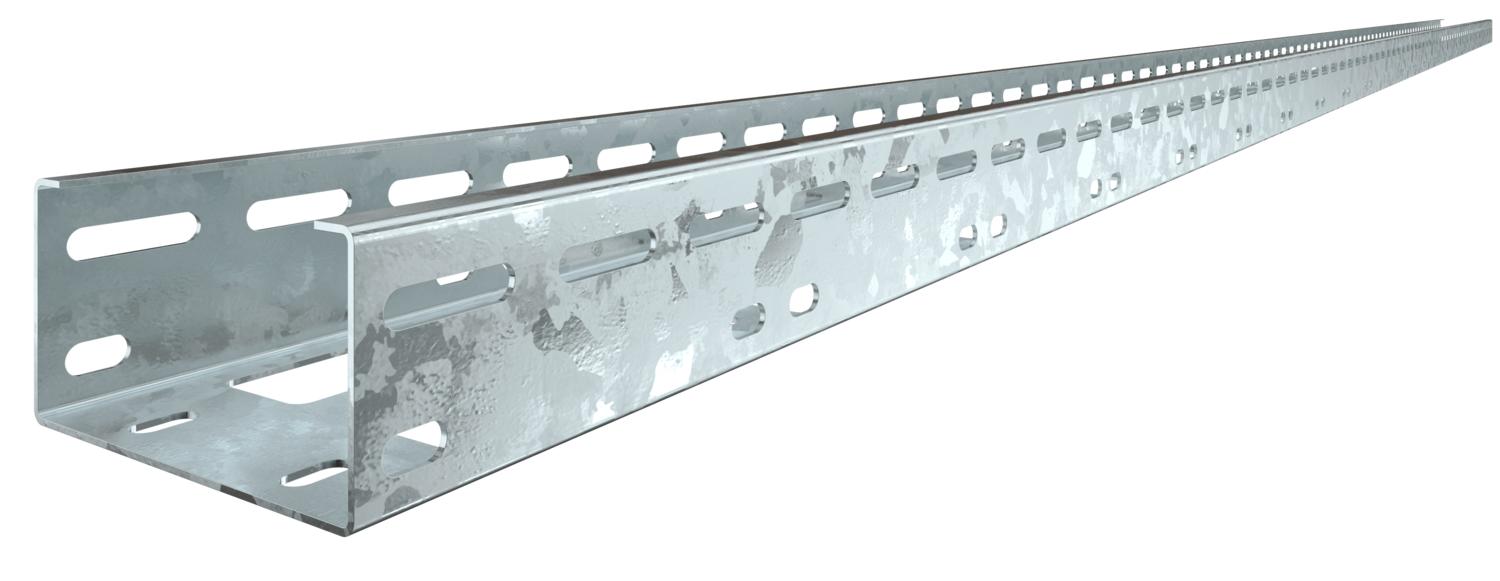

AZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
- Technical data
-
Technical data
Connector version Without connectors Dimension 100 x 50 x 1,5 Dimension 50x100x3000 Maintain electrical functions no Material Steel Mounting perforation in base yes NATO hole pattern no Plate thickness 1,5 mm Rustproof steel, pickled no Side perforation yes Surface Hot-dip galvanised Usable cross-section 5000 mm² Usable cross-section 50 cm² Wide-span version no Dimensions

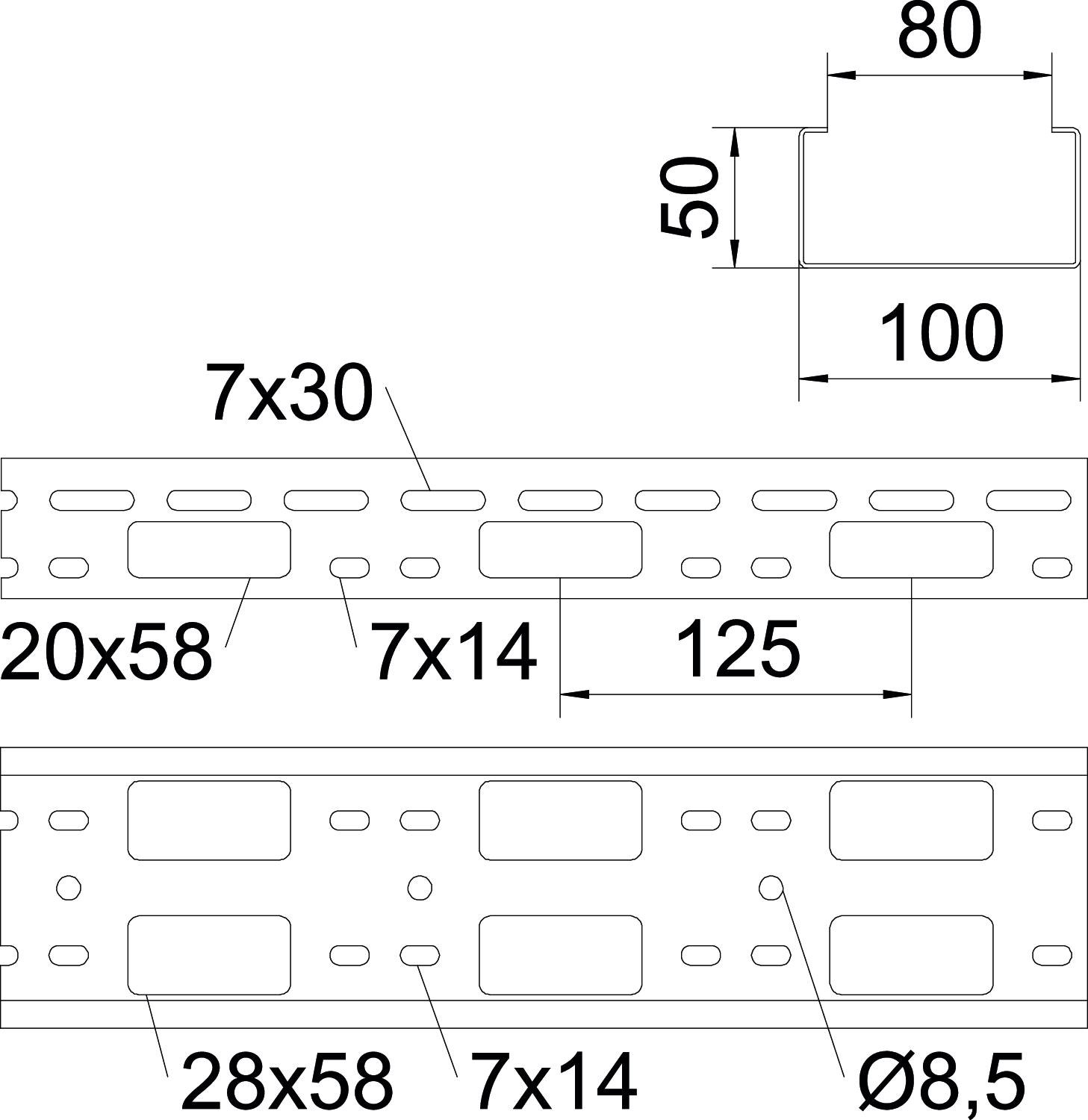

Height 50 mm Length 3000 mm Width 100 mm Loads
Support spacing 1.0 m 1,7 kN/m Support spacing 1.5 m 1,5 kN/m Support spacing 2.0 m 1 kN/m Support spacing 2.5 m 0,8 kN/m Support spacing 3.0 m 0,25 kN/m Technical data
Load diagram, AZ channel
- Permitted cable tray/ladder load in kN/m without man load
- Support width in m
- Rail bend in mm at permitted kN/m
- Load scheme during testing
- Load curve with cable tray/ladder width in mm
- Strut bend curve according to support width
- All types
