AZ small duct 100 A2 3000 | 100 | 1.5 | no
morepic-1 morepic-2 video-1

AZ small duct 100 A2

Item no. 6075304 | EAN 4012196069255

6075304 / AZK 100 A2
3000 mm
100 mm
1.5 mm
no
Product description

Product description

AZ channel with a side height of 50 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Magnetic shield insulation
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Connector version Without connectors
Dimension 50x100x3000
Dimension B 100 mm
Height 50 mm
Length 3000 mm
Maintain electrical functions no
Material Stainless steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 1,5 mm
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.0 m 1,7 kN/m
Support spacing 1.5 m 1,5 kN/m
Support spacing 2.0 m 1 kN/m
Support spacing 2.5 m 0,8 kN/m
Support spacing 3.0 m 0,25 kN/m
Surface Bright, treated
Usable cross-section 50 cm²
Usable cross-section 5000 mm²
Wide-span version no
Width 100 mm

Technical data

Load diagram, AZ channel

Load diagram, AZ channel
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Item no. Quantity SSU
AZK 100 A2 3000 mm 100 mm 1.5 mm no 6075304
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Straight and angle connector A2 Straight and angle connector A2 VF AZK A2 6066569
10 piece
915 PE cable protection ring 915 PE cable protection ring KSR-915 PE 6066704
25 piece
Cable protection ring 910 PE Cable protection ring 910 PE KSR-910 PE 6066712
25 piece
Cover with turn buckle A2 Cover with turn buckle A2 AZDMD 100 A2 6080294
3 m

Mounting accessories

Products Types Item no. Quantity SSU

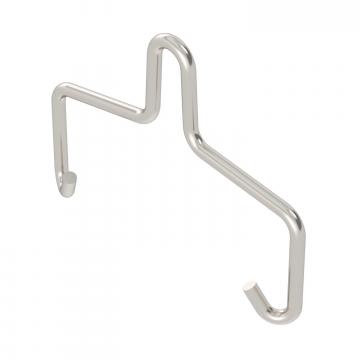

A4 suspension bracket 100 A4 suspension bracket 100 AHB 100 D5 A4 6066514
50 piece
Downloads

Download

Download
Download

Declaration of conformity AZK 100 A2 / 6075304 , 0.13MB , pdf
Download
REACH Declaration of conformity AZK 100 A2 / 6075304 , 0.12MB , pdf
Download
RoHS Declaration of conformity AZK 100 A2 / 6075304 , 0.12MB , pdf
