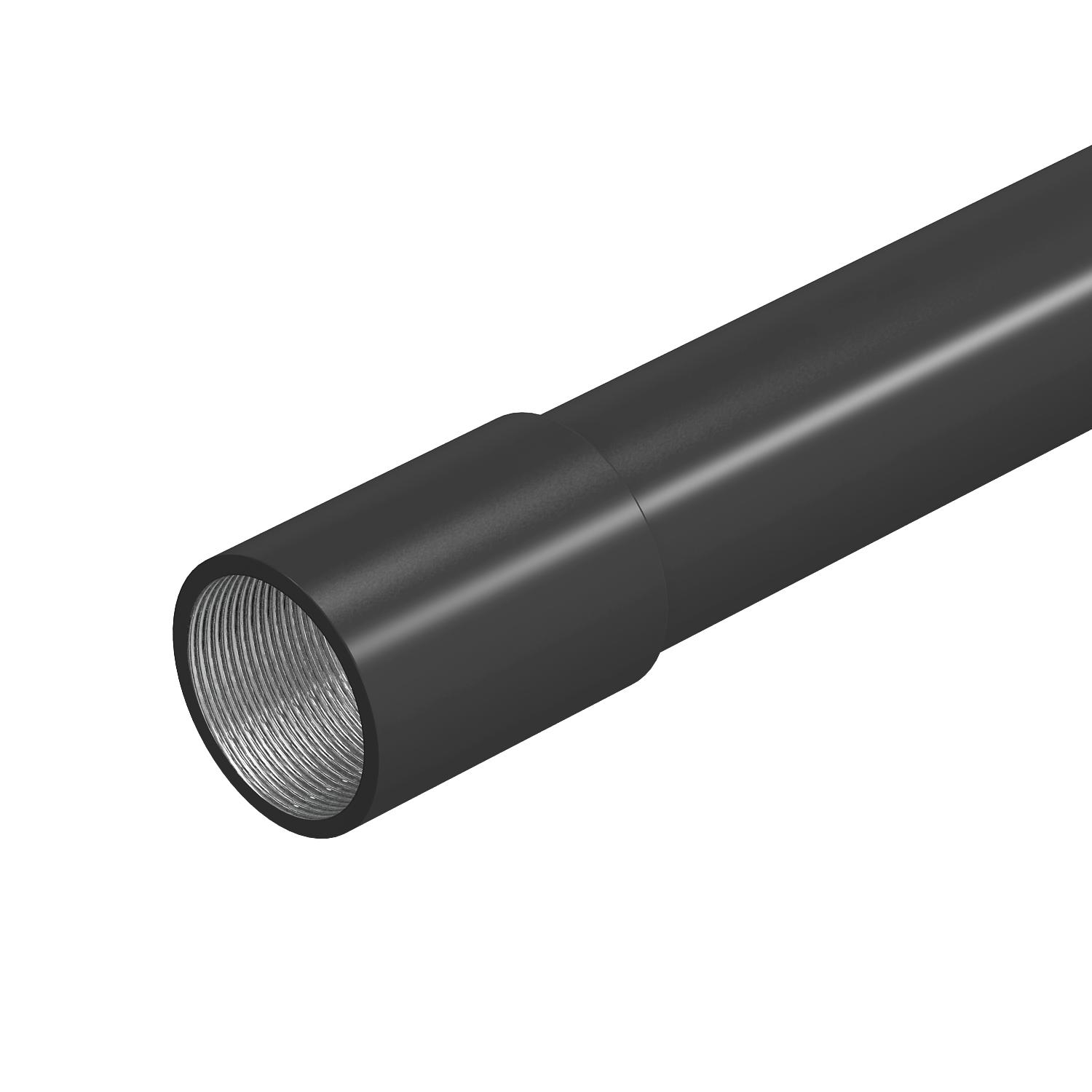

Armoured steel pipe with thread, black

Item no. 2046507 | EAN 4012195781141

3000 mm
Product description

Product description

Electrical installation pipe according to EN 61386-1 with threaded ends to EN 60423 for mechanical protection of cables.

With burr-free inner wall. One coupling is already screwed onto each pipe.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Function maintenance class E30
  • Function maintenance class E90
Technical data

Technical data

Brushed surface no
Cavity wall installation yes
Classification code 55561
Colour Jet black; RAL 9005
Concealed yes
Concrete installation yes
Connection 1, installation pipe Sleeve
Connection 2, installation pipe External thread (metric)

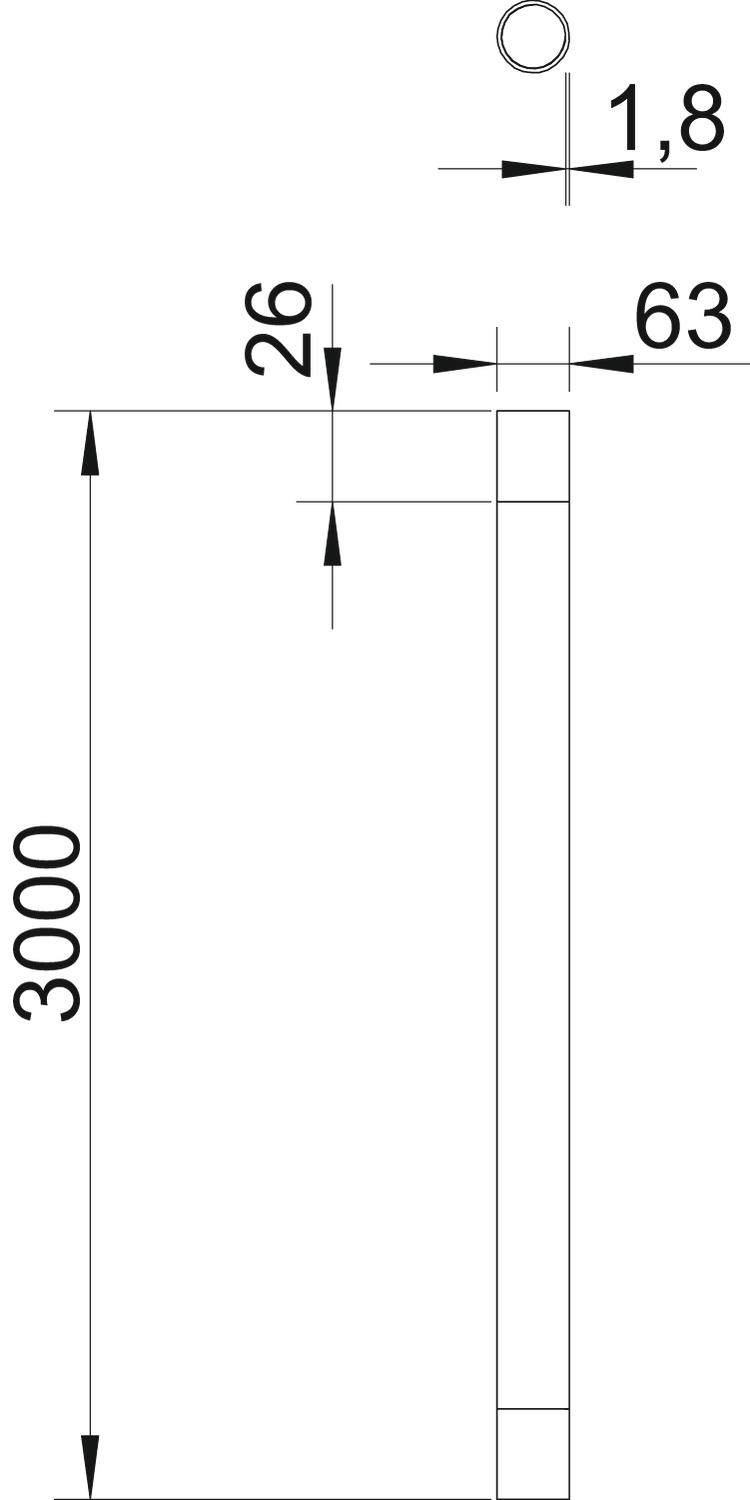

Dimension M63, 3000mm
Dimension D 63 mm
Dimension l 25 mm
Dimension L 3000 mm
Dimension m (mm) M63
Dimension t 1,7 mm
External diameter 63 mm
Installation in the earth no
Installation on wood yes
Installation outdoors no
Length 3000 mm
Machines and system installation yes
Material Steel
Permitted temperature range, max. 250 °C
Permitted temperature range, min. -45 °C
Pipe version Rigid with thread
Polished surface no
Surface PES50 - Polyester/epoxy
Surface-mounted yes
Thread M63x1,5
Underfloor installation (bitumen, hot asphalt) yes
Underfloor installation (screed) yes
With sleeve yes
All types

All types

Types Dimension D Dimension L Dimension t Thread Item no. Quantity SSU
SM16W SW 16 mm 3000 mm 1.3 mm M16x1,5 2046500
30 m
SM20W SW 20 mm 3000 mm 1.5 mm M20x1,5 2046501
30 m
SM25W SW 25 mm 3000 mm 1.5 mm M25x1,5 2046502
30 m
SM32W SW 32 mm 3000 mm 1.5 mm M32x1,5 2046503
21 m
SM40W SW 40 mm 3000 mm 1.5 mm M40x1,5 2046505
15 m
SM50W SW 50 mm 3000 mm 1.5 mm M50x1,5 2046506
15 m
SM63W SW 63 mm 3000 mm 1.7 mm M63x1,5 2046507
9 m
Accessories

System accessories

Products Types Item no. Quantity SSU

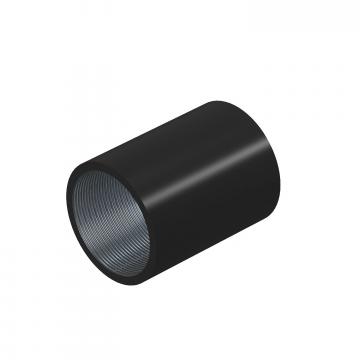

Black powder-coated steel sleeve, with thread Black powder-coated steel sleeve, with thread SVM63W SW 2046528
5 piece

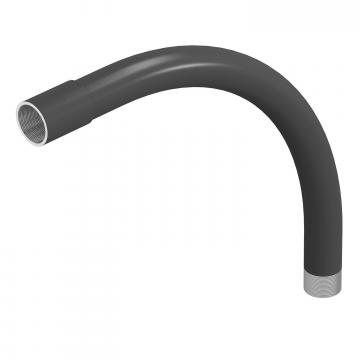

Black powder-coated steel bend, with thread Black powder-coated steel bend, with thread SBNM63 SW 2046799
3 piece

Mounting accessories

Products Types Item no. Quantity SSU
Spacer clip 733 G Spacer clip 733 G ASL 733 63 G 1362788
20 piece

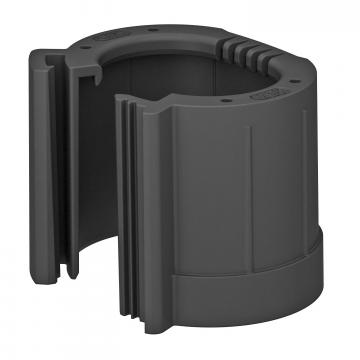

Pipe end cap, splittable, metric, black Pipe end cap, splittable, metric, black 129 TB M63 SW 2047995
20 piece
