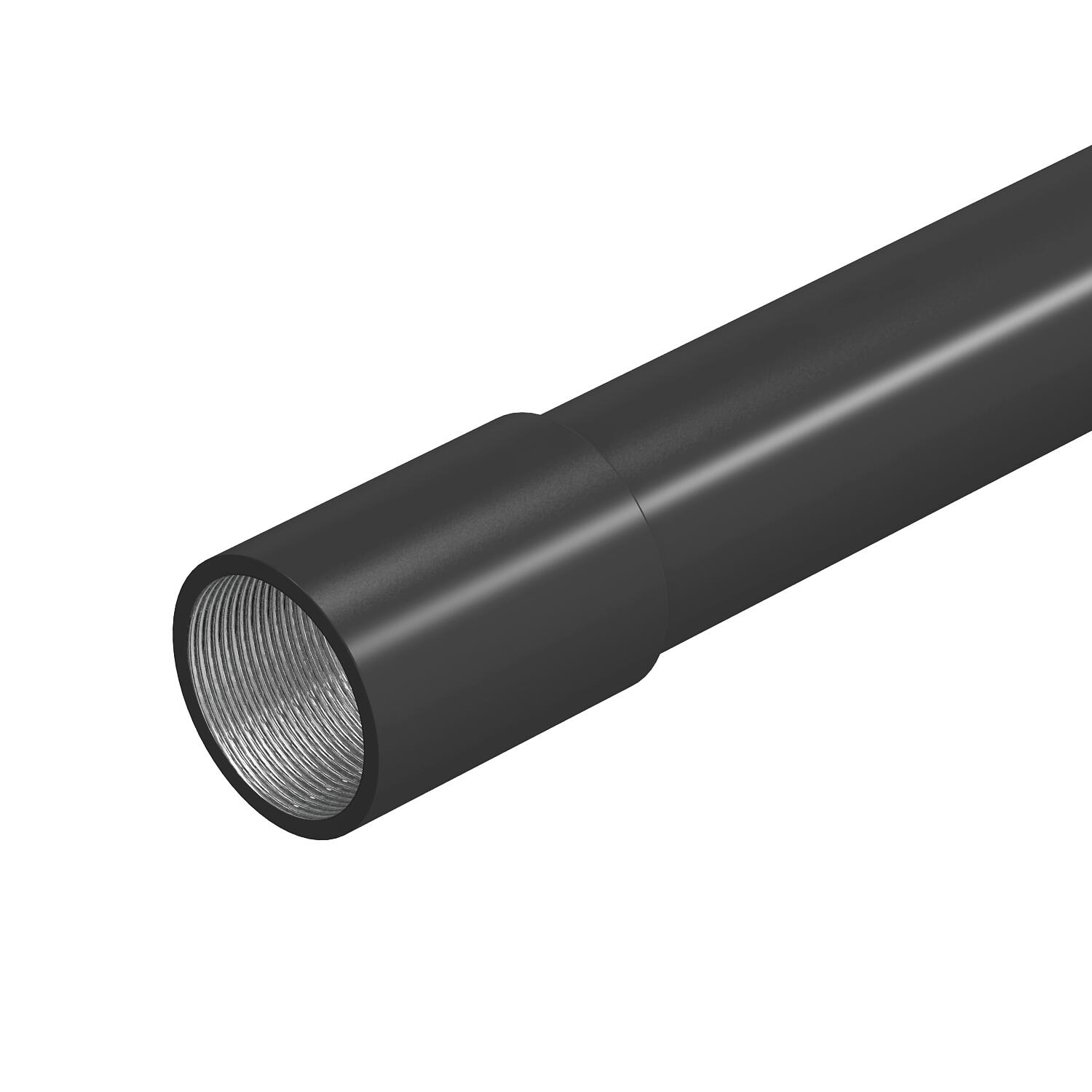

Armoured steel pipe with thread, black 32 | 3000 | 1.5 | M32x1,5

Armoured steel pipe with thread, black

Item no. 2046503 | EAN 4012195781080

Item no. / Types

Dimension D

Dimension L	3000 mm

Dimension t

Thread

Product description

Product description

Electrical installation pipe according to EN 61386-1 with threaded ends to EN 60423 for mechanical protection of cables.

With burr-free inner wall. One coupling is already screwed onto each pipe.

Technical data

Technical data

Brushed surface	no
Cavity wall installation	yes
Classification code	55561
Colour	Jet black; RAL 9005
Concealed	yes
Concrete installation	yes
Connection 1, installation pipe	Sleeve
Connection 2, installation pipe	External thread (metric)
Dimension	M32, 3000mm
External diameter	32 mm
Installation in the earth	no
Installation on wood	yes
Installation outdoors	no

Machines and system installation	yes
Material	Steel
Permitted temperature range, max.	250 °C
Permitted temperature range, min.	-45 °C
Pipe version	Rigid with thread
Polished surface	no
Surface	PES50 - Polyester/epoxy
Surface-mounted	yes
Thread	M32x1,5
Underfloor installation (bitumen, hot asphalt)	yes
Underfloor installation (screed)	yes
With sleeve	yes

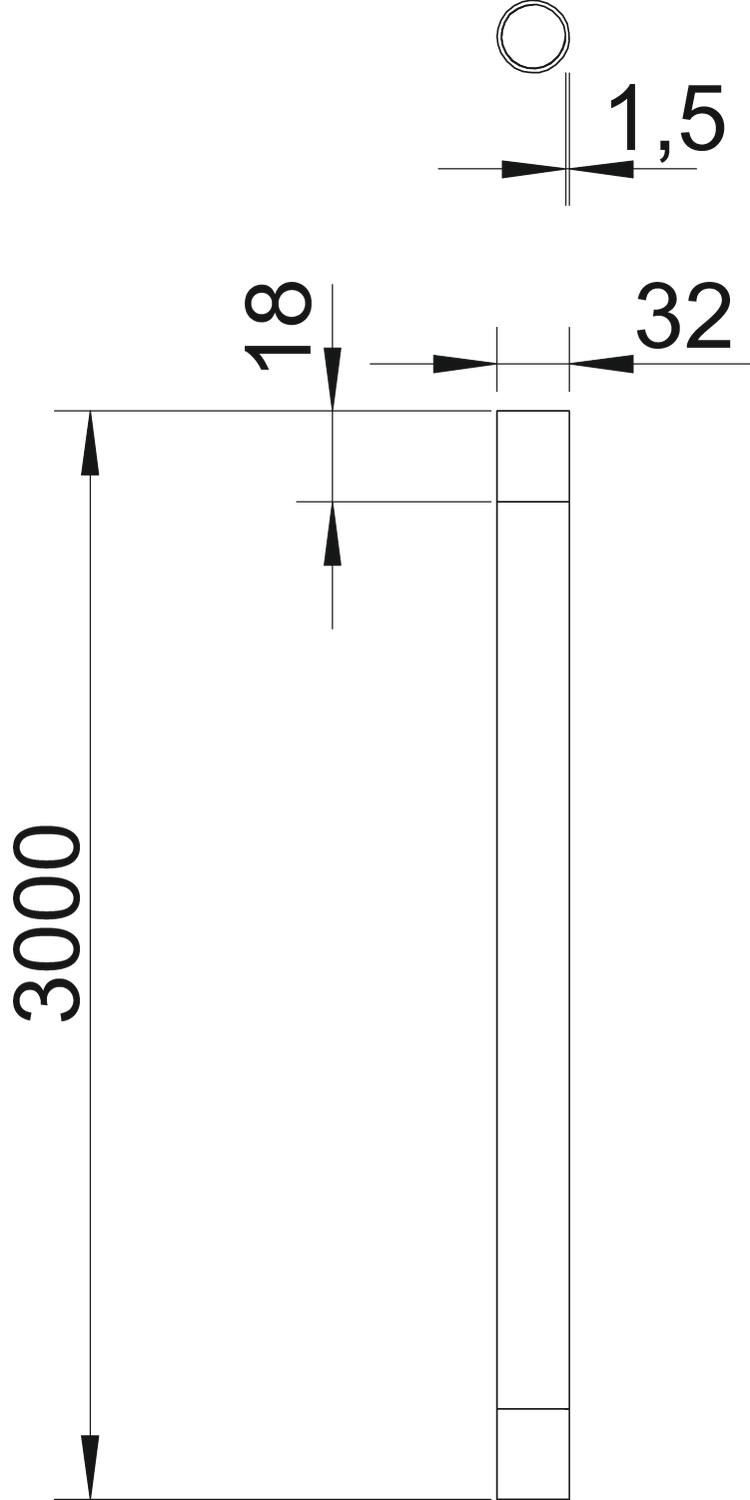

Dimensions

Dimension D	32 mm
Dimension l	18 mm
Dimension L	3000 mm

Dimension m (mm)	M32
Dimension t	1,5 mm
Length	3000 mm

All types

All types

Types	Dimension D	Dimension L	Dimension t	Thread	Item no.	Quantity	SSU
SM16W SW	16 mm	3000 mm	1.3 mm	M16x1,5	2046500	m	30 m
SM20W SW	20 mm	3000 mm	1.5 mm	M20x1,5	2046501	m	30 m
SM25W SW	25 mm	3000 mm	1.5 mm	M25x1,5	2046502	m	30 m
SM32W SW	32 mm	3000 mm	1.5 mm	M32x1,5	2046503	m	21 m
SM40W SW	40 mm	3000 mm	1.5 mm	M40x1,5	2046505	m	15 m
SM50W SW	50 mm	3000 mm	1.5 mm	M50x1,5	2046506	m	15 m
SM63W SW	63 mm	3000 mm	1.7 mm	M63x1,5	2046507	m	9 m
