Angle profile WP40/65 A2

Item no. 6373062 | EAN 4012196199631

Item no. / Types	6373062 / WP 40 65 5000 A2

Length	5000 mm

Plate thickness	4 mm

Product description

Product description

Perforated angle profile for creation of special support structures.

Technical data

Technical data

Breakable	no
Dimension	40x65x5000
Height	40 mm
Length	5000 mm
Maintain electrical functions	no
Material	Stainless steel
Mounting perforation in base	yes
Plate thickness	4 mm

Profile shape	L profile
Side perforation	yes
Surface	Bright, treated
Type of perforation	2 sides perforated
Version for	Single profile
Width	65 mm
With toothing	no

All types

All types

Types	Length	Plate thickness	Item no.	Quantity	SSU
WP 40 65 5000 A2	5000 mm	4 mm	6373062	m	5 m

Downloads

Data sheet WP 40 65 5000 A2 / 6373062 , 0.18MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity WP 40 65 5000 A2 / 6373062 , 0.11MB , pdf

REACH Declaration of conformity WP 40 65 5000 A2 / 6373062 , 0.12MB , pdf

Download

RoHS Declaration of conformity WP 40 65 5000 A2 / 6373062 , 0.13MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

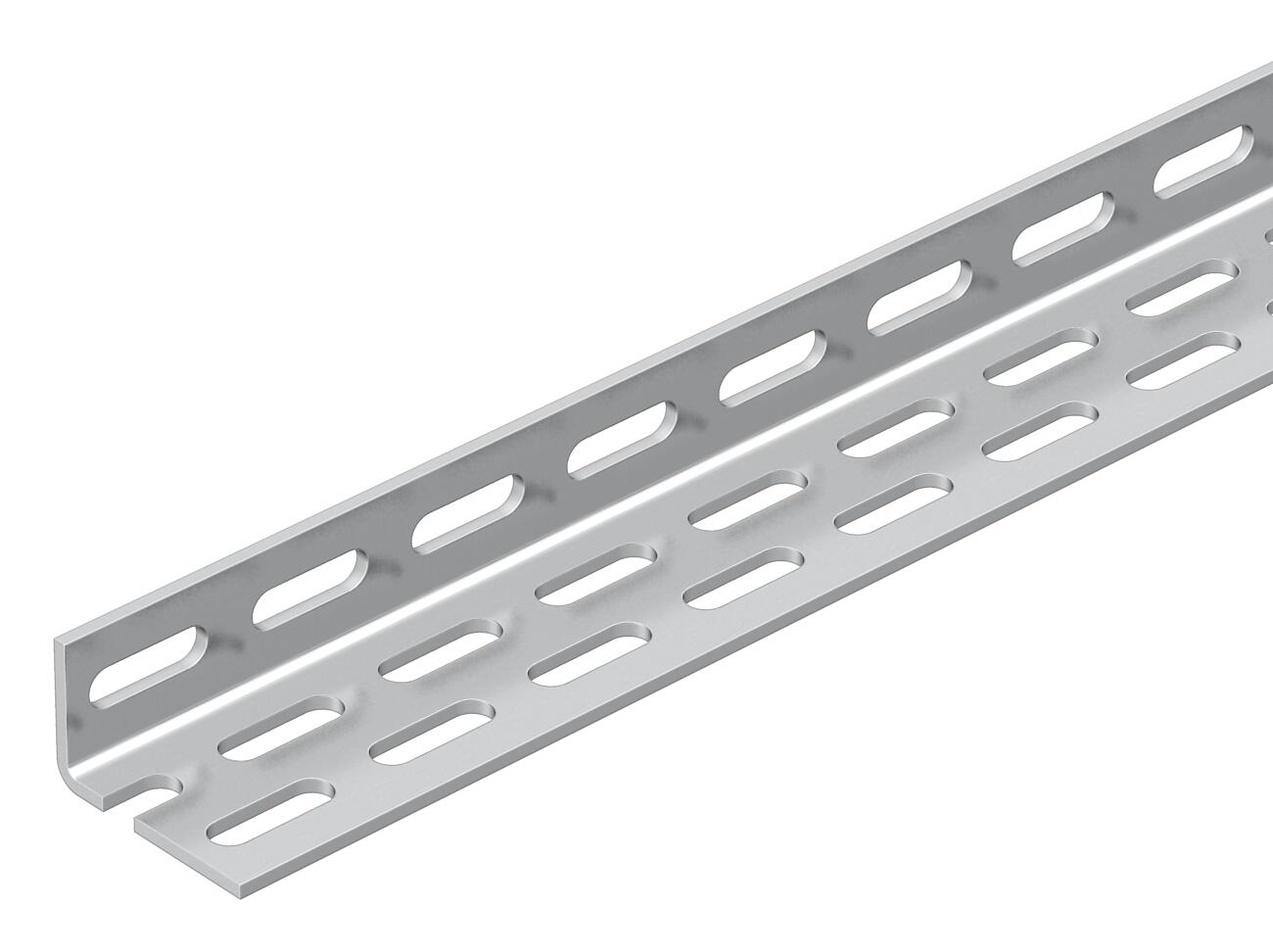

Product graphic WP 40 65 5000 A2 / 6373062, 58.96 kB, jpg

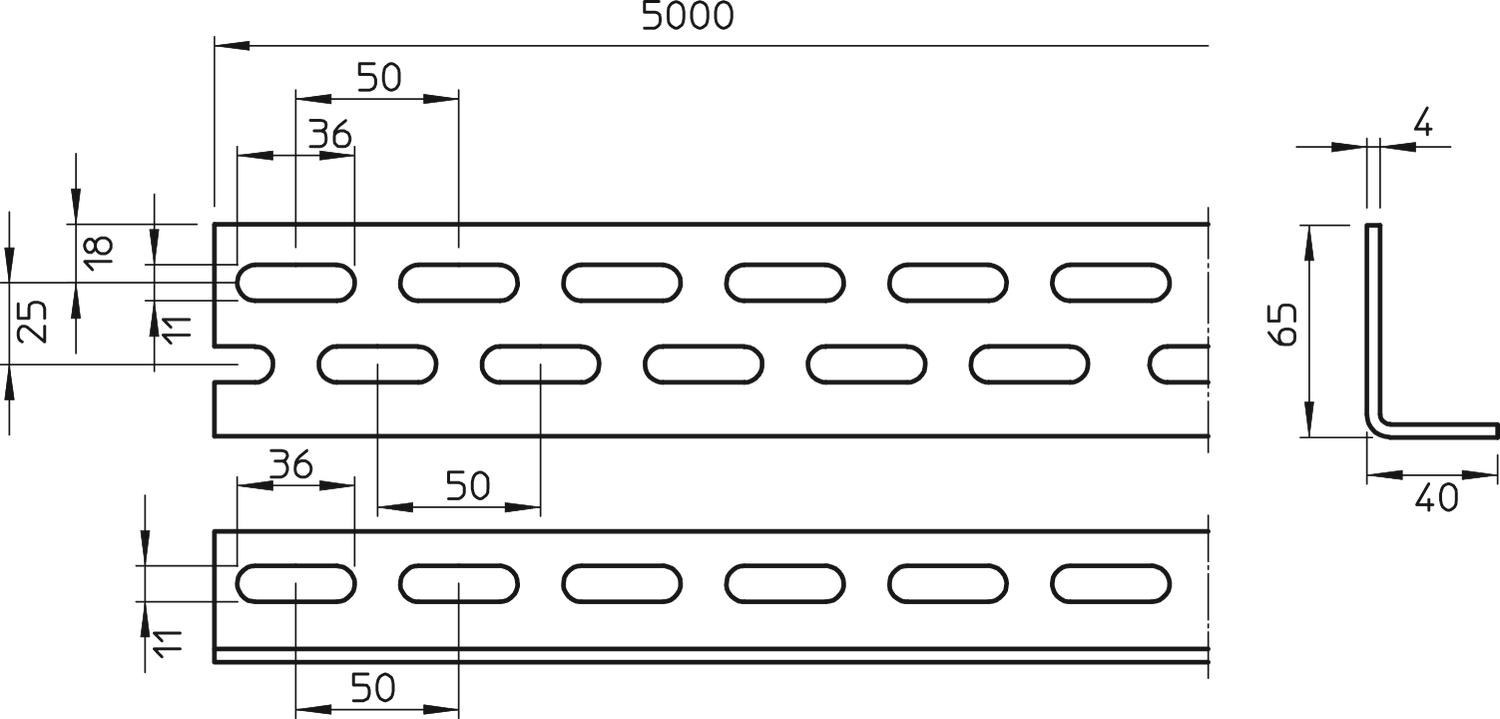

Scale drawing WP 40 65 5000 A2 / 6373062, 62.53 kB, jpg

WP 40 65 5000 A2 / 6373062
