- Product description
-

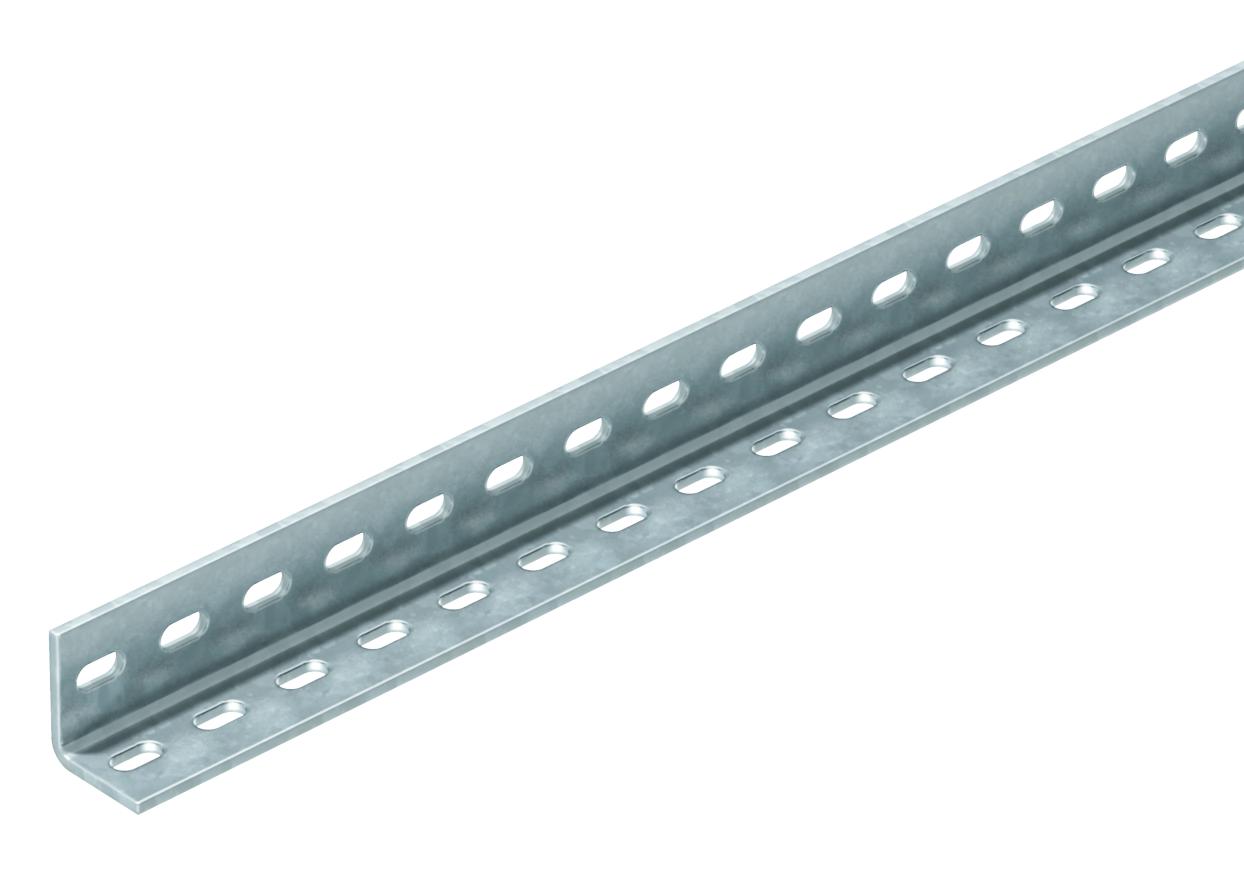

Product descriptionPerforated angle profile for creation of special support structures.
- Technical data
-
Technical data
Breakable no Colour zinc CO₂ Footprint (GWP) Cradle-to-Gate 5,827 kg CO₂e / 1 Piece Dimension 30x35x2000 Height 30 mm Length 2000 mm Maintain electrical functions no Material Steel Mounting perforation in base yes Plate thickness 3 mm Profile shape L profile Side perforation yes Static value A 1,38 cm² Static value ly 1,82 cm Static value lz 1,29 cm Static value Wy 0,75 cm² Static value Wz 0,59 cm² Surface Hot-dip galvanised Type of perforation 2 sides perforated Version for Single profile Width 35 mm With toothing no - All types
- Downloads
-
Data sheet WP 30 35 2000 FT / 6373100 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity WP 30 35 2000 FT / 6373100 , 0.11MB , pdfREACH Declaration of conformity WP 30 35 2000 FT / 6373100 , 0.12MB , pdfRoHS Declaration of conformity WP 30 35 2000 FT / 6373100 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
