Angle profile WESP 50 FT

Item no. 7105673 | EAN 4012195705567

Item no. / Types	7105673 / WESP 50 40 FT

Length	3000 mm

Plate thickness	4 mm

Product description

Product description

Angle profile with longitudinal perforation row to create suspension and support constructions.

Technical data

Technical data

Dimension	40x50x3000
Height	40 mm
Length	3000 mm
Material	Steel

Plate thickness	4 mm
Surface	Hot-dip galvanised
Width	50 mm

All types

All types

Types	Length	Plate thickness	Item no.	Quantity	SSU
WESP 50 40 FT	3000 mm	4 mm	7105673	m	3 m

Downloads

Data sheet WESP 50 40 FT / 7105673 , 0.13MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Solutions for ship construction , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity WESP 50 40 FT / 7105673 , 0.11MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

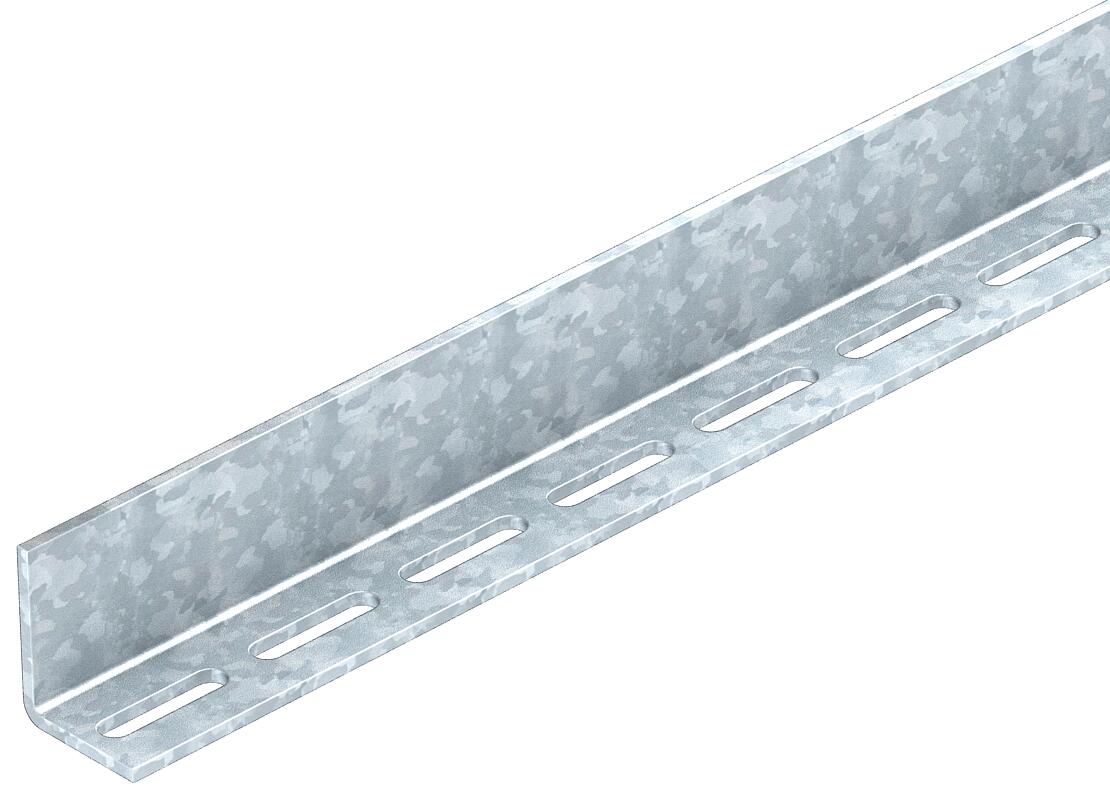

Product graphic WESP 50 40 FT / 7105673, 67.17 kB, jpg

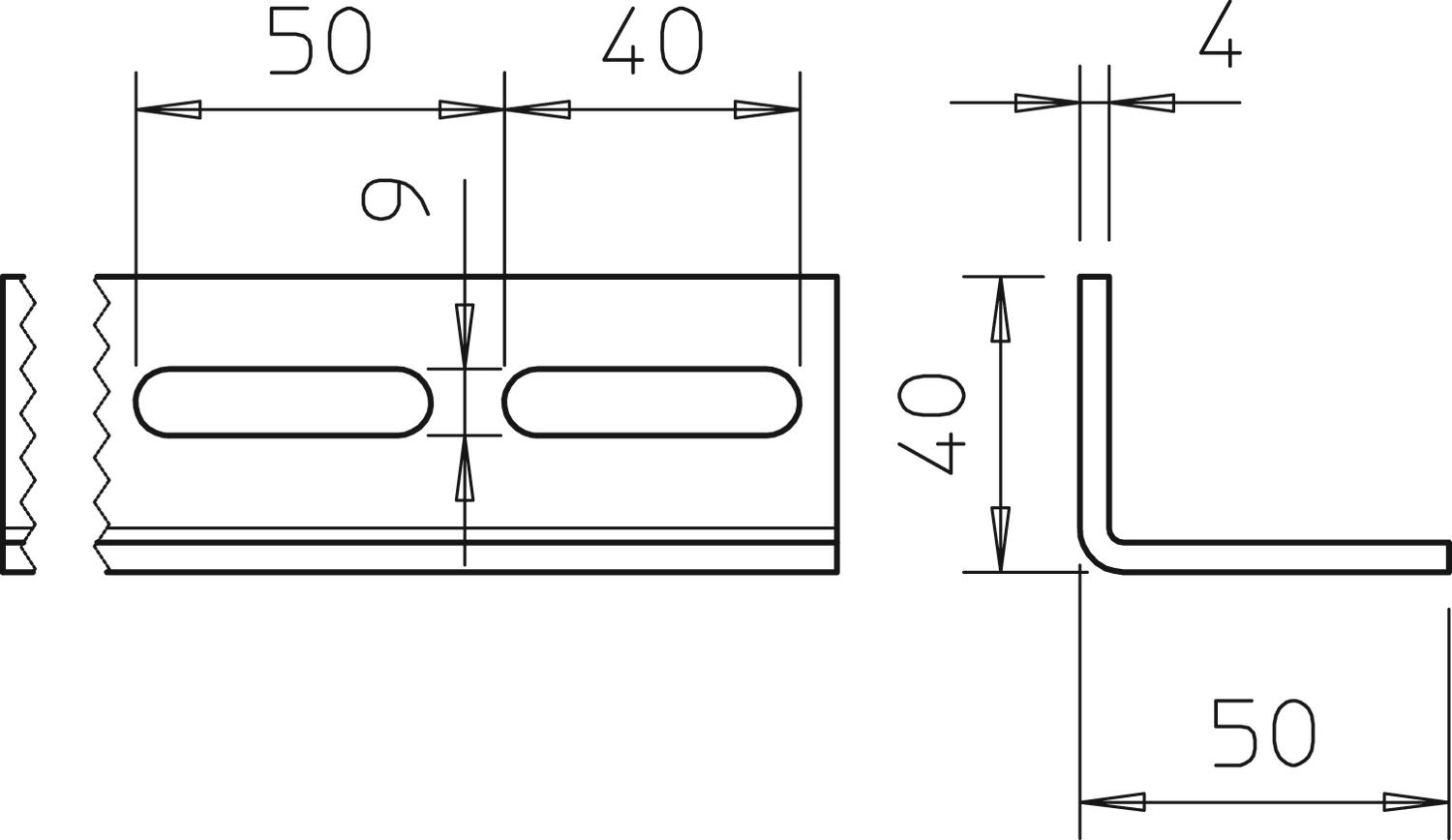

Scale drawing WESP 50 40 FT / 7105673, 53.23 kB, jpg

WESP 50 40 FT / 7105673
