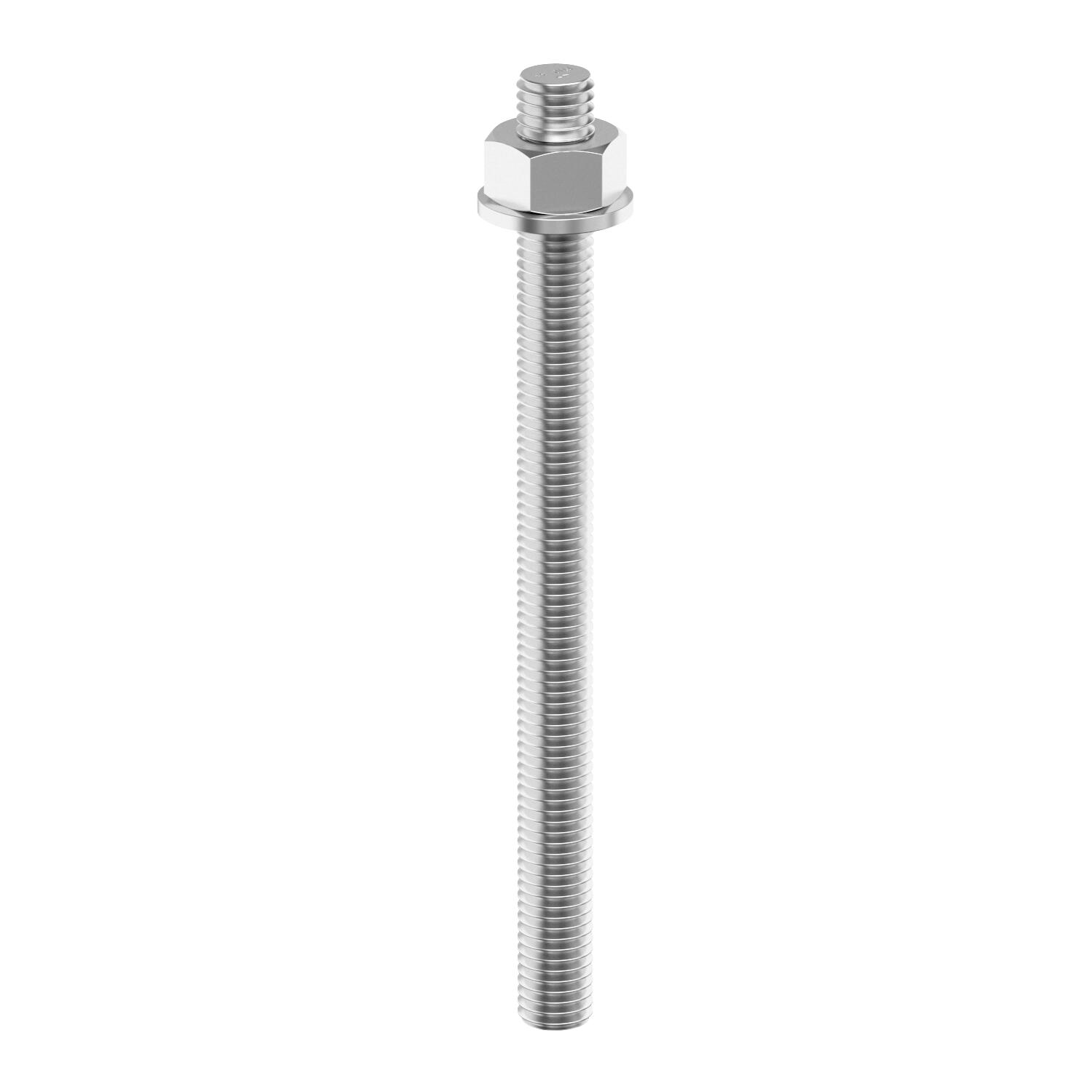

Anchor rod A4

Item no. 3497830 | EAN 4012196606818

Item no. / Types

Length

Thread

Dimension d

WAF

Product description

Product description

With the anchor rod and matching plastic wire sleeve, loads are fastened without spreading pressure in masonry walls using the VMS plus injection mortar. The system is also used for fastening in concrete ceilings. On concrete and full brick walls, the anchor rod is only mounted with the injection mortar VMU plus, without a wire sleeve.

The anchor rod VMU-A 8x110 mm is mounted using the plastic wire sleeve VM-SH 12x80 or VM-SH 16x85.

The VMU-A 10x130 mm anchor rod is mounted using the VM-SH 16x85 plastic wire sleeve.

The VMU-A 10x150 mm anchor rod is mounted using the VM-SH 16x85 or VM-SH 16x130 plastic wire sleeve.

The VMU-A 12x155 mm anchor rod is mounted using the VM-SH 20x85 plastic wire sleeve.

Technical data

Technical data

Colour	stainless steel
Depth marking	yes
Dimension	110x6,5
Dimension d	8 mm
Dimension L	110 mm
Length	110 mm

Material	Stainless steel
Thread	M8
Thread metric	8
Thread type	Metric
WAF	13
With external thread	yes

All types

All types

Types	Length	Thread	Dimension d	WAF	Item no.	Quantity	SSU
VMU-A 8-110A4	110 mm	M8	8 mm	13	3497830	piece	10 piece
VMU-A 10-130A4	130 mm	M10	10 mm	17	3497832	piece	10 piece
VMU-A 12-155A4	155 mm	M12	12 mm	19	3497834	piece	10 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU

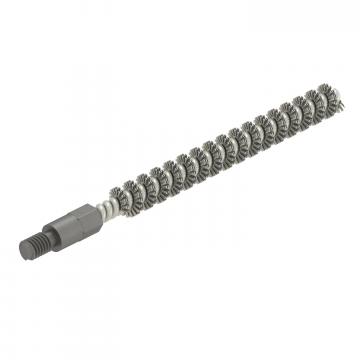

Steel cleaning brush for drill holes	RB 10 M 6	3497870	piece	1 piece
Steel cleaning brush for drill holes	RB 12 M 6	3497872	piece	1 piece

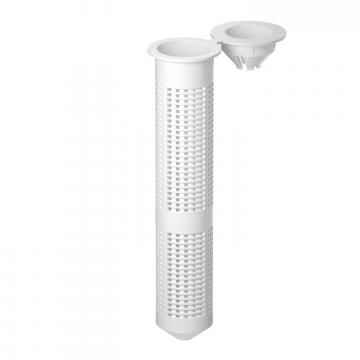

Plastic wire sleeve	VMU-SH 12x80	3497860	piece	10 piece

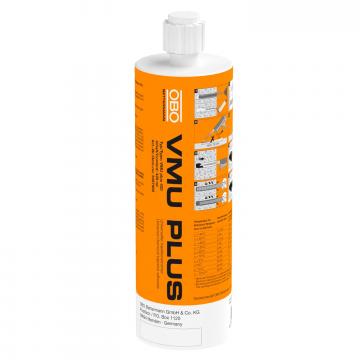

Injection mortar in cartridge, 420 ml	VMU plus 420	3497803	piece	1 piece
