Anchor rail AMS3518, slot 16.5 mm, FT, perforated 2000 | 35 | 18 | 2 | Steel | Hot-dip galvanised

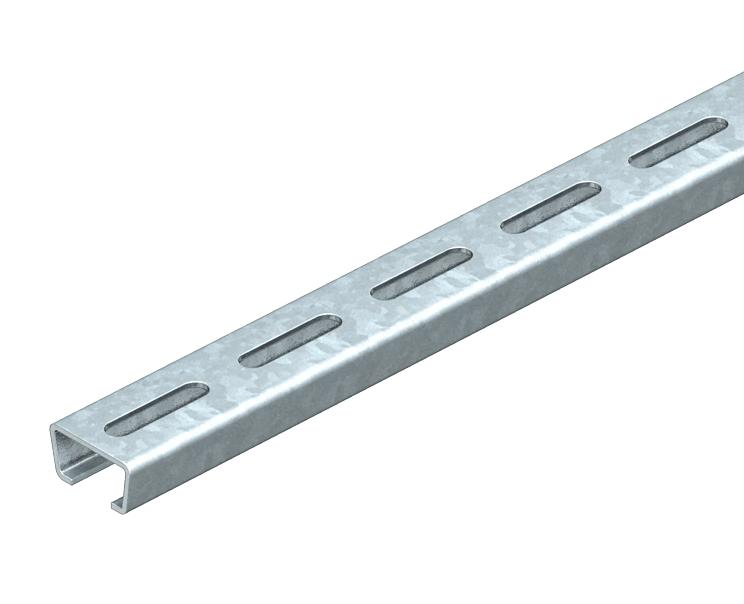

Anchor rail AMS3518, slot 16.5 mm, FT, perforated

Item no. 1112759 | EAN 4012195632535

Item no. / Types

Length	2000 mm

Width	35 mm

Height	18 mm

Material thickness	2 mm

Material	Steel

Surface

Product description

Product description

Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.

Technical data

Technical data

Breakable	no
Bundle	20 m
Dimension	2000x35x18
Drill hole spacing, centre	50 mm
Maintain electrical functions	no
Material	Steel
Material thickness	2 mm
Profile shape	C profile
Slot width	16,5 mm
Static value A	1,31 cm²

Static value ly	0,54 cm
Static value lz	2,31 cm
Static value Wy	0,52 cm²
Static value Wz	1,32 cm²
Surface	Hot-dip galvanised
Type of perforation	Perforated back
Version for	Single profile
With perforation	yes
With toothing	no

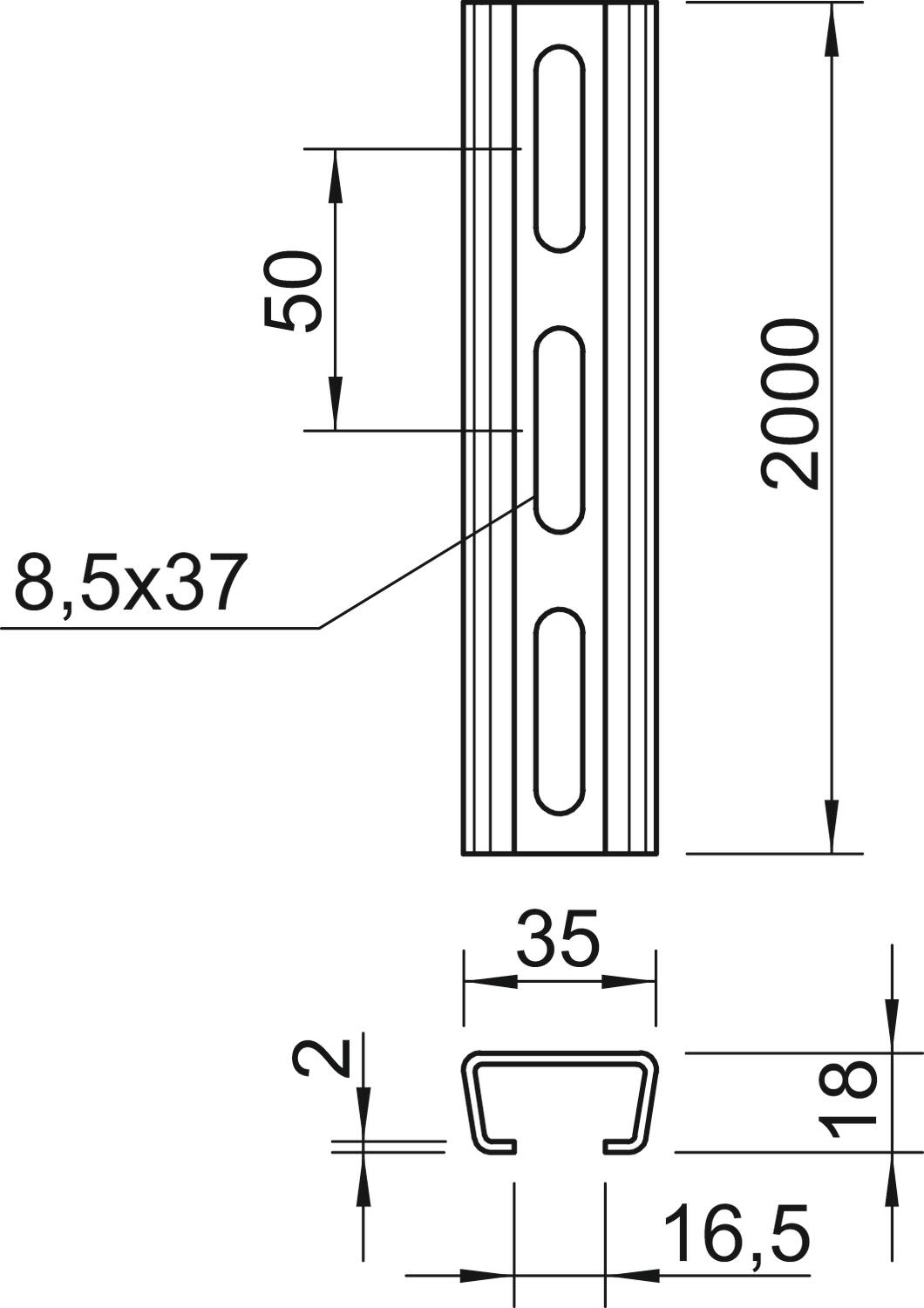

Dimensions

Dimension L	2000 mm
Height	18 mm

Length	2000 mm
Width	35 mm

All types

All types

Types	Length	Width	Height	Material thickness	Material	Surface	Item no.	Quantity	SSU
AMS3518P2000FS	2000 mm	35 mm	18 mm	2 mm	Steel	Strip galvanized	1112708	m	2 m
AMS3518P2000FT	2000 mm	35 mm	18 mm	2 mm	Steel	Hot-dip galvanised	1112759	m	2 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Slide nut ZL	ACMSN M8 ZL	1147060	piece	100 piece
Hammer-head bolt ZL	ACMHB M8x30 ZL	1148060	piece	50 piece
Clamp clip, single, plastic pressure trough, FT	2056 12 FT	1160125	piece	100 piece
Clamp clip, single, plastic pressure trough, FT	2056 22 FT	1160222	piece	100 piece
