- Product description
-

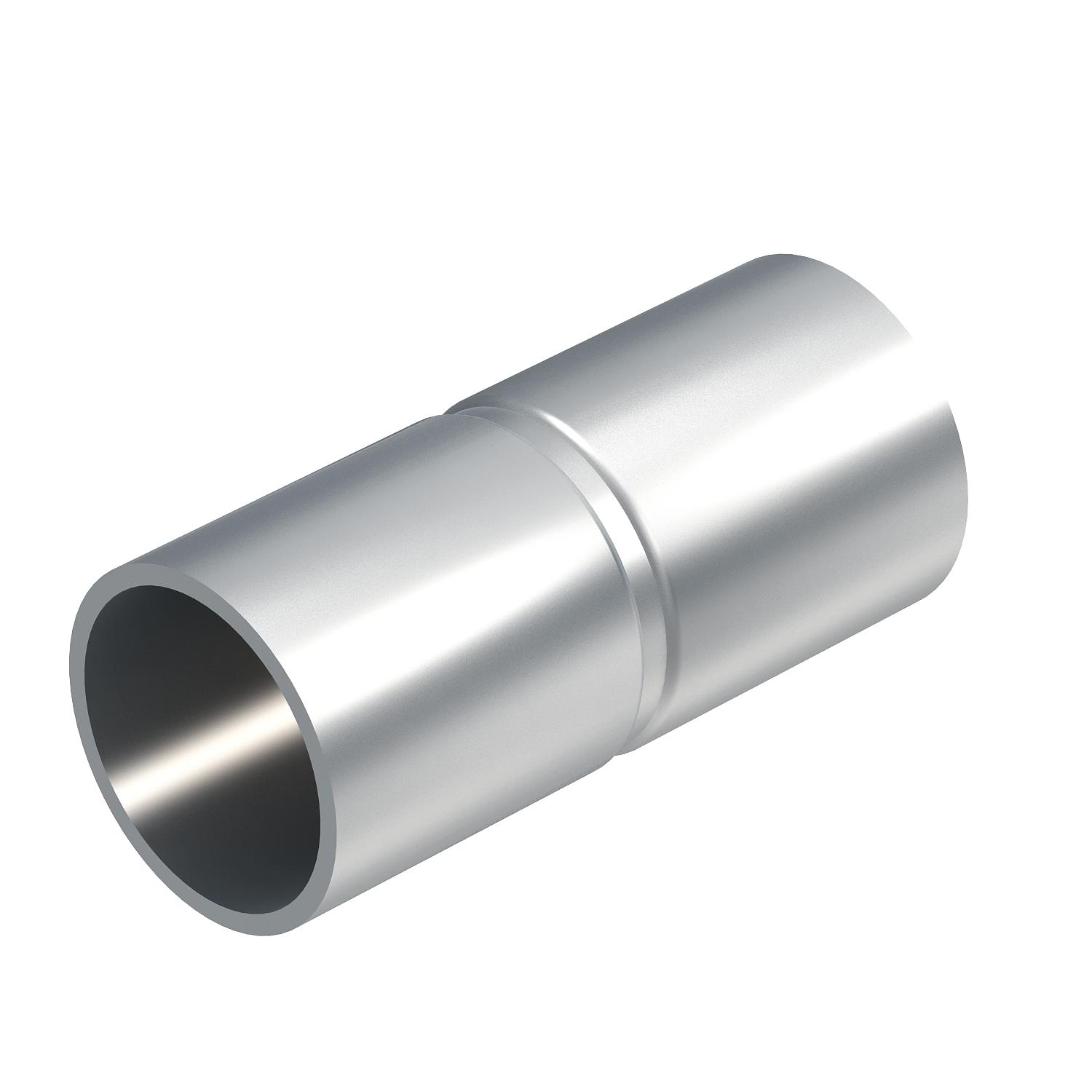

Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
- Technical data
-
Technical data

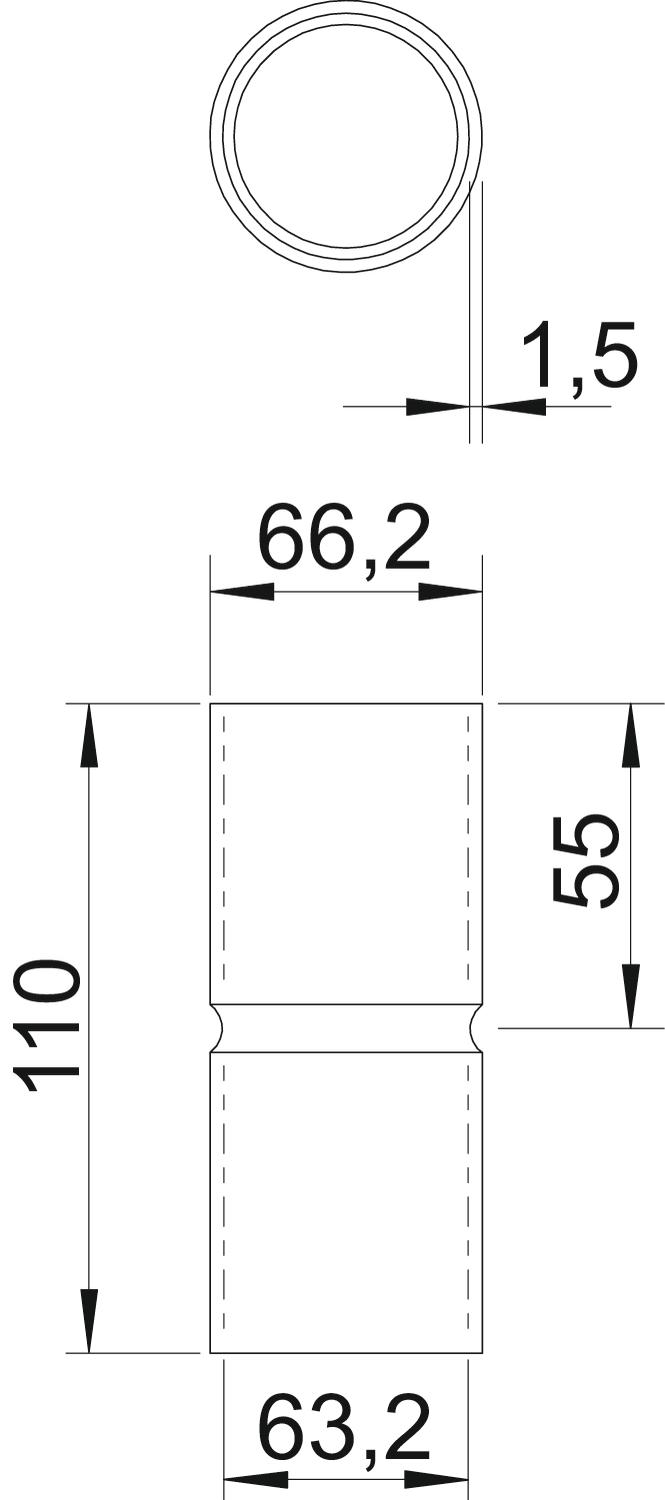

Brushed surface no Dimension Ø63mm Dimension D 66,2 mm Dimension d 63,2 mm Dimension L 110 mm Dimension l 55 mm Dimension m (mm) 63 Dimension t 1,5 mm for pipe diameter 63 mm Halogen-free yes Length 110 mm Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Polished surface no Size 63 Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV63W ALU / 2046028 , 0.16MB , pdfEU declaration of conformity SV63W ALU / 2046028 , 0.06MB , pdfREACH Declaration of conformity SV63W ALU / 2046028 , 0.12MB , pdfRoHS Declaration of conformity SV63W ALU / 2046028 , 0.12MB , pdf
