Product description

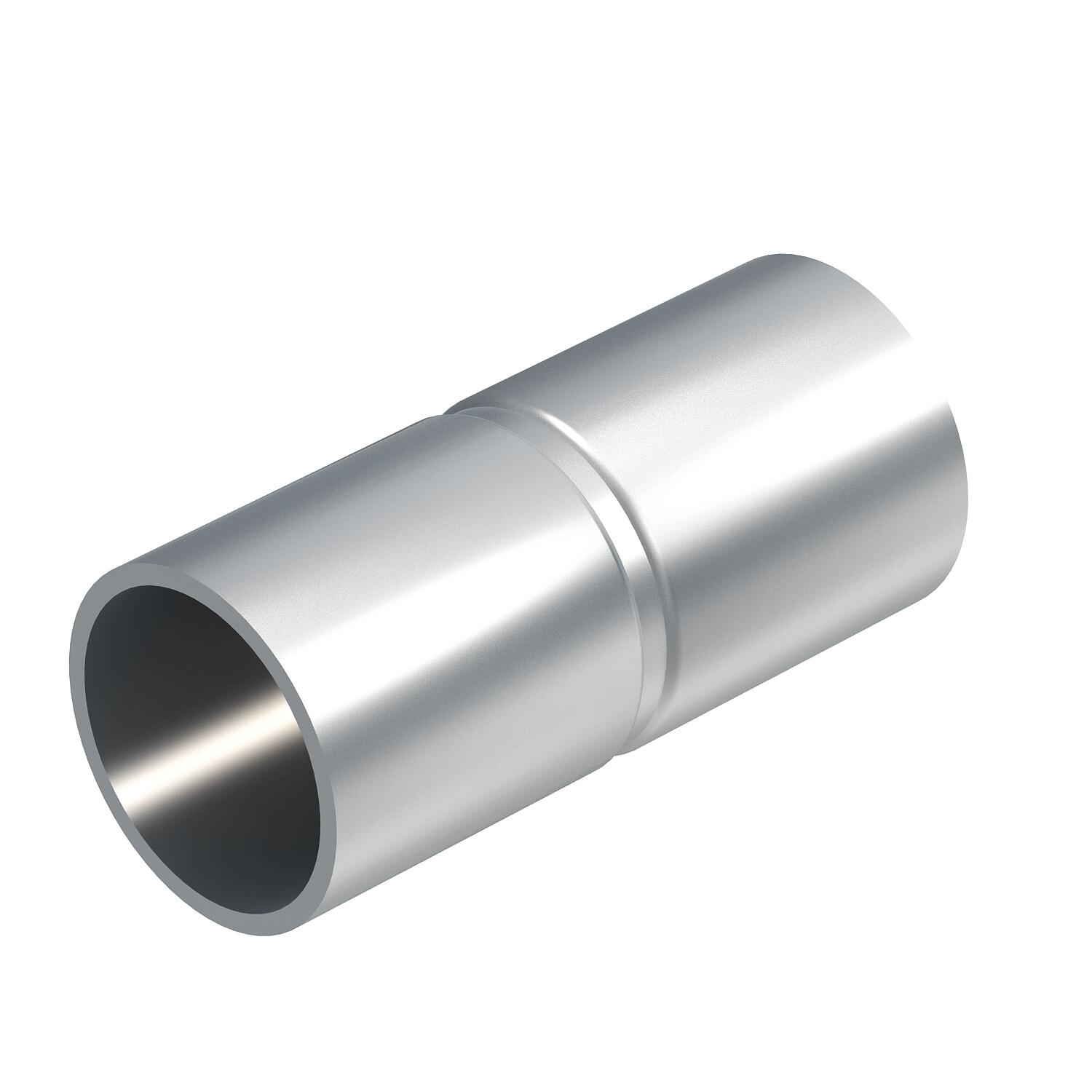

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
- Technical data
-
Technical data

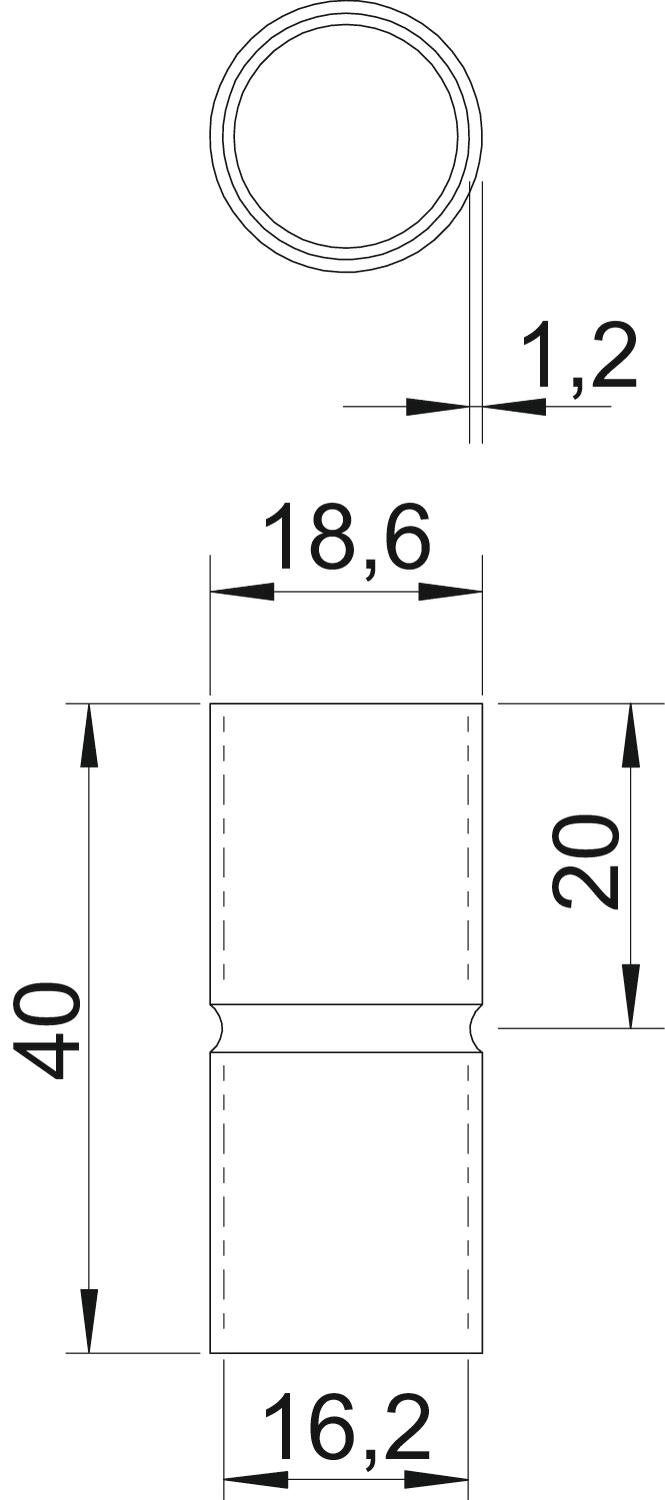

Brushed surface no Dimension Ø16mm Dimension D 18,6 mm Dimension d 16,2 mm Dimension l 20 mm Dimension L 40 mm Dimension m (mm) 16 Dimension t 1,2 mm for pipe diameter 16 mm Halogen-free yes Length 40 mm Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Polished surface no Size 16 Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV16W ALU / 2046022 , 0.22MB , pdfDeclaration of conformity SV16W ALU / 2046022 , 0.06MB , pdfREACH Declaration of conformity SV16W ALU / 2046022 , 0.12MB , pdfRoHS Declaration of conformity SV16W ALU / 2046022 , 0.12MB , pdf
