- Product description
-

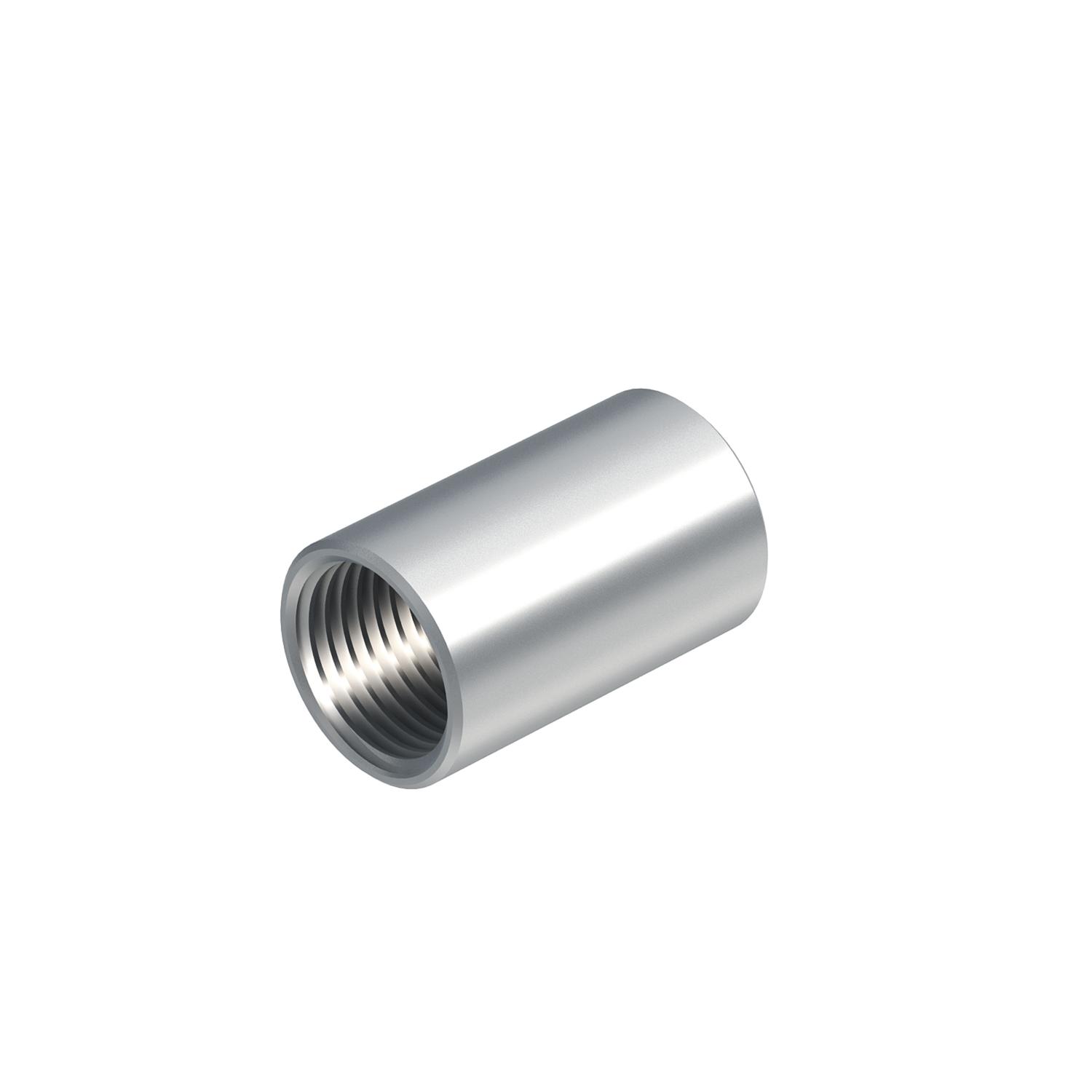

Product descriptionAccessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.
- Technical data
-
Technical data

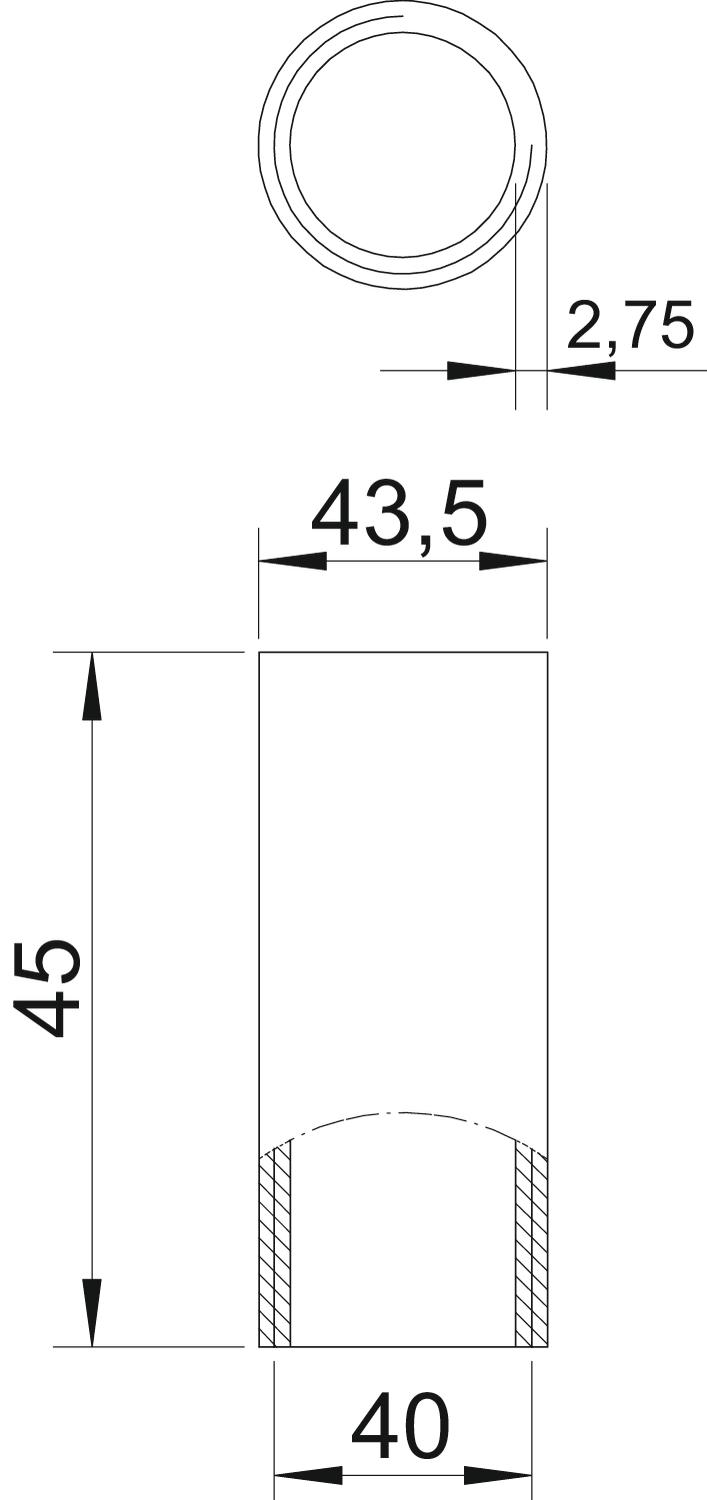

Brushed surface no Dimension M40x1,5 Dimension d 40 mm Dimension D 43,5 mm Dimension L 45 mm Dimension m (mm) M40 Dimension t 2,75 mm for pipe diameter 40 mm Halogen-free no Length 45 mm Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Polished surface no Size 40 Thread M40x1,5 Two-part no Version for Thread With inspection opening and lid no - All types
-
All types
- Downloads
-
Data sheet SVM40W ALU / 2046056 , 0.18MB , pdfEU declaration of conformity SVM40W ALU / 2046056 , 0.06MB , pdfREACH Declaration of conformity SVM40W ALU / 2046056 , 0.12MB , pdfRoHS Declaration of conformity SVM40W ALU / 2046056 , 0.12MB , pdf
