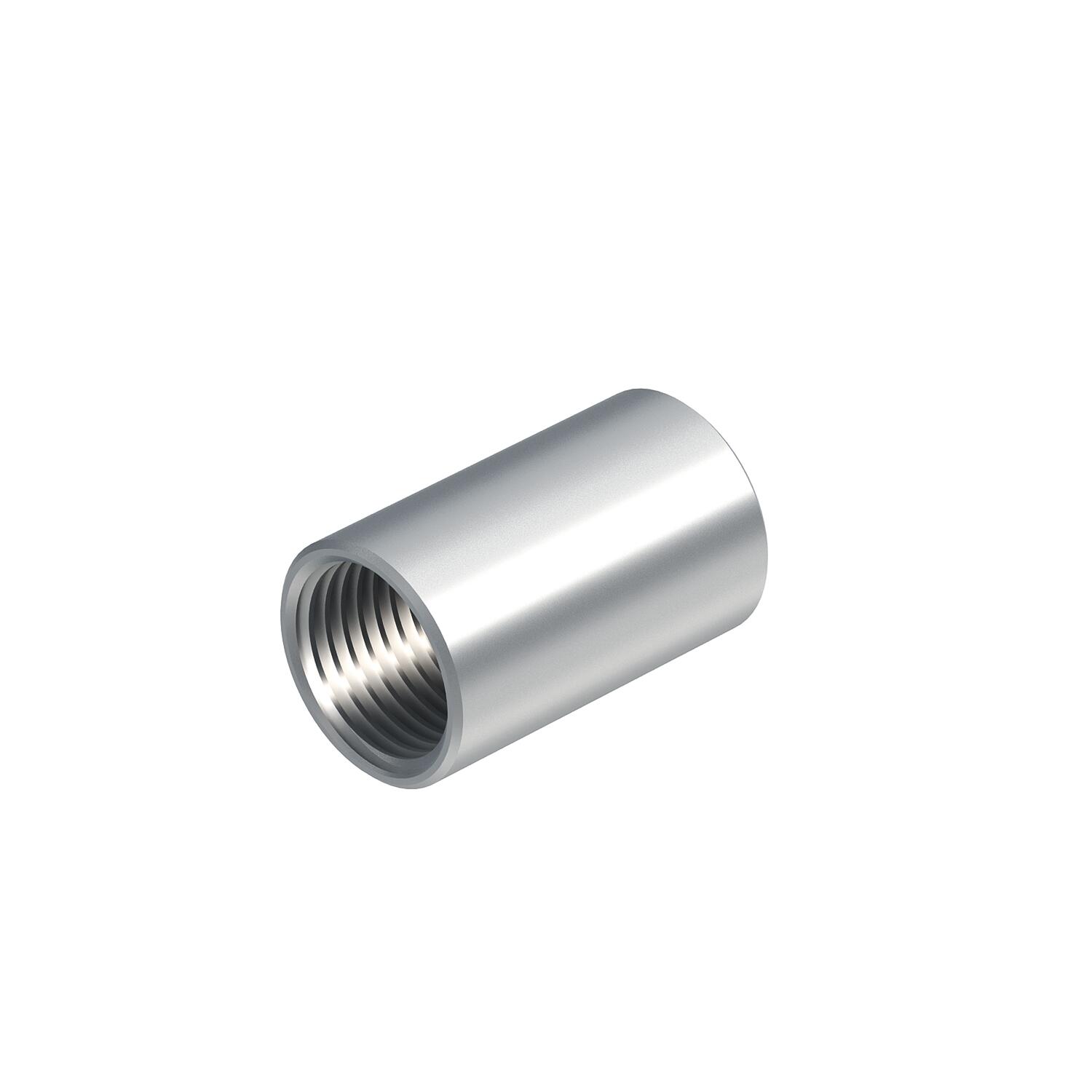

Aluminium sleeve, with thread

Item no. / Types

Dimension D

Dimension d

Thread

Product description

Product description

Accessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.

Technical data

Material	Aluminium
Permitted temperature range, max.	250 °C
Permitted temperature range, min.	-45 °C
Polished surface	no
Size	32
Thread	M32x1,5
Two-part	no
Version for	Thread
With inspection opening and lid	no

All types

All types

Types	Dimension D	Dimension d	Thread	Item no.	Quantity	SSU
SVM16W ALU	18.5 mm	16 mm	M16x1,5	2046052	piece	50 piece
SVM20W ALU	22.5 mm	20 mm	M20x1,5	2046053	piece	50 piece
SVM25W ALU	28 mm	25 mm	M25x1,5	2046054	piece	50 piece

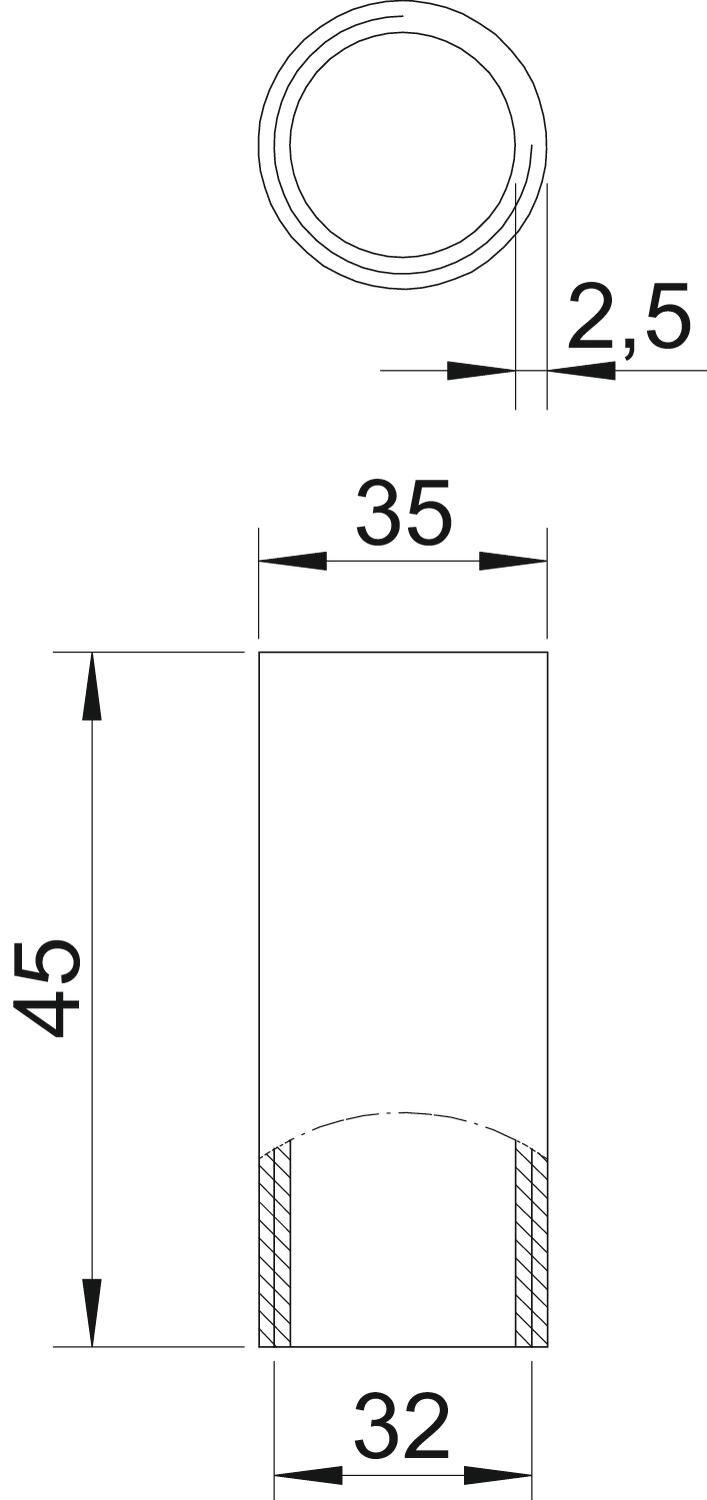

SVM32W ALU	35 mm	32 mm	M32x1,5	2046055	piece	50 piece
SVM40W ALU	43.5 mm	40 mm	M40x1,5	2046056	piece	20 piece
SVM50W ALU	53.5 mm	50 mm	M50x1,5	2046057	piece	20 piece
SVM63W ALU	66.5 mm	63 mm	M63x1,5	2046058	piece	20 piece
