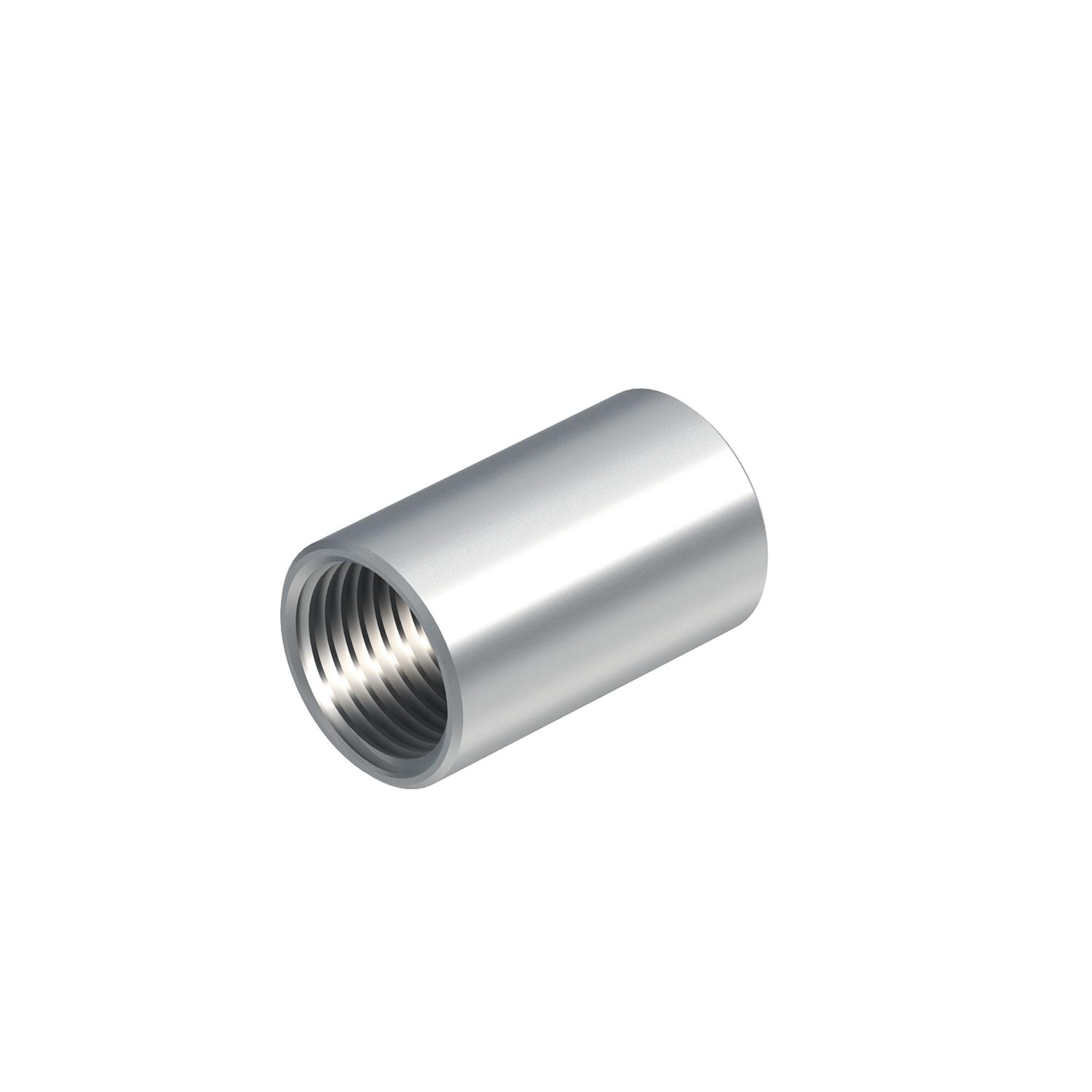

Aluminium sleeve, with thread

Item no. 2046054 | EAN 4012195926276

Product description

Product description

Accessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

Brushed surface no

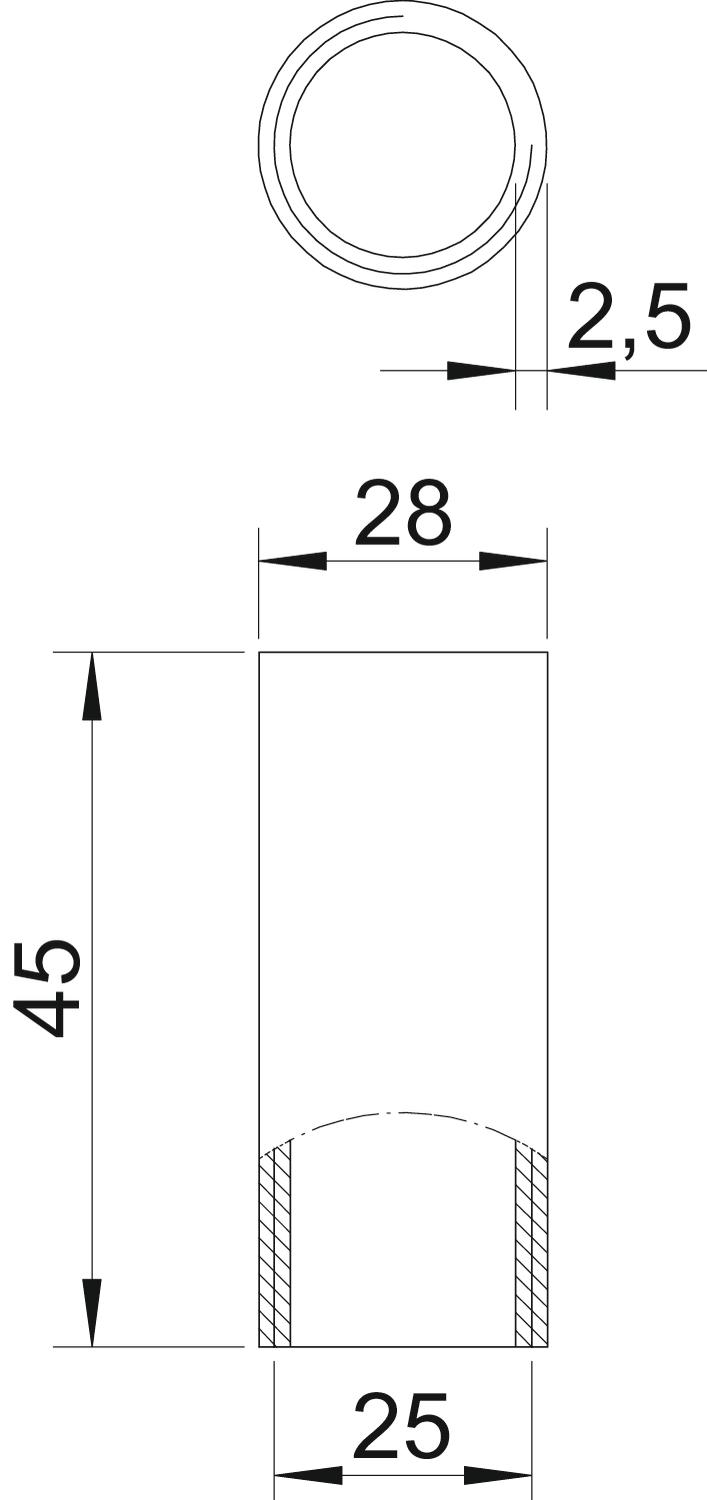

Dimension M25x1,5
Dimension d 25 mm
Dimension D 28 mm
Dimension L 45 mm
Dimension m (mm) M25
Dimension t 2,5 mm
for pipe diameter 25 mm
Halogen-free no
Length 45 mm
Material Aluminium
Permitted temperature range, max. 250 °C
Permitted temperature range, min. -45 °C
Polished surface no
Size 25
Thread M25x1,5
Two-part no
Version for Thread
With inspection opening and lid no
All types

All types

Types Dimension D Dimension d Thread Item no. Quantity SSU
SVM16W ALU 18.5 mm 16 mm M16x1,5 2046052
50 piece
SVM20W ALU 22.5 mm 20 mm M20x1,5 2046053
50 piece
SVM25W ALU 28 mm 25 mm M25x1,5 2046054
50 piece
SVM32W ALU 35 mm 32 mm M32x1,5 2046055
50 piece
SVM40W ALU 43.5 mm 40 mm M40x1,5 2046056
20 piece
SVM50W ALU 53.5 mm 50 mm M50x1,5 2046057
20 piece
SVM63W ALU 66.5 mm 63 mm M63x1,5 2046058
20 piece
