- Product description
-
Product description

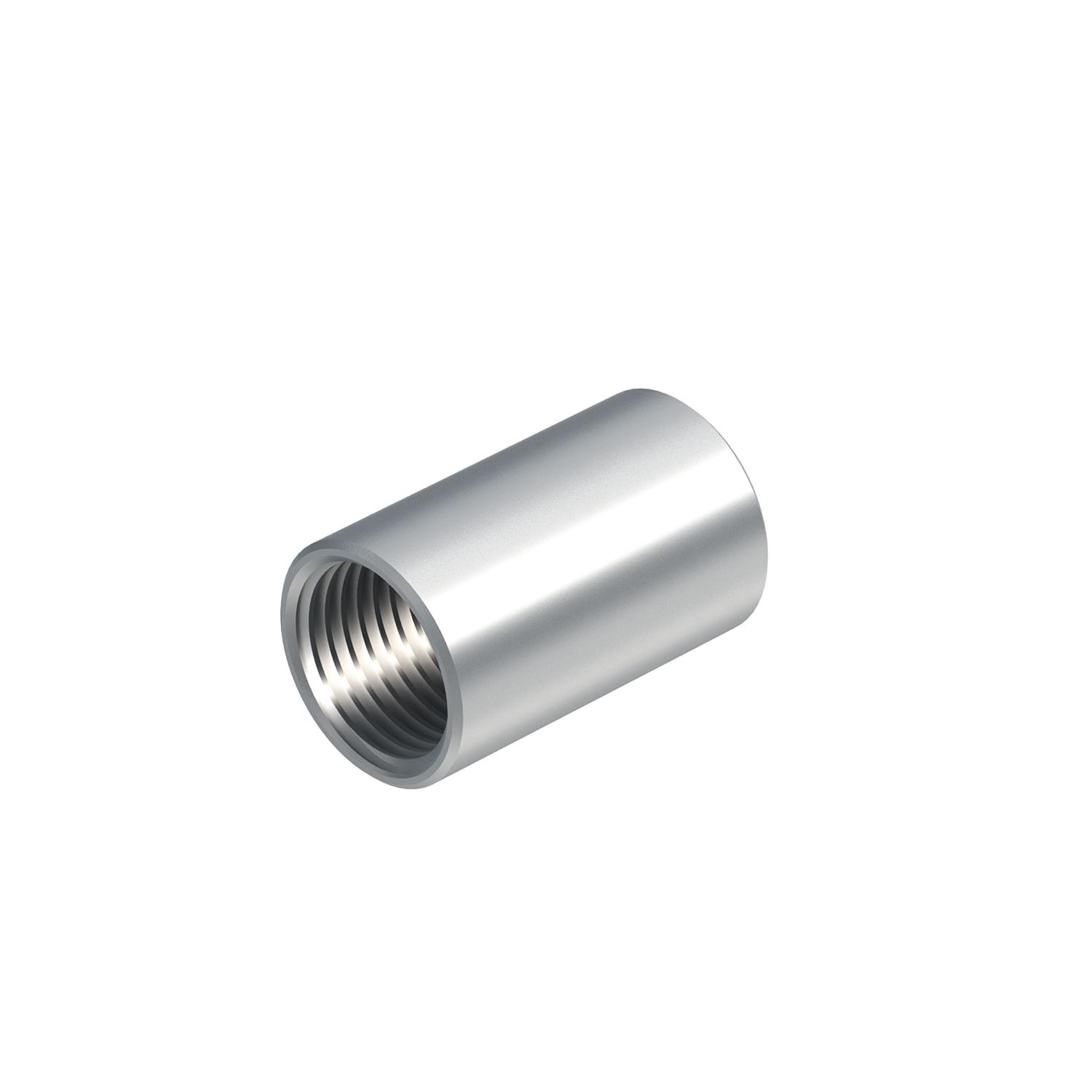

Accessory part: coupling with thread according to EN 60423 to connect electrical installation pipes and 90° bends.
- Technical data
-
Technical data

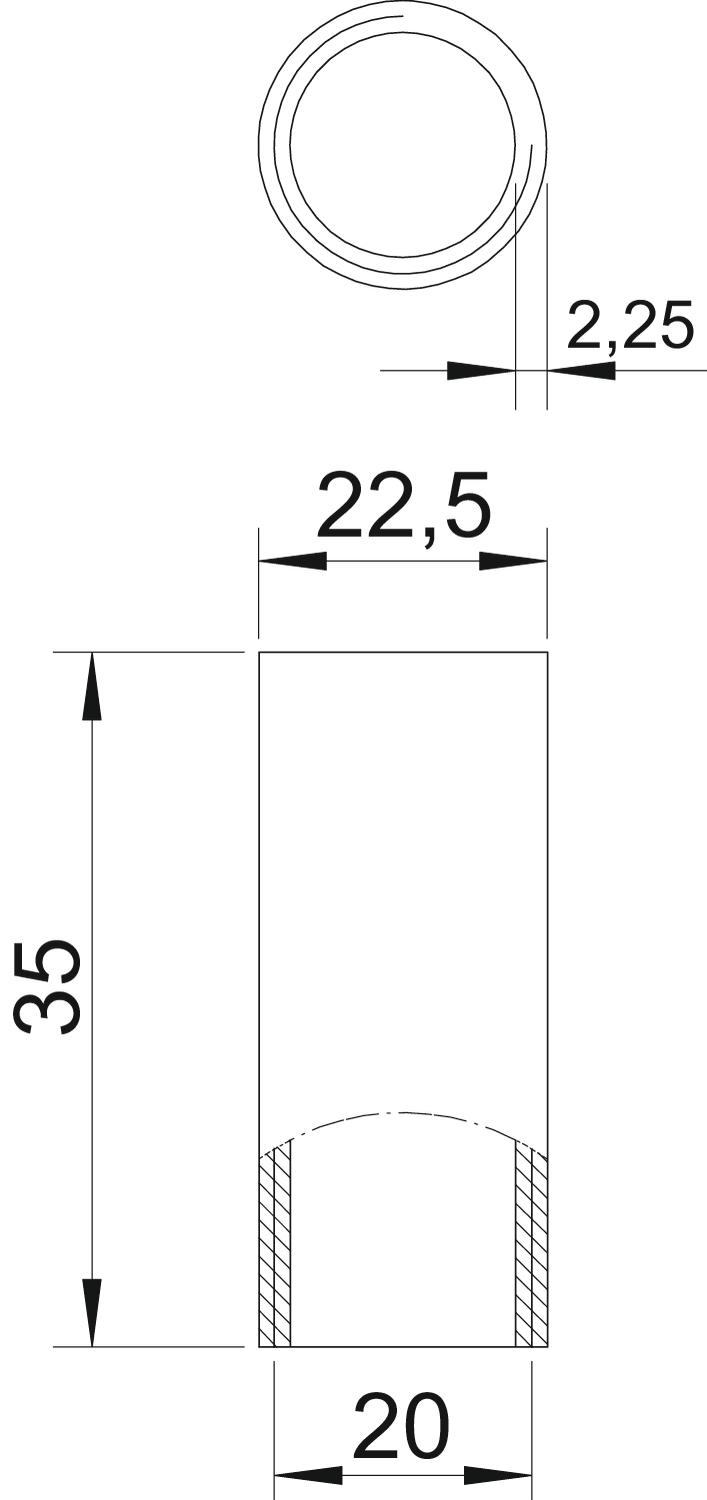

Brushed surface no Dimension M20x1,5 Dimension d 20 mm Dimension D 22,5 mm Dimension L 35 mm Dimension m (mm) M20 Dimension t 2,25 mm for pipe diameter 20 mm Halogen-free no Length 35 mm Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Polished surface no Size 20 Thread M20x1,5 Two-part no Version for Thread With inspection opening and lid no - All types
-
All types
- Downloads
-
Data sheet SVM20W ALU / 2046053 , 0.22MB , pdfDeclaration of conformity SVM20W ALU / 2046053 , 0.06MB , pdfREACH Declaration of conformity SVM20W ALU / 2046053 , 0.12MB , pdfRoHS Declaration of conformity SVM20W ALU / 2046053 , 0.12MB , pdf
