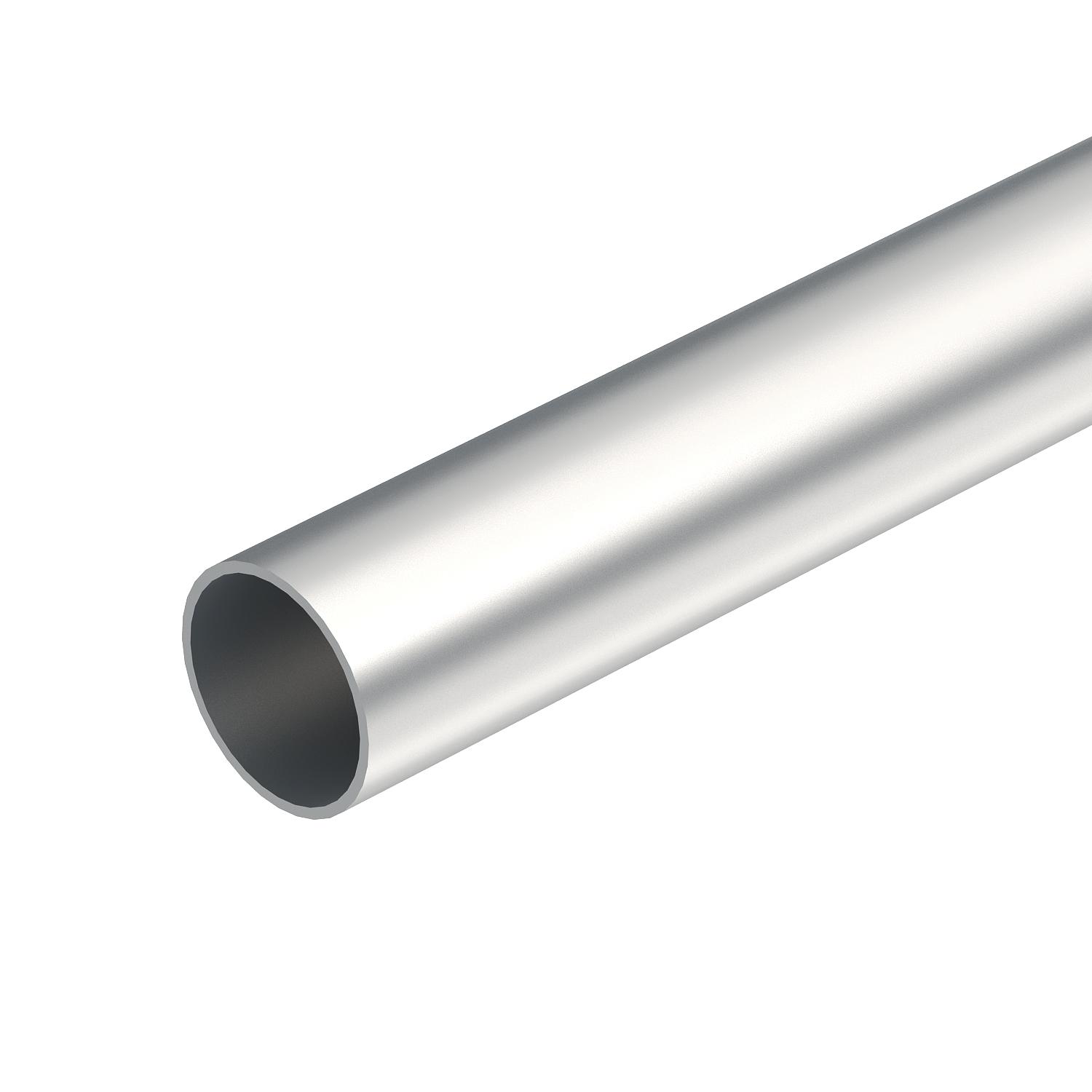

Aluminium pipe, without thread

Item no. / Types

Dimension D

Dimension L	3000 mm

Dimension t

Product description

Product description

Electrical installation pipe without threaded ends to EN 61386-1 for mechanical protection of cables. With burr-free inner wall.

Technical data

Brushed surface	no
Cavity wall installation	yes
Classification code	44561
Concealed	yes
Concrete installation	yes
Connection 1, installation pipe	Pipe end
Connection 2, installation pipe	Pipe end

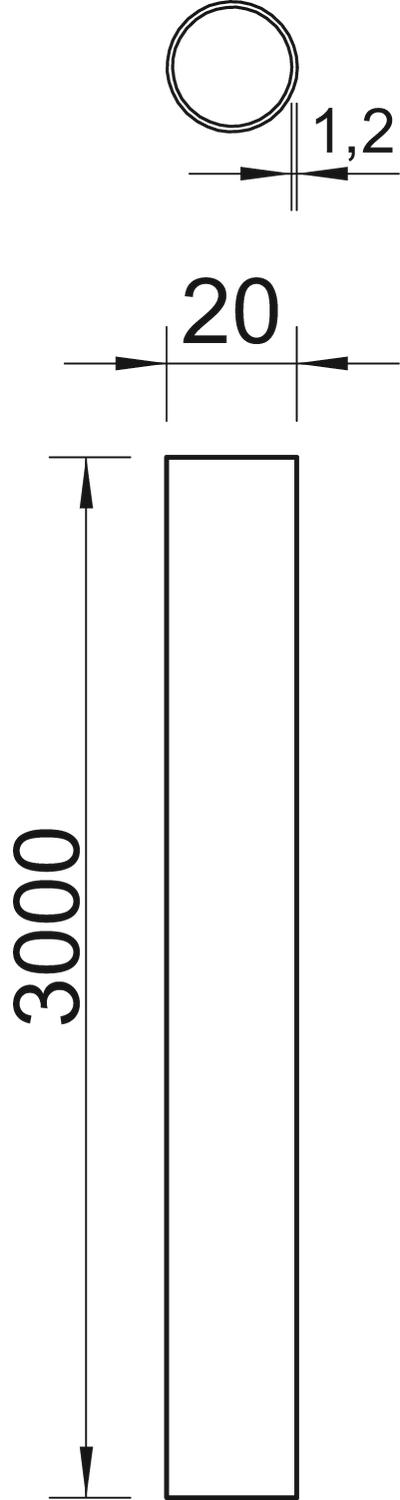

Dimension	Ø20, 3000mm
Installation in the earth	yes
Installation on wood	yes
Installation outdoors	yes

Machines and system installation	yes
Material	Aluminium
Permitted temperature range, max.	250 °C
Permitted temperature range, min.	-45 °C
Pipe version	Rigid without thread
Polished surface	no
Surface-mounted	yes
Underfloor installation (bitumen, hot asphalt)	yes
Underfloor installation (screed)	yes
With sleeve	no

Dimension t	1,2 mm
Length	3000 mm

All types

Types	Dimension D	Dimension L	Dimension t	Item no.	Quantity	SSU
S16W ALU	16 mm	3000 mm	1.2 mm	2046002	m	30 m
S20W ALU	20 mm	3000 mm	1.2 mm	2046003	m	30 m
S25W ALU	25 mm	3000 mm	1.3 mm	2046004	m	30 m
S32W ALU	32 mm	3000 mm	1.3 mm	2046005	m	30 m
S40W ALU	40 mm	3000 mm	1.4 mm	2046006	m	15 m
S50W ALU	50 mm	3000 mm	1.4 mm	2046007	m	15 m
S63W ALU	63 mm	3000 mm	1.7 mm	2046008	m	15 m
