- Product description
-
Product description

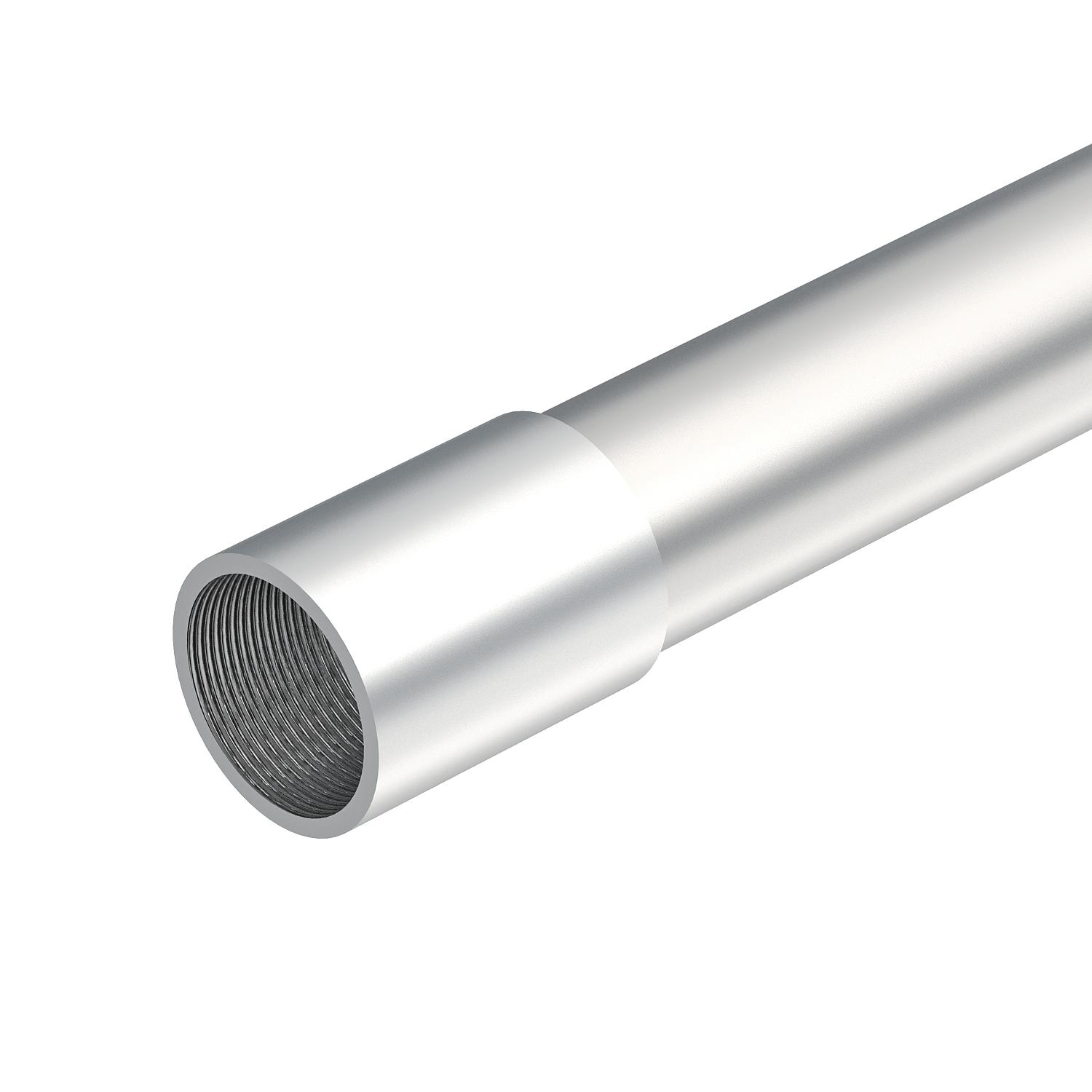

Electrical installation pipe to EN 61386-1 with threaded ends to DIN EN 60423 for mechanical protection of cables.
With burr-free inner wall. One connection sleeve is already screwed onto each pipe.
- Technical data
-
Technical data
Brushed surface no Cavity wall installation yes Classification code 55561 Concealed yes Concrete installation yes Connection 1, installation pipe Sleeve Connection 2, installation pipe External thread (metric) Dimension M63x1,5,3000 Dimension D 63 mm Dimension L 3000 mm Dimension l 25 mm Dimension m (mm) M63 Dimension t 2,1 mm Installation in the earth yes Installation on wood yes Installation outdoors yes Length 3000 mm Machines and system installation yes Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Pipe version Rigid with thread Polished surface no Surface-mounted yes Thread M63x1,5 Underfloor installation (bitumen, hot asphalt) yes Underfloor installation (screed) yes - All types
-
All types
- Downloads
-
Data sheet SM63W ALU / 2046038 , 0.23MB , pdfDeclaration of conformity SM63W ALU / 2046038 , 0.06MB , pdfREACH Declaration of conformity SM63W ALU / 2046038 , 0.12MB , pdfRoHS Declaration of conformity SM63W ALU / 2046038 , 0.12MB , pdf
