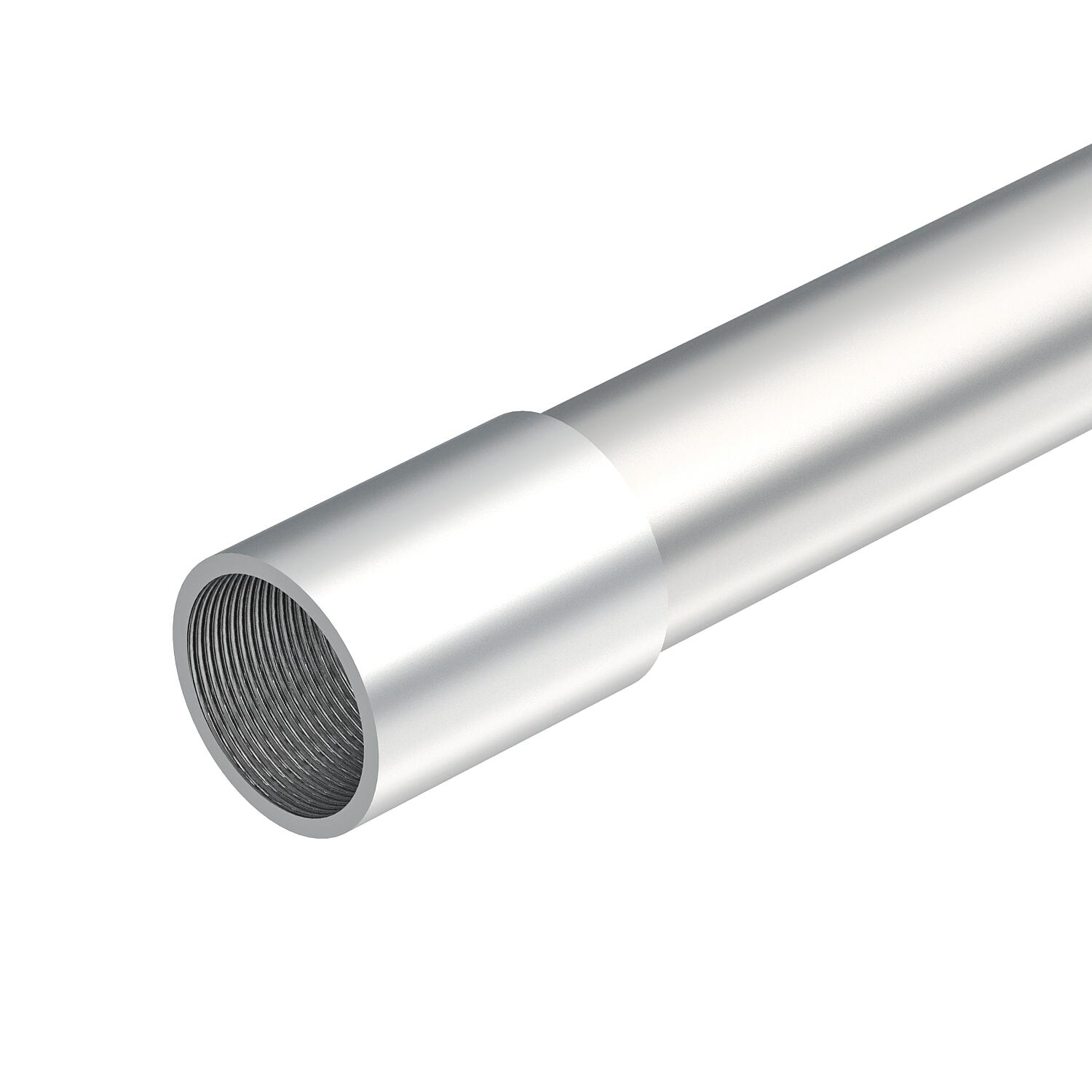

Aluminium pipe, with thread

Item no. 2046032 | EAN 4012195926092

3000 mm
Product description

Product description

Electrical installation pipe to EN 61386-1 with threaded ends to DIN EN 60423 for mechanical protection of cables.
With burr-free inner wall. One connection sleeve is already screwed onto each pipe.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

Brushed surface no
Cavity wall installation yes
Classification code 55561
Concealed yes
Concrete installation yes
Connection 1, installation pipe Sleeve
Connection 2, installation pipe External thread (metric)

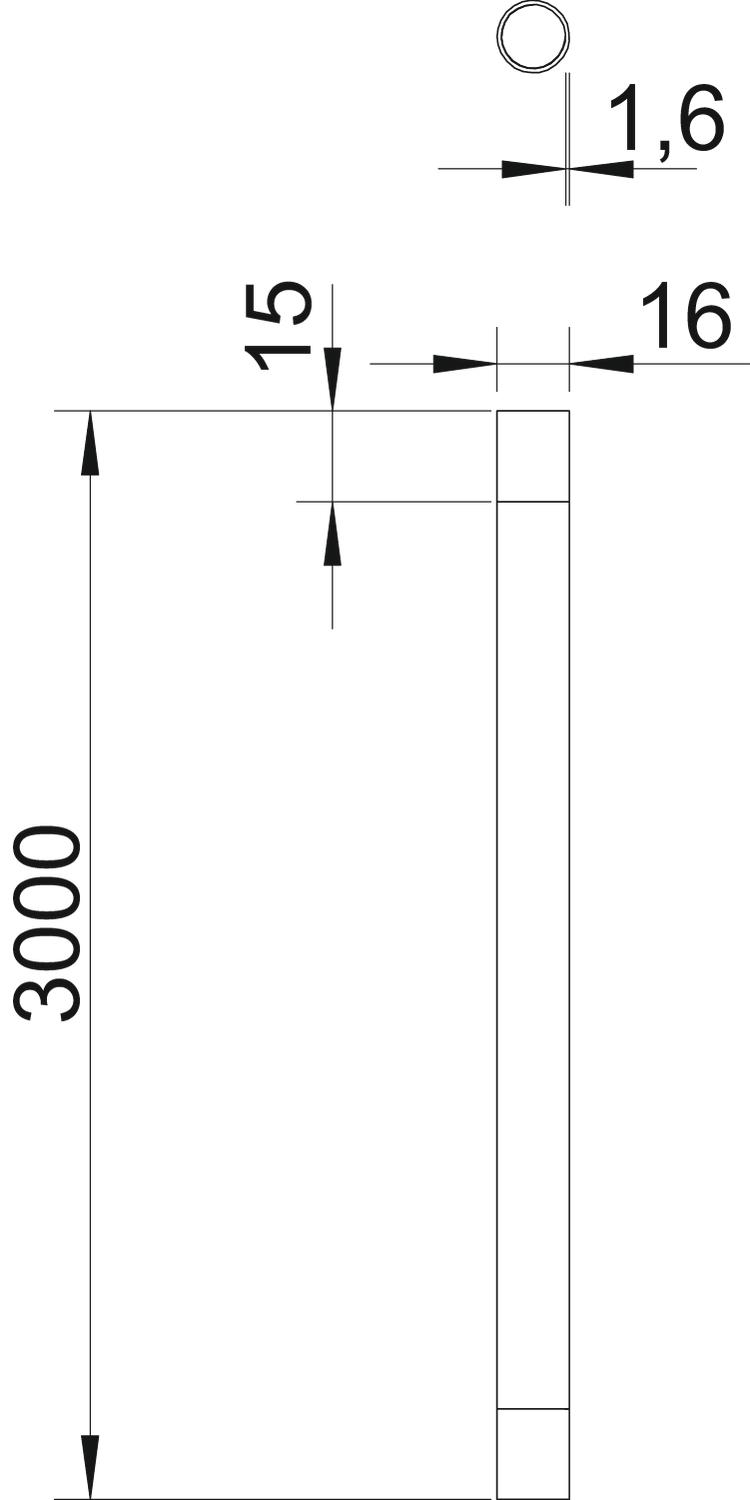

Dimension M16x1,5,3000
Dimension D 16 mm
Dimension L 3000 mm
Dimension l 15 mm
Dimension m (mm) M16
Dimension t 1,6 mm
Installation in the earth yes
Installation on wood yes
Installation outdoors yes
Length 3000 mm
Machines and system installation yes
Material Aluminium
Permitted temperature range, max. 250 °C
Permitted temperature range, min. -45 °C
Pipe version Rigid with thread
Polished surface no
Surface-mounted yes
Thread M16x1,5
Underfloor installation (bitumen, hot asphalt) yes
Underfloor installation (screed) yes
All types

All types

Types Dimension D Dimension L Dimension t Thread Item no. Quantity SSU
SM16W ALU 16 mm 3000 mm 1.6 mm M16x1,5 2046032
30 m
SM20W ALU 20 mm 3000 mm 1.9 mm M20x1,5 2046033
30 m
SM25W ALU 25 mm 3000 mm 1.9 mm M25x1,5 2046034
30 m
SM32W ALU 32 mm 3000 mm 1.9 mm M32x1,5 2046035
30 m
SM40W ALU 40 mm 3000 mm 1.9 mm M40x1,5 2046036
15 m
SM50W ALU 50 mm 3000 mm 2.1 mm M50x1,5 2046037
15 m
SM63W ALU 63 mm 3000 mm 2.1 mm M63x1,5 2046038
15 m
Accessories

System accessories

Products Types Item no. Quantity SSU

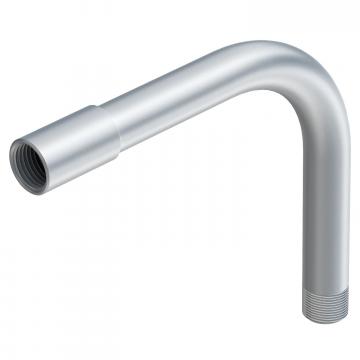

Aluminium pipe bend, with thread Aluminium pipe bend, with thread SBM16W ALU 2046042
15 piece

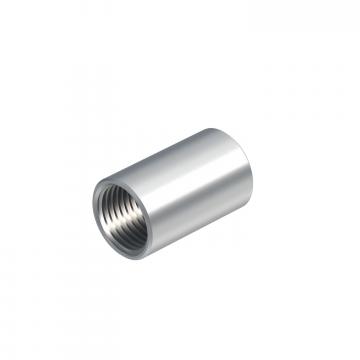

Aluminium sleeve, with thread Aluminium sleeve, with thread SVM16W ALU 2046052
50 piece

Mounting accessories

Products Types Item no. Quantity SSU
Spacer clip 733 ALU

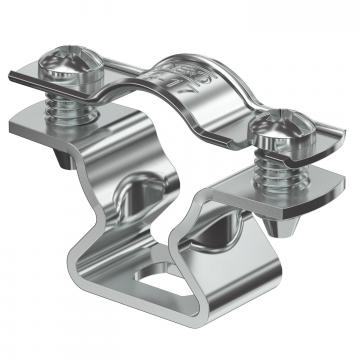

Spacer clip 733 ALU ASL 733 17 ALU 1362812
