Aluminium pipe bend, without thread

Item no. 2046018 | EAN 4012195925972

Product description
Product description

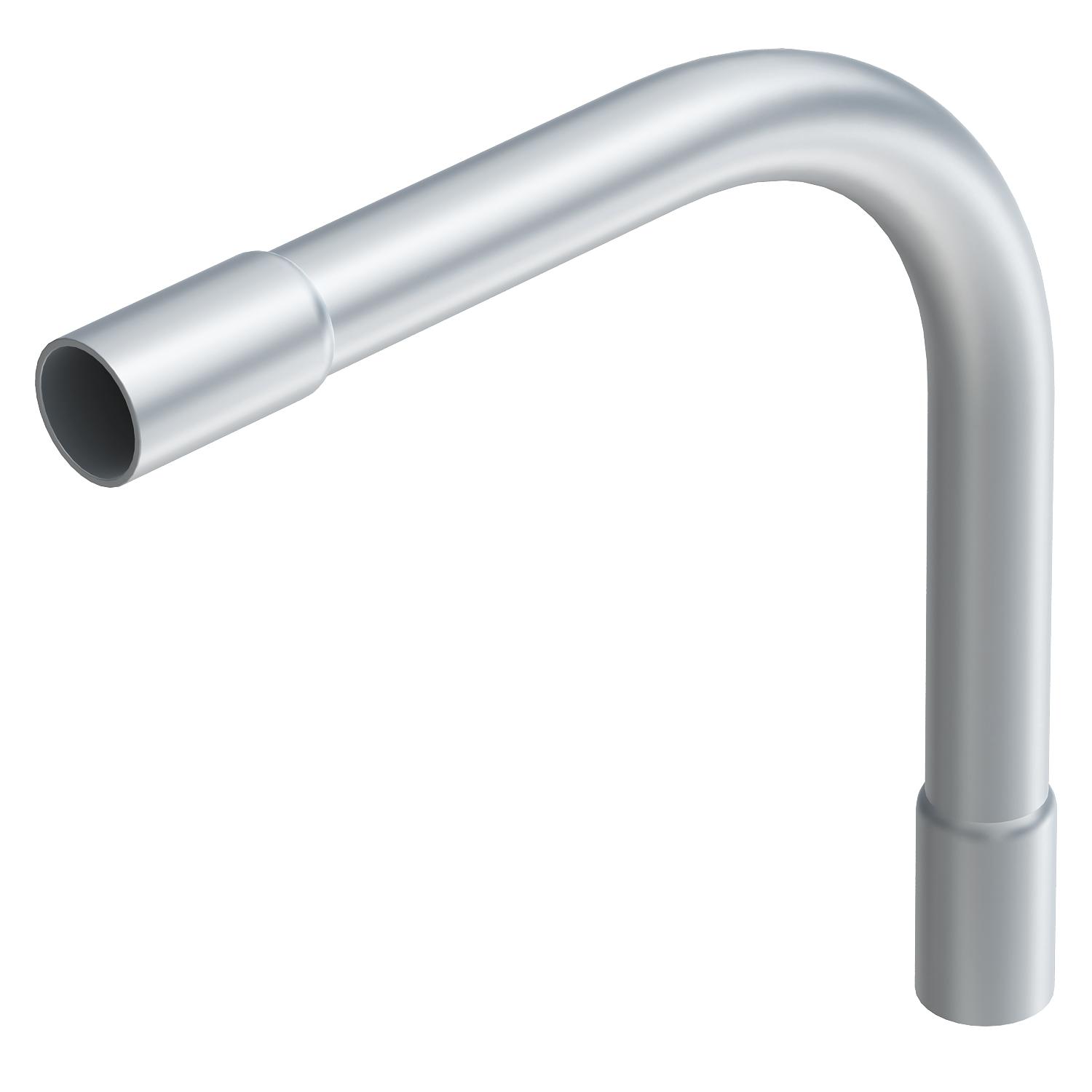

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

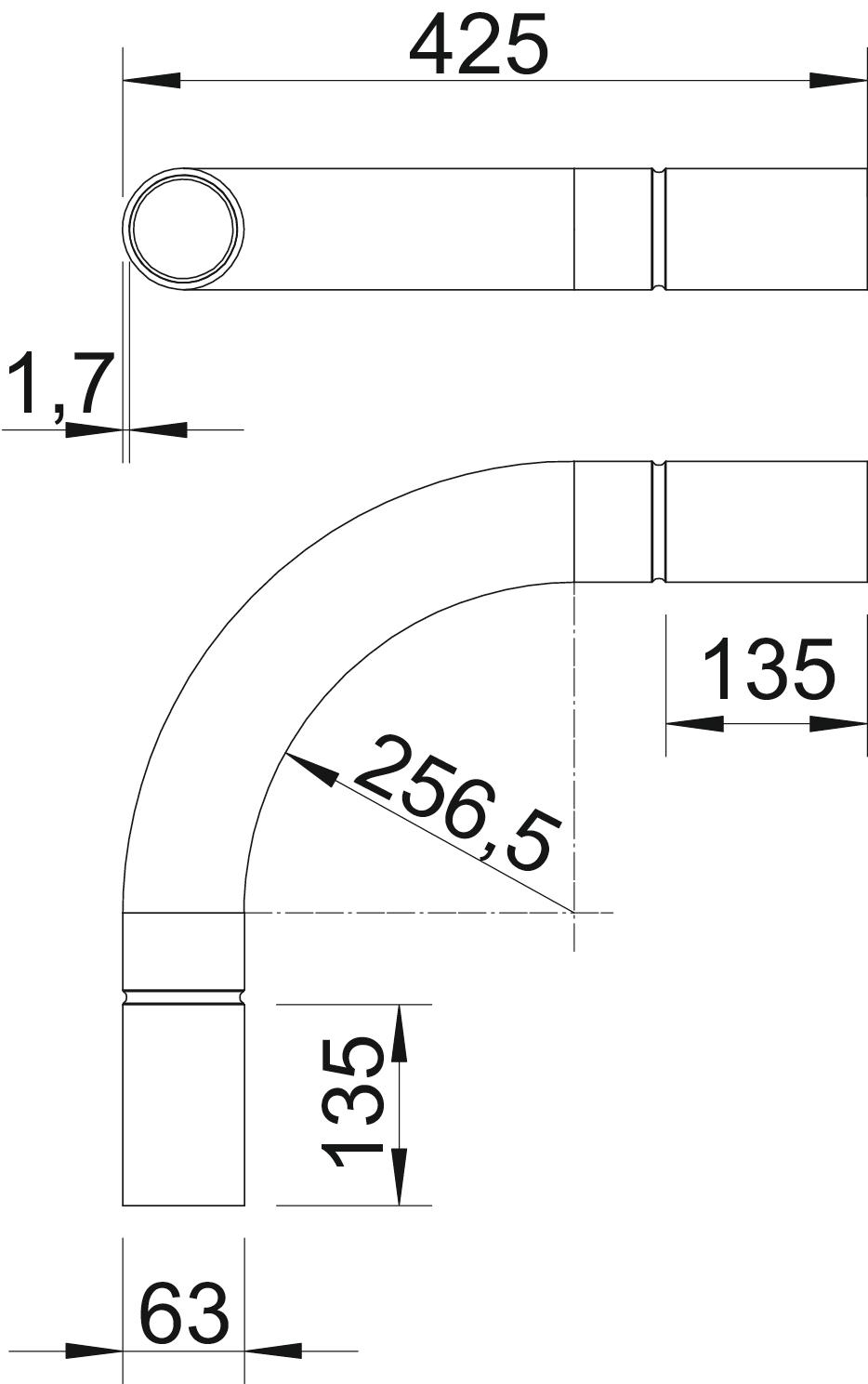

Angle of the bend 90 °
Brushed surface no
Dimension Ø63mm
Dimension A 135 mm
Dimension B 425 mm
Dimension D 63 mm
Dimension l 70 mm
Dimension m (mm) M63
Dimension R 225 mm
Dimension t 1,7 mm
Flexible no
For nominal pipe diameter 63 mm
Halogen-free no
Material Aluminium
Permitted temperature range, max. 250 °C
Permitted temperature range, min. -45 °C
Polished surface no
Two-part no
Version for Connector
With inspection opening and lid no
With sleeve yes
All types

All types

Types For nominal pipe diameter Item no. Quantity SSU
SB16W ALU 16 mm 2046012
15 piece
SB20W ALU 20 mm 2046013
25 piece
SB25W ALU 25 mm 2046014
25 piece
SB32W ALU 32 mm 2046015
20 piece
SB40W ALU 40 mm 2046016
15 piece
SB50W ALU 50 mm 2046017
5 piece
SB63W ALU 63 mm 2046018
3 piece
