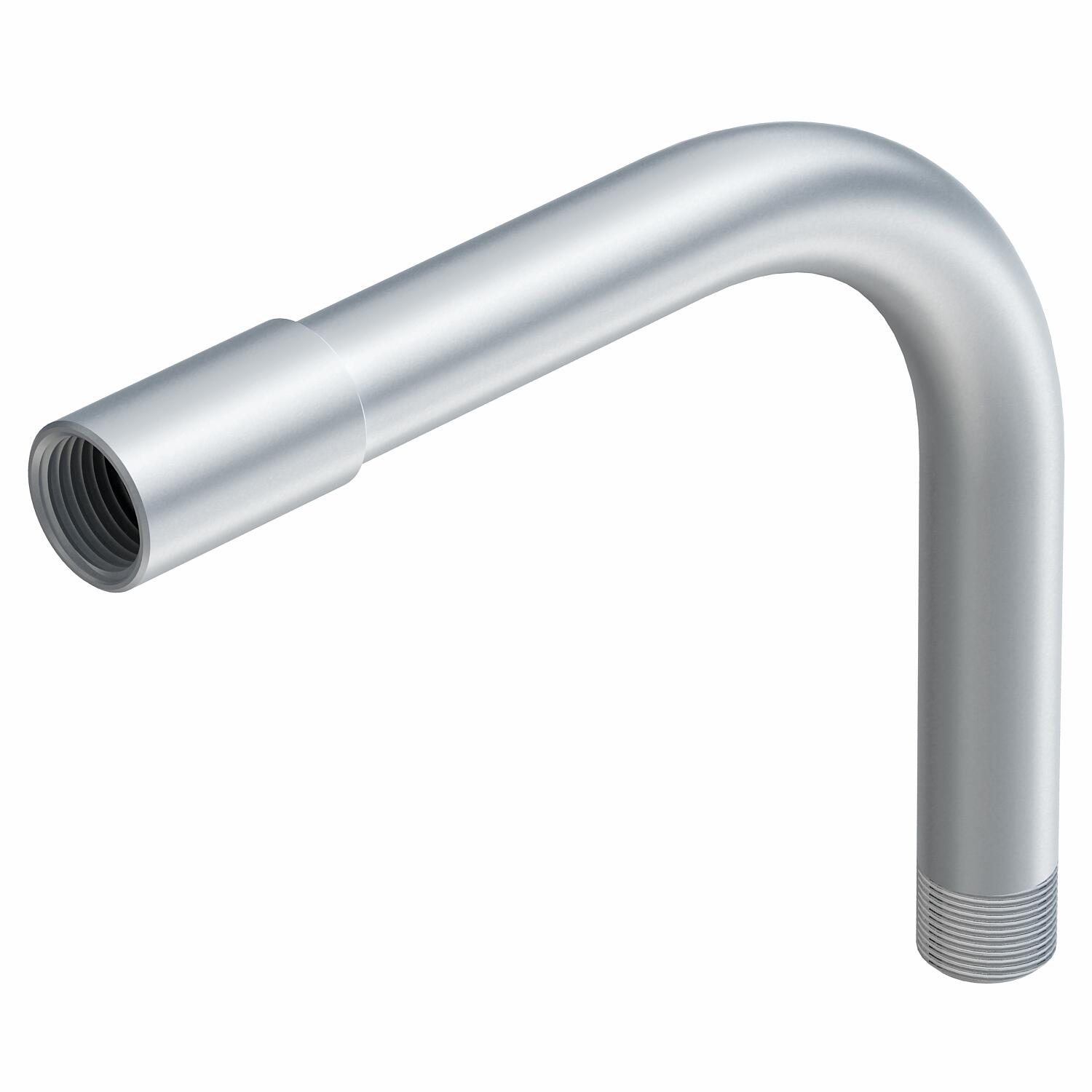

Aluminium pipe bend, with thread
Item no. 2046047 | EAN 4012195926238
- Product description
-
Product description90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
-
- Technical data
-
Technical data
Angle of the bend 90 ° Brushed surface no Dimension M50x1,5 Dimension A 128 mm Dimension B 358 mm Dimension D 50 mm Dimension l 25 mm Dimension m (mm) M50 Dimension R 205 mm Dimension t 2,1 mm Flexible no For nominal pipe diameter 50 mm Halogen-free no Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Polished surface no Thread M50x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBM50W ALU / 2046047 , 0.19MB , pdfREACH Declaration of conformity SBM50W ALU / 2046047 , 0.12MB , pdfRoHS Declaration of conformity SBM50W ALU / 2046047 , 0.12MB , pdf
