Aluminium pipe bend, with thread
Item no. 2046046 | EAN 4012195926221
- Product description
-

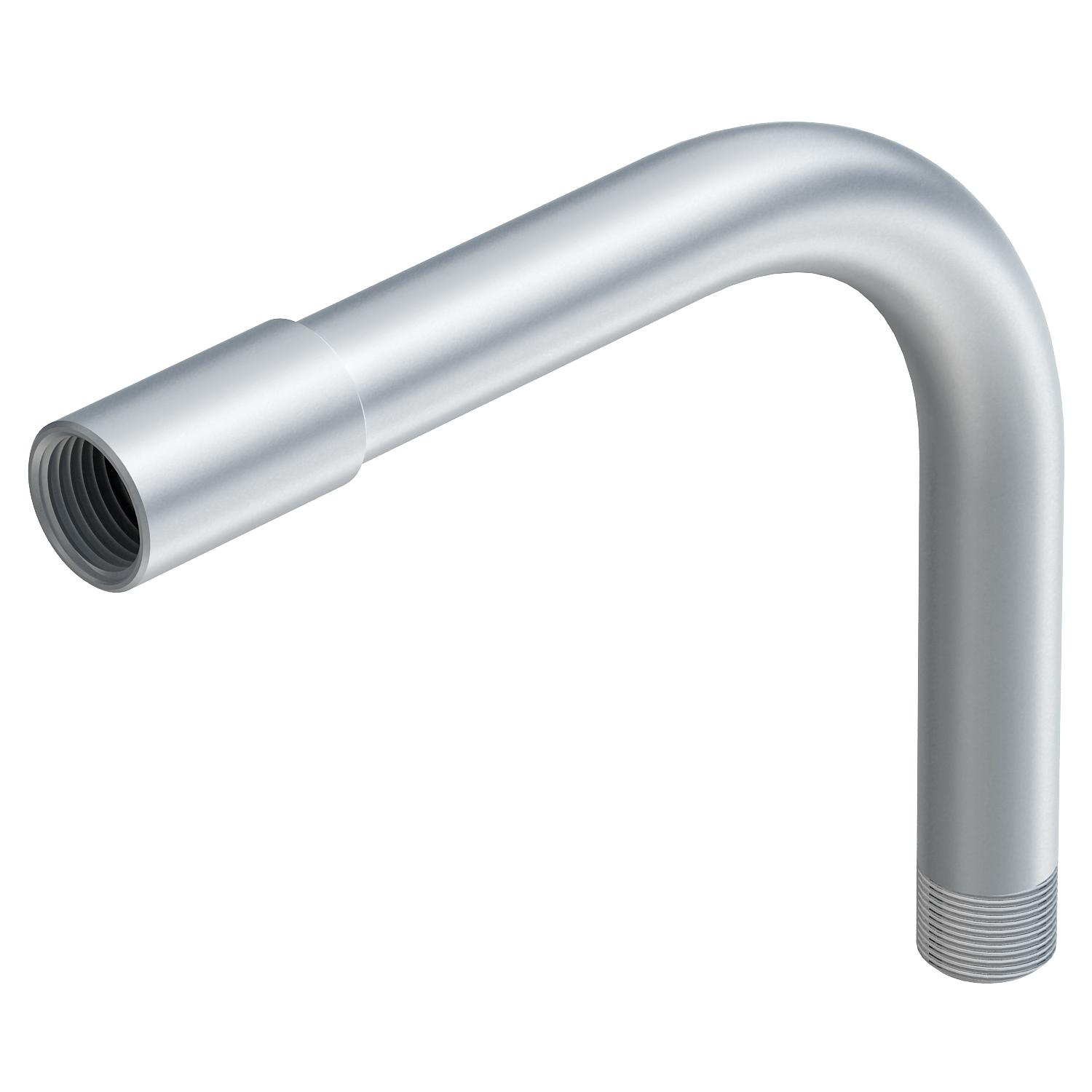

Product description90° bend for electrical installation pipes according to EN 61386-1 with threaded ends to DIN EN 60423. With burr-free inner wall.
One connection sleeve is already screwed onto each pipe bend.
-
- Technical data
-
Technical data

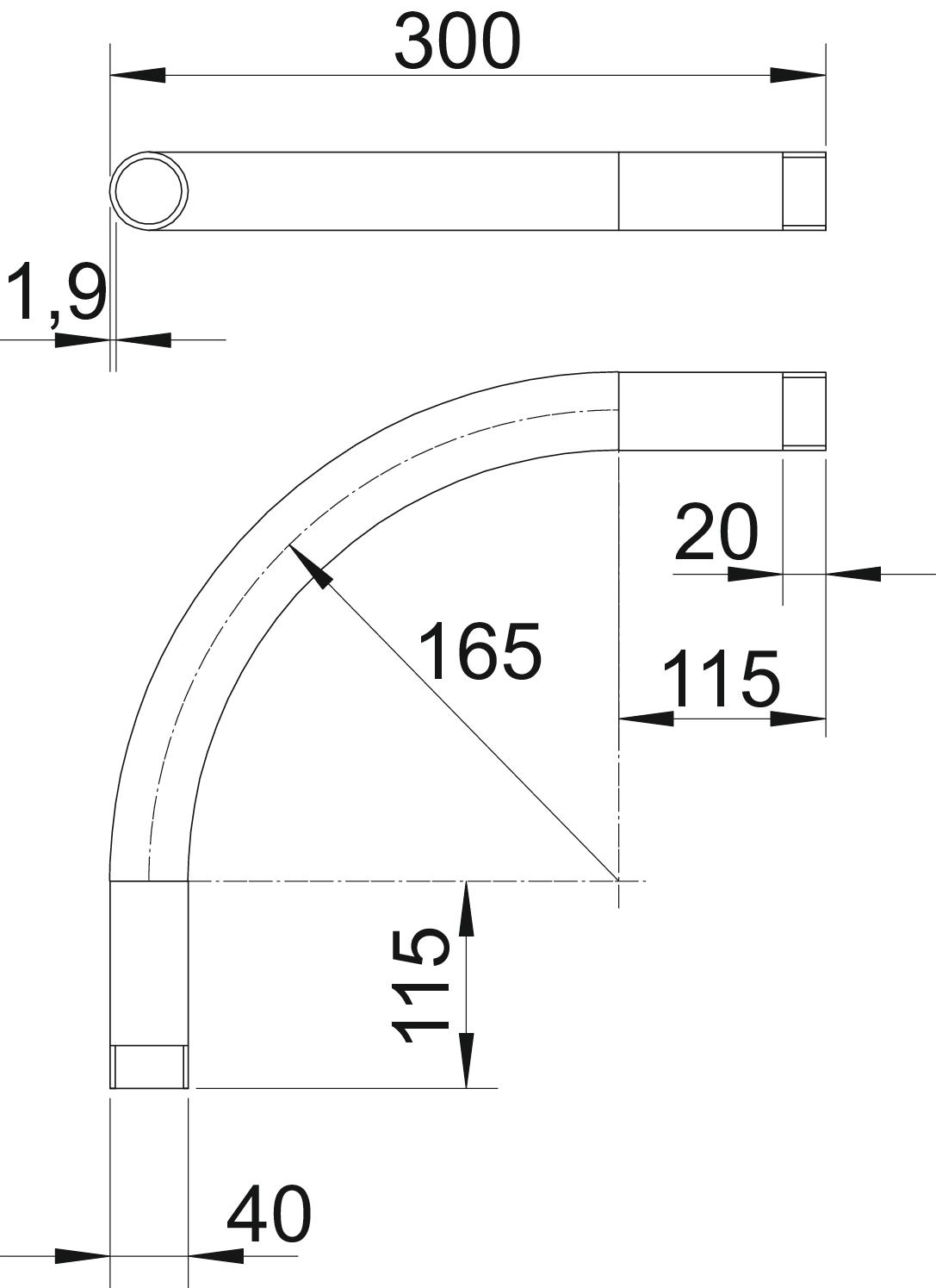

Angle of the bend 90 ° Brushed surface no Dimension M40x1,5 Dimension A 115 mm Dimension B 300 mm Dimension D 40 mm Dimension l 20 mm Dimension m (mm) M40 Dimension R 165 mm Dimension t 1,9 mm Flexible no For nominal pipe diameter 40 mm Halogen-free no Material Aluminium Permitted temperature range, max. 250 °C Permitted temperature range, min. -45 °C Polished surface no Thread M40x1,5 Two-part no Version for Thread With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SBM40W ALU / 2046046 , 0.19MB , pdfREACH Declaration of conformity SBM40W ALU / 2046046 , 0.12MB , pdfRoHS Declaration of conformity SBM40W ALU / 2046046 , 0.12MB , pdf
