Aluminium empty housing Mx16, powder coated 160 | 100 | 81 |

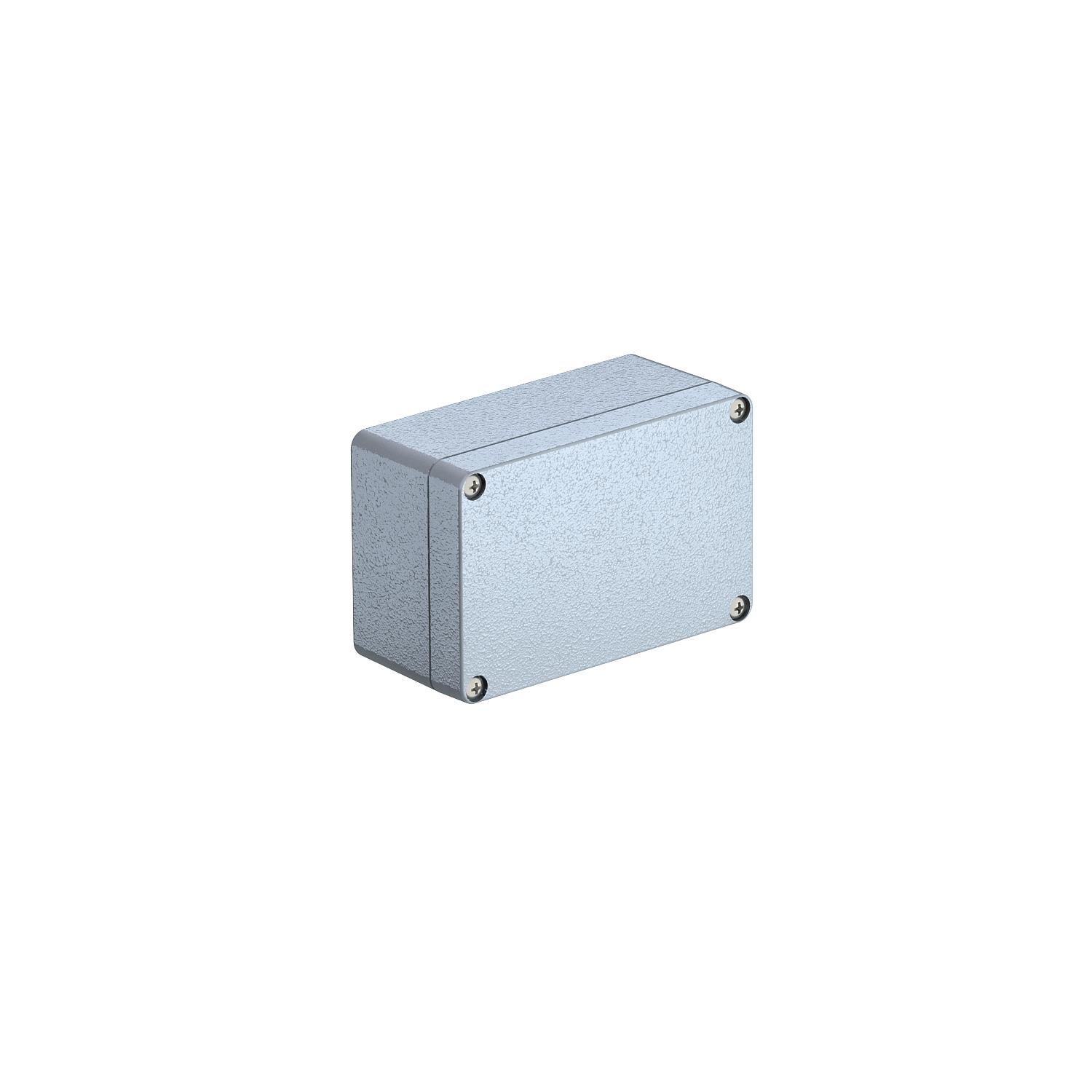

Aluminium empty housing Mx16, powder coated

Item no. 2011316 | EAN 4012196030828

Item no. / Types

Length

Width

Height

Product description

Product description

Robust aluminium empty housing for mechanical engineering and automation technology.

The OBO Mx series’ excellent mechanical and thermal features make it most suitable for extreme demands in many different areas. It is therefore also best suited for applications in industry, ports and shipbuilding, as well as in the agricultural sector.

The products protect the electrical installation against high-grade strains. They withstand both extreme cold and heat as well as vandalism and impact on roads, railways or in tunnels.

With an IP66 protection class, they are optimally protected against the intrusion of dust and water.

The aluminium housings are powder-coated (RAL 7001) and are delivered with a cover including stainless steel screws, a seal and two or four earthing screws.
Temperature: -40°C to +125°C

Technical data

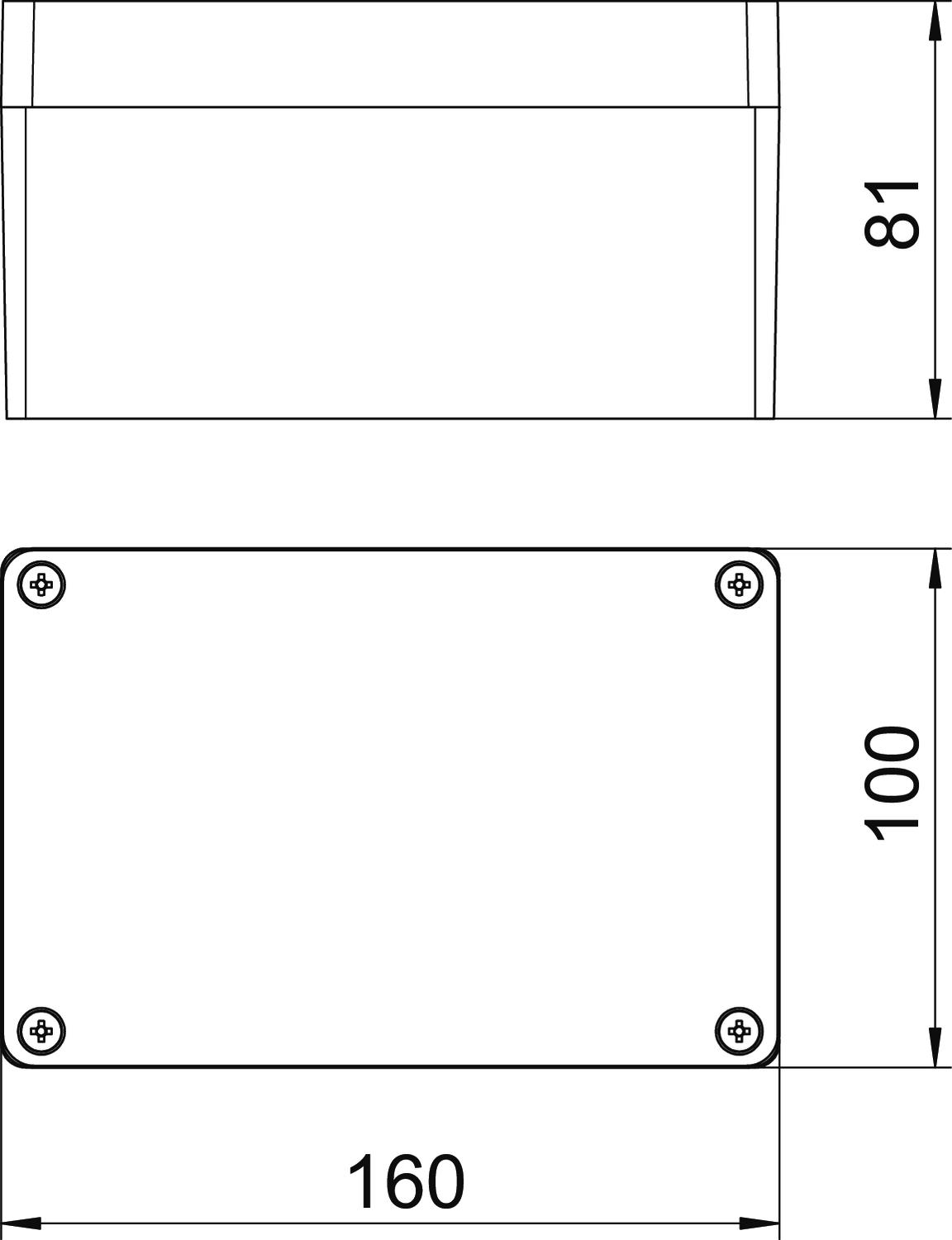

Dimensions

Clear internal dimensions	117x90x74.5 mm
Colour	Silver grey; RAL 7001
Cover fastening	Screwed
Dimension	160x100x81
Extension option	yes
Height	81 mm
Length	160 mm
Material	Cast aluminium
Permitted temperature range, max.	125 °C
Permitted temperature range, min.	-40 °C

Protection rating	IP66
Shape	Rectangular
Suitable for lightning protection	no
Suitable for outdoor use	yes
Surface	Powder-coated
Version, small distributor cover	Closed
Weatherproof	yes
Width	100 mm
with lid	yes
With mounting plate	no

All types

All types

Types	Length	Width	Height	Item no.	Quantity	SSU
Mx 060503 SGR	64 mm	58 mm	34 mm	2011304	piece	1 piece
Mx 080705 SGR	80 mm	75 mm	57 mm	2011308	piece	1 piece
Mx 120805 SGR	125 mm	80 mm	57 mm	2011312	piece	1 piece
Mx 161008 SGR	160 mm	100 mm	81 mm	2011316	piece	1 piece
Mx 161609 SGR	160 mm	160 mm	90 mm	2011320	piece	1 piece
Mx 170805 SGR	175 mm	80 mm	57 mm	2011324	piece	1 piece
Mx 261609 SGR	260 mm	160 mm	90 mm	2011328	piece	1 piece
Mx 361609 SGR	360 mm	160 mm	91 mm	2011332	piece	1 piece
