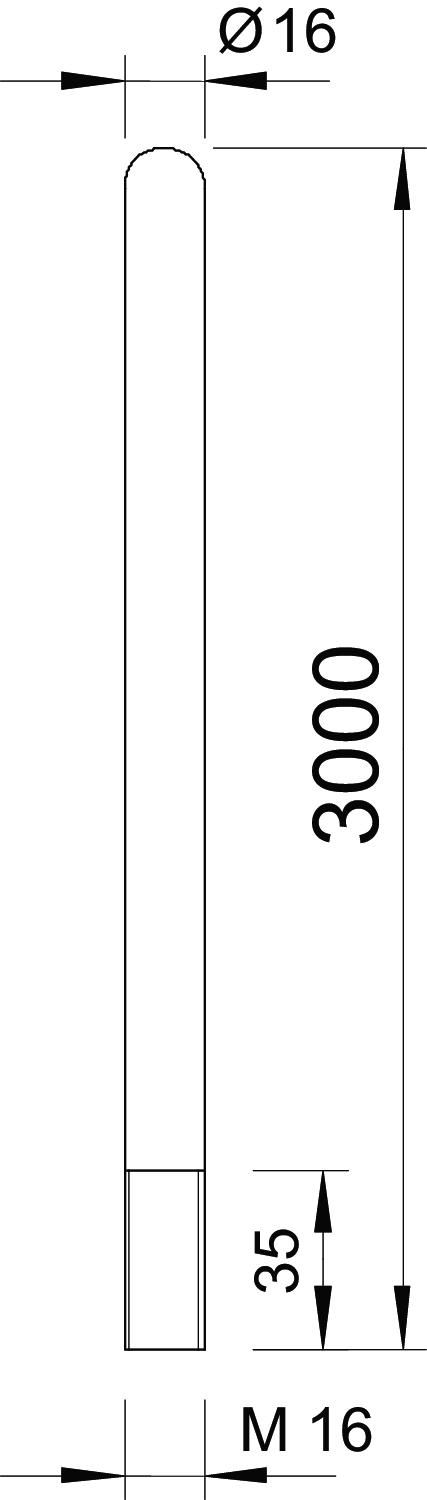

Air-termination rod, one end rounded, M16 thread 3000 | 16

Air-termination rod, one end rounded, M16 thread

Item no. 5401879 | EAN 4012195902119

Item no. / Types

Length

Nominal size Ø	16 mm

Product description

Product description

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• From a free length of > 2.5 m, an additional fastening, e.g. insulated
spacer is recommended
• Ø 16 mm, aluminium
• For stand system with M16 internal thread

Technical data

Technical data

Connection	Round conductor
Dimension	3000mm
Dimension L	3000 mm
High voltage-resistant, insulated version	no

Length	3000 mm
Material	Aluminium
Nominal size Ø	16 mm
Version for	Air-termination rod with thread

All types

All types

Types	Length	Nominal size Ø	Item no.	Quantity	SSU
101 ALU-1000	1000 mm	16 mm	5401771	piece	1 piece
101 ALU-1500	1500 mm	16 mm	5401801	piece	1 piece
101 ALU-2000	2000 mm	16 mm	5401836	piece	1 piece
101 ALU-2500	2500 mm	16 mm	5401852	piece	1 piece
101 ALU-3000	3000 mm	16 mm	5401879	piece	1 piece
