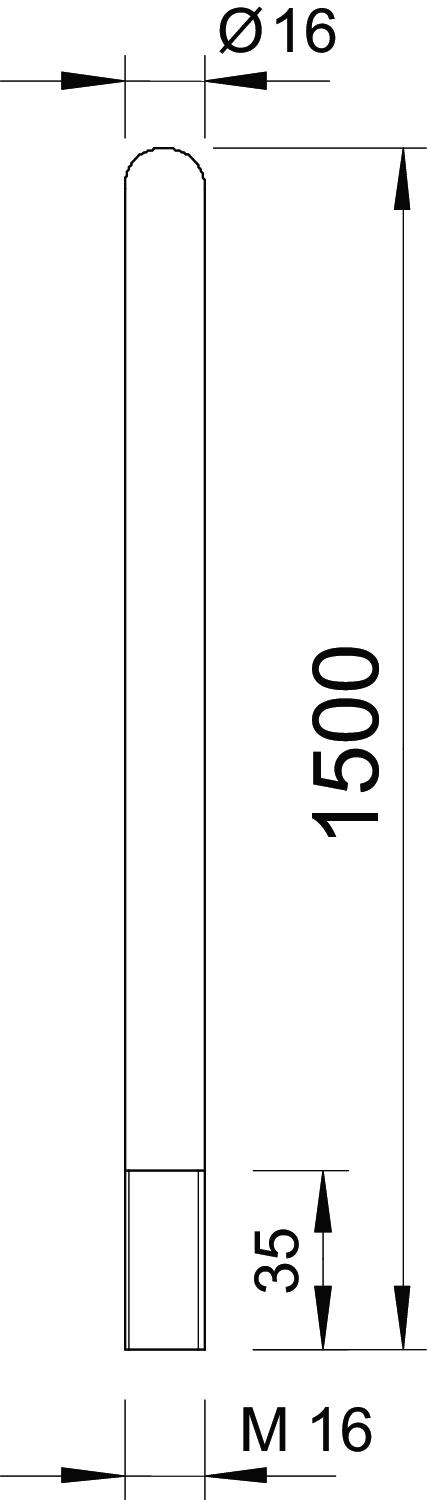

Air-termination rod, one end rounded, M16 thread
Item no. 5401801 | EAN 4012195427810
- Product description
-
Product description• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• From a free length of > 2.5 m, an additional fastening, e.g. insulated
spacer is recommended
• Ø 16 mm, aluminium
• For stand system with M16 internal thread
- Technical data
-
Technical data
Connection Round conductor Dimension 1500mm Dimension L 1500 mm High voltage-resistant, insulated version no Length 1500 mm Material Aluminium Nominal size Ø 16 mm Version for Air-termination rod with thread - All types
-
System accessories
Products Types Item no. Quantity SSU
Stand 6.9 kg with female thread
101 ST 5402891 4 piece
Concrete base min. 16 kg with female thread
101 B2-16 M16 5402958 1 piece - Downloads
-
Data sheet 101 ALU-1500 / 5401801 , 0.17MB , pdfEU declaration of conformity 101 ALU-1500 / 5401801 , 0.06MB , pdf
