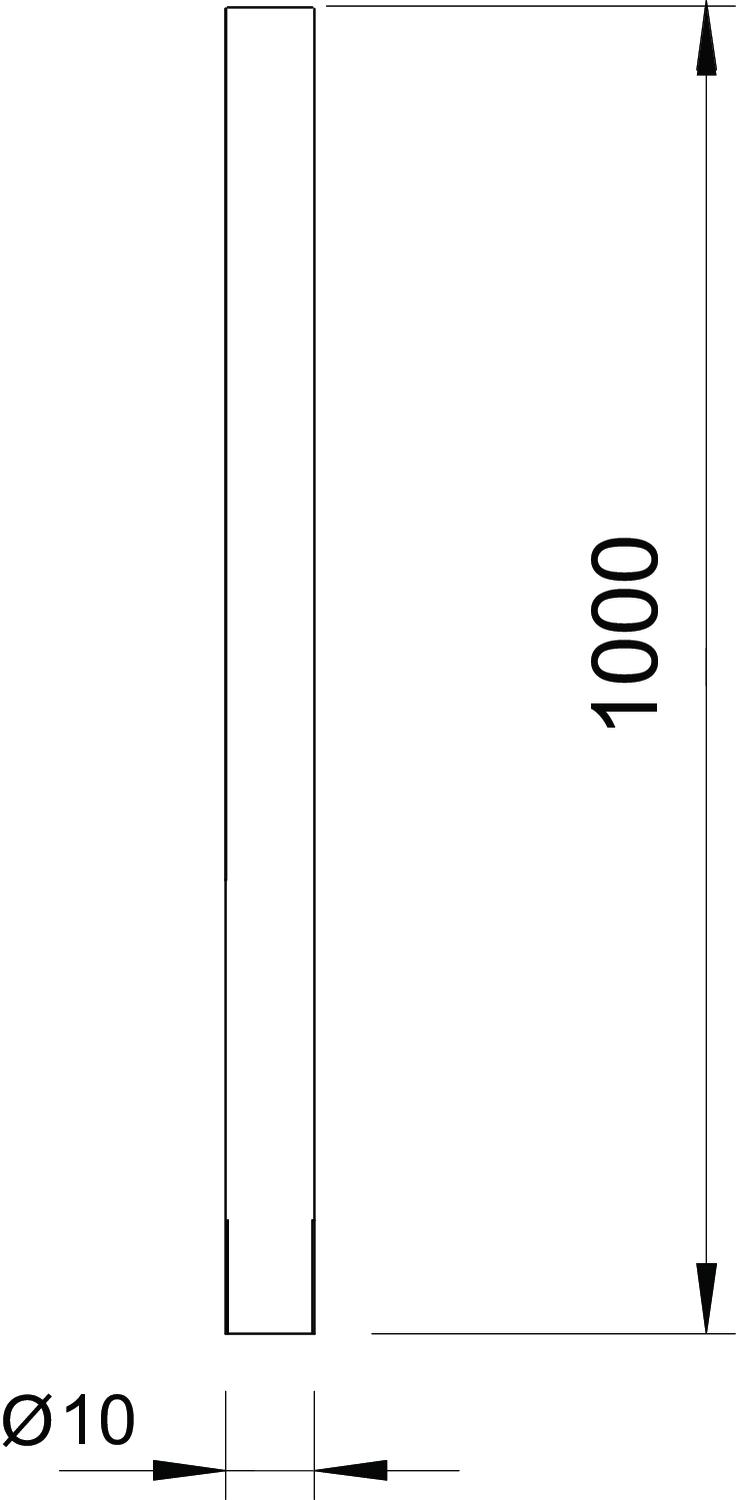

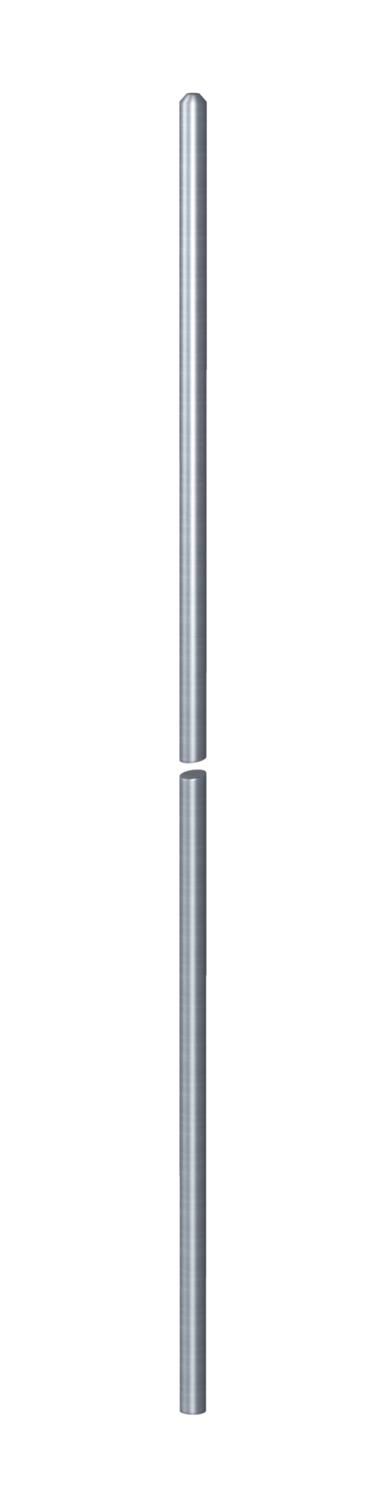

Air-termination rod for FangFix-Junior

Item no. / Types	5401970 / 101 J1000

Length	1000 mm

Nominal size Ø	10 mm

Product description

Product description

• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4

• Ø 10 mm, aluminium

• Without thread

• Suitable for use in FangFix-Junior

Technical data

Connection	Round conductor
Dimension	1000mm
High voltage-resistant, insulated version	no
Length	1000 mm

All types

Types	Length	Nominal size Ø	Item no.	Quantity	SSU
101 J1000	1000 mm	10 mm	5401970	piece	10 piece

Accessories

Products	Types	Item no.	Quantity	SSU

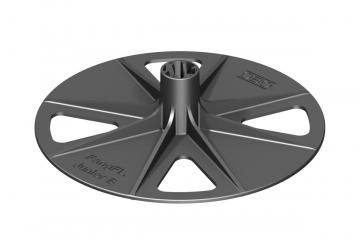

Base for FangFix Junior	F-FIX-BASIS	5403324	piece	10 piece

Downloads

Data sheet 101 J1000 / 5401970 , 0.13MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

101 J1000 / 5401970
