Air-termination/earth entry rod with connection tabs and connector
Item no. 5402158 | EAN 4012195428176
- Product description
-
Product description
• 1 attaching hole Ø 12 mm
• With pre-mounted conductor for Rd 8-10
• One end rounded
- Technical data
-
Technical data

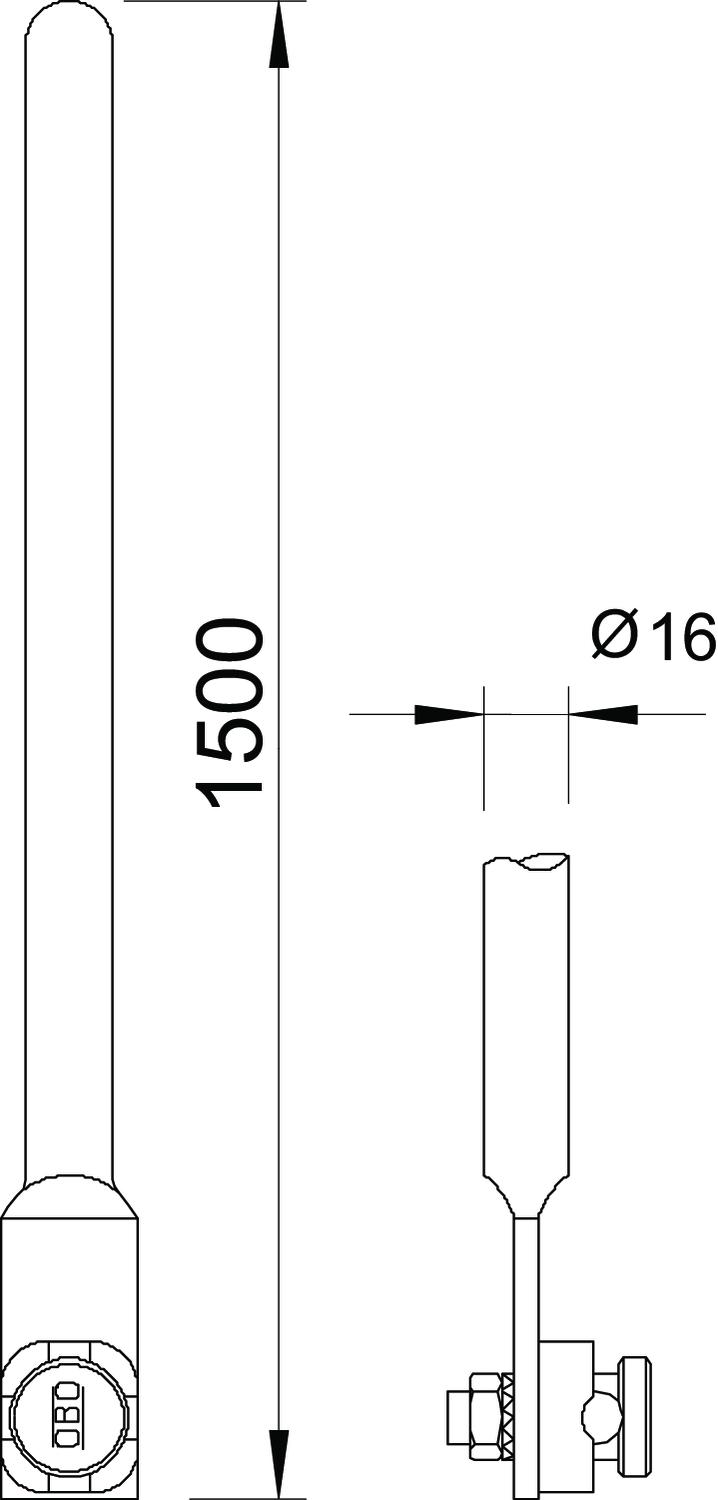

Connection Round conductor Dimension 1500mm High voltage-resistant, insulated version no Length 1500 mm Material Steel Nominal size Ø 16 mm Surface Hot-dip galvanised Version for Air-termination rod - All types
- Downloads
-
Data sheet 101 G1500 / 5402158 , 0.14MB , pdfREACH Declaration of conformity 101 G1500 / 5402158 , 0.12MB , pdfRoHS Declaration of conformity 101 G1500 / 5402158 , 0.13MB , pdf
