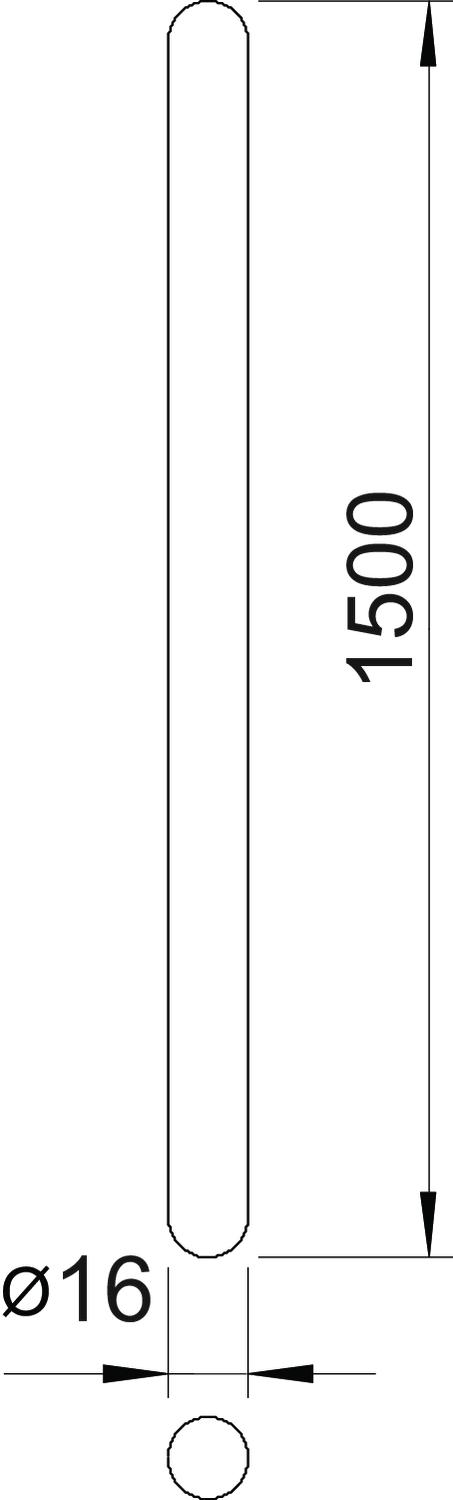

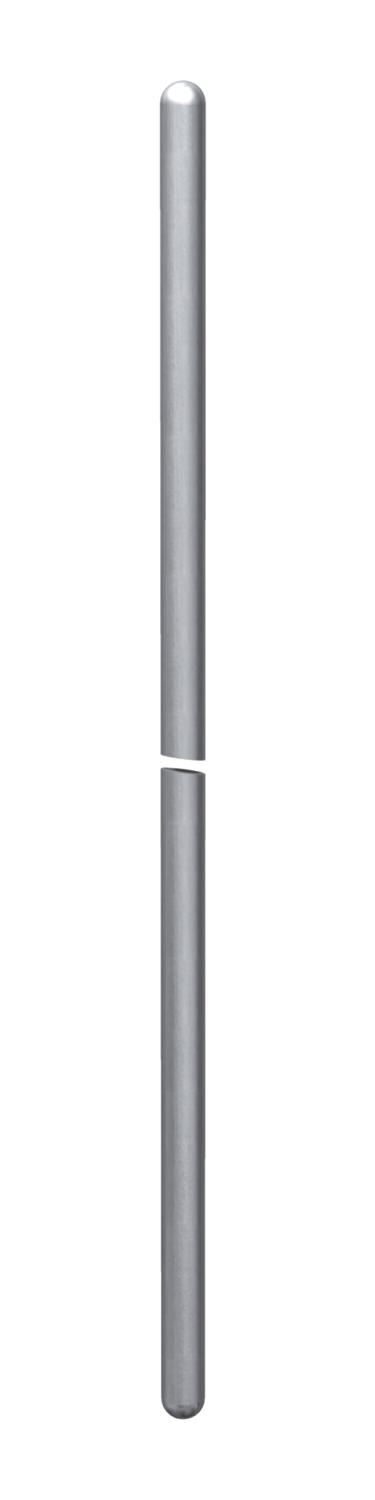

Air-termination/earth entry rod, rounded-off on both ends FT

Item no. / Types	5400155 / 101 A-1500

Length	1500 mm

Nominal size Ø	16 mm

Product description

Product description

• Full material Ø 16 mm
• Both ends rounded

Technical data

Connection	Round conductor
Dimension	1500mm
High voltage-resistant, insulated version	no
Material	Steel

Dimension L	1500 mm

Length	1500 mm

All types

Types	Length	Nominal size Ø	Item no.	Quantity	SSU
101 A-1500	1500 mm	16 mm	5400155	piece	1 piece

Accessories

Products	Types	Item no.	Quantity	SSU

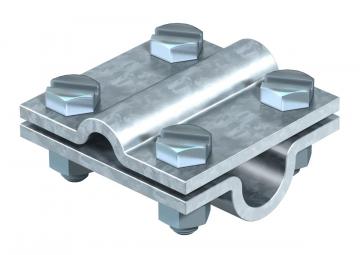

Cross-connector for Rd 8−10 x Rd 16	253 10X16	5312809	piece	25 piece

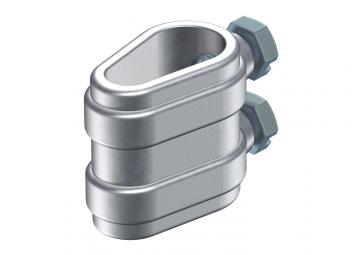

Separating piece, open	223 O DIN ZN	5335140	piece	20 piece

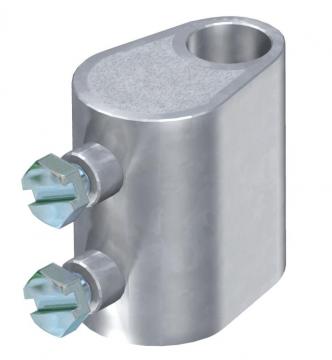

Separating piece, closed	223 DIN ZN	5335205	piece	20 piece

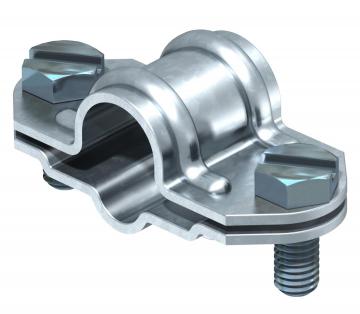

Universal separating piece FT	226 8-10	5336007	piece	20 piece
