Air-termination/earth entry rod, rounded-off on both ends CU 1500 | 16
morepic-1 morepic-2 video-1

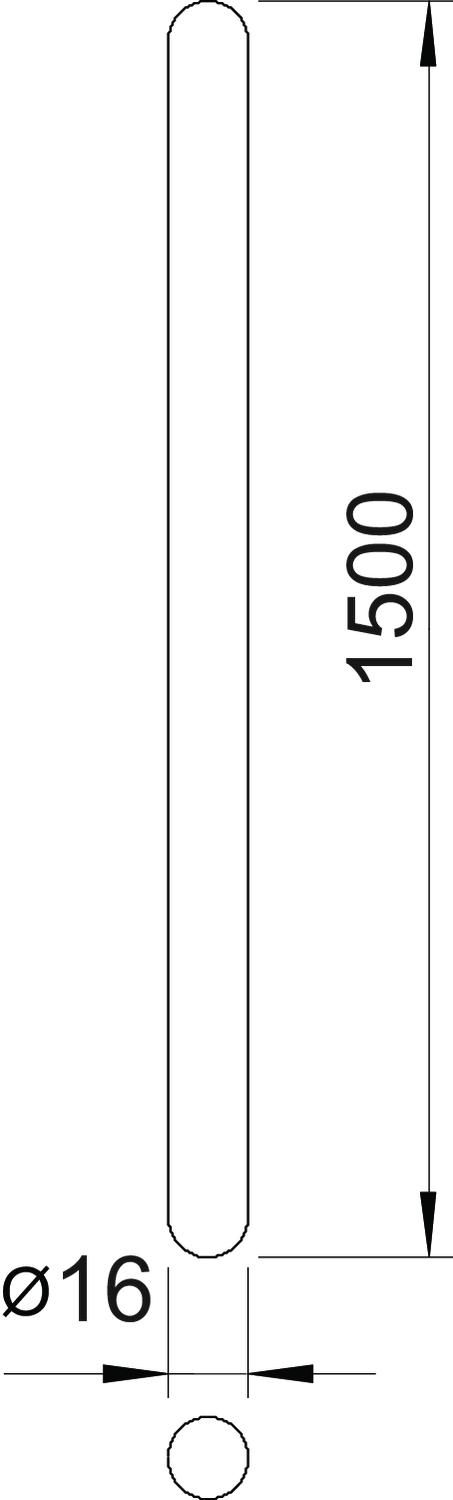

Air-termination/earth entry rod, rounded-off on both ends CU

Item no. 5400627 | EAN 4012195629054

5400627 / 101 A-CU
1500 mm
16 mm
Product description
Product description
• Full material Ø 16 mm
• Both ends rounded

Technical data

Technical data

Connection Round conductor
Dimension 1500mm
Dimension L 1500 mm
High voltage-resistant, insulated version no
Length 1500 mm
Material Copper
Nominal size Ø 16 mm
Version for Air-termination rod
All types

All types

Types Length Nominal size Ø Item no. Quantity SSU
101 A-CU 1500 mm 16 mm 5400627
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU

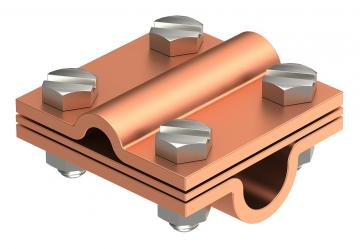

Cross-connector with intermediate plate for Rd 8−10 x Rd 16 Cu Cross-connector with intermediate plate for Rd 8−10 x Rd 16 Cu 252 8-10X16 CU 5312442
10 piece

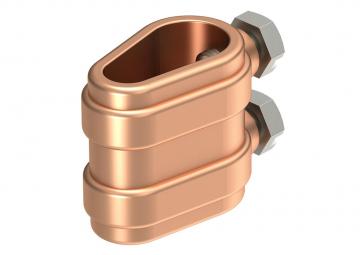

Separating piece, open, Cu Separating piece, open, Cu 223 O DIN MS 5335167
20 piece

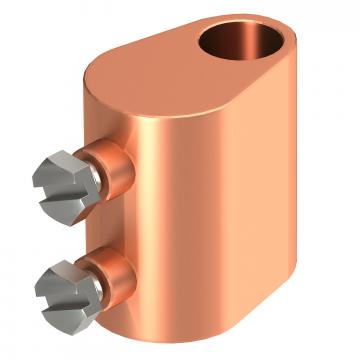

Separating piece, closed, Cu Separating piece, closed, Cu 223 DIN MS 5335256
10 piece
Downloads

Download

Download
Download

REACH Declaration of conformity 101 A-CU / 5400627 , 0.12MB , pdf
Download
RoHS Declaration of conformity 101 A-CU / 5400627 , 0.12MB , pdf
Download

101 A-CU / 5400627
